555 Med

Validatable Continuous Vertical Band Sealer

The PAC 555 Med Validatable Vertical Band Sealer is a continuous vertical band sealer intended for medical and other critical packaging applications which require precise control of all sealing process parameters. The 555 Med is a fully validatable medical band sealer and is designed to comply with the guidelines of ISO 11607 standards. External verification ports allow for verification and calibration of internal controllers for ease of IQ/OQ process. The 555 Med features PAC’s real-time monitoring system with alarm lockout function to prevent operation when there is a deviation from validated settings.

Read More

Specifications

Model555 Band Sealer
Seal Width7/16"
Max Seal Temp480º F
Max Seal Speed400 inches/min
Heater Bar Length6"
Cooling Bar Length4.25"
Electrical120V
Dimensions (WxDxH)58" x 24" x 62"
Weight280 lbs
Warranty3 year limited
Country of ManufactureNetherlands

Features

Set-Up Benefits

  • Quickly dial in sealing parameters and conduct validation

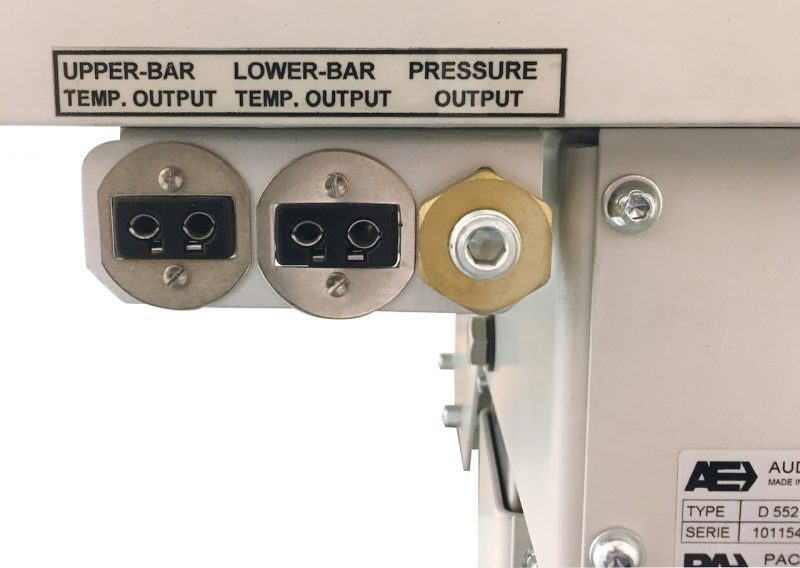

  • Easy access to ports for machine calibration and validation

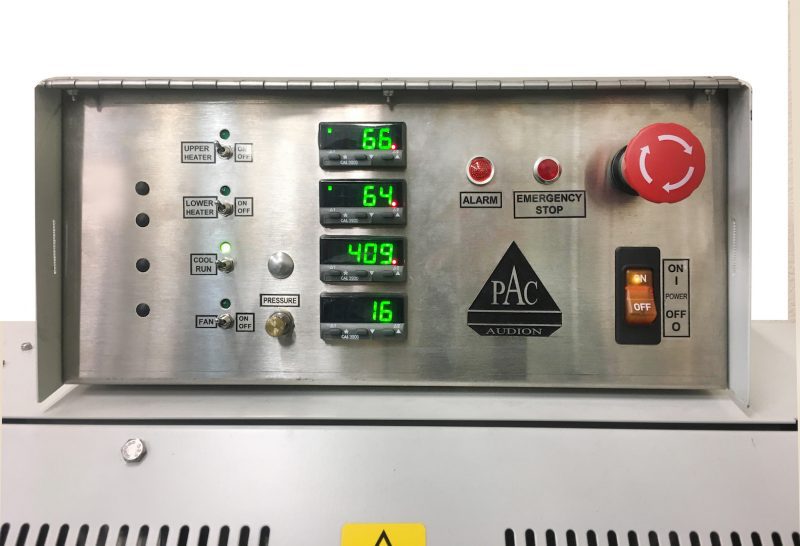

  • Lockable control box cover prevents tampering with settings
  • Adjustable seal pressure on pressure roller as well as heating and cooling jaws
  • Seal speed up to 400 in/min
  • Digital temperature controller with max temperature of 350º F

User Benefits

  • Straightforward user controls help assure excellent results
  • Adjustable sealing head angle for added versatility
  • Lighted alarm and auto-gate feature pause sealer operation if any seal parameters drift out of range

Operating Benefits

  • Precise controls for every function
  • Requires minimal maintenance
  • Ready light indicates operation within the set parameters
  • 54″ Motorized Conveyor (22lb max weight of product on conveyor)
  • Set seal position from 31” – 44” from the floor
  • Stainless steel frame and cabinet
  • Locking casters add mobility

Safety Benefits

  • Cool run shutdown to lengthen the life of the seal belts
  • Adjustable height for improved ergonomics and ease of use
  • Emergency stop button ensures quick machine shutdown

Options

Inkjet Printer
Hot Stamp Printer
Embosser
