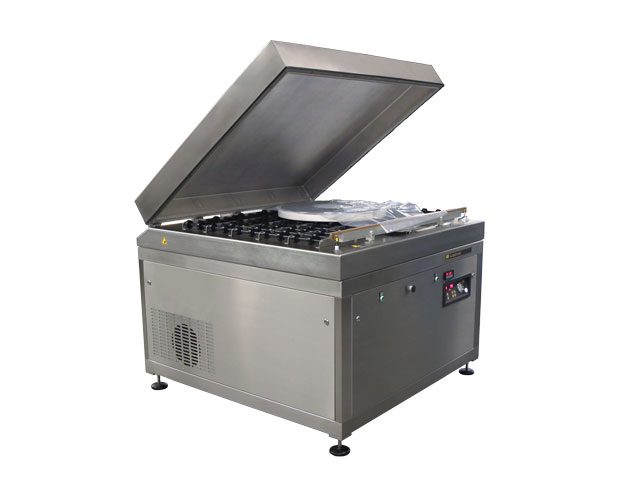

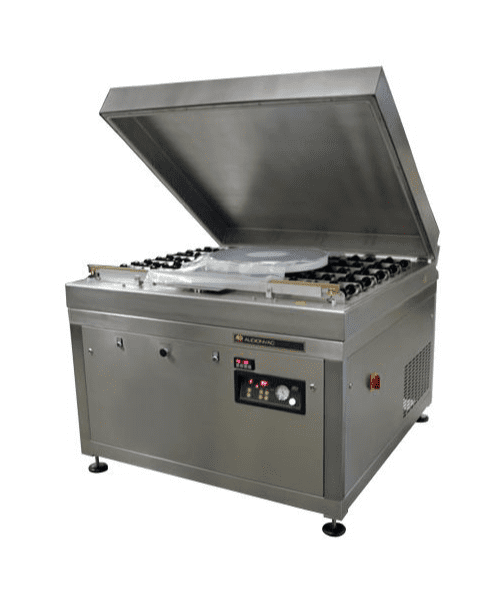

VMS 1403 Extra Large Vertical

Audionvac VMS Extra Large Vertical Chamber Vacuum Sealer

An extra large chamber vacuum sealer designed to package heavy, flat products. The chamber bed includes a roller conveyor to easily transition product through the chamber. The sealing system includes temperature control to seal heavy foils, kraft paper, poly-nylons, and mil-spec bags to ensure consistent quality seals. Push-button pneumatic lid operation further reduces operator interaction and fatigue. The VMS 1403 offers the highest levels of vacuum and is ideal for preservation and protection of products. Touchpad controls are easy to navigate and allow for storage of 9 programs.



ModelVMS 1403
Seal Type (in)5/16” Flat Seal
# of Seal Bars1
Seal Bar ConfigurationFront Sealing Bar
Seal Length (in)51” Long
Chamber Dimensions (in)55” Wide x 51” Deep
Chamber Height (in)5.5”
Chamber TypeStainless Steel
Lid TypeStainless Steel
Vacuum PumpBusch 300 (12 HP)
Electrical230V 3Ph 60Hz
Air80-100 psi
Dimensions (W x D x H in) 60" x 59" x 55"


User Benefits

  • Easy to clean smooth, stainless steel chamber and lid

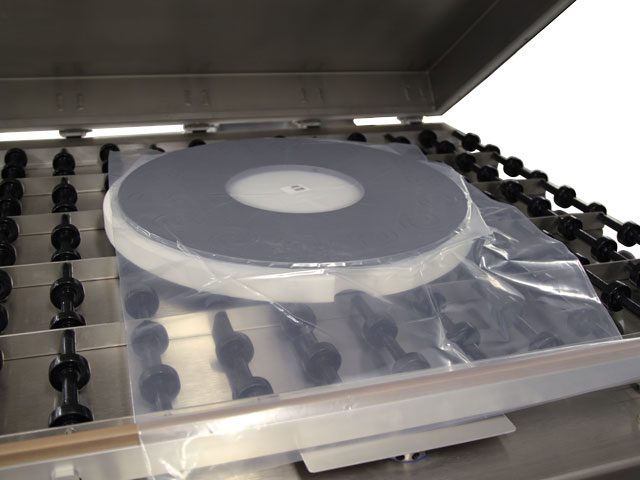

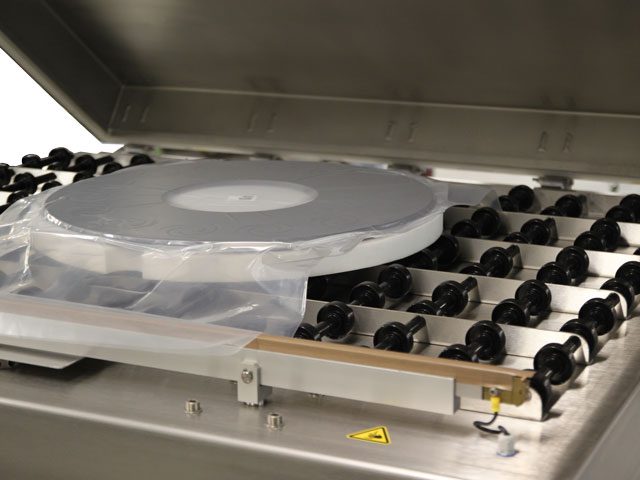

  • Roller conveyor in chamber bed to transition heavy products (non-motorized)
  • Pneumatic lid with push button activation
  • Super dependable with an excellent return on investment
  • Industry-leading 3 year limited warranty

Set-up Benefits

  • Logical, user friendly controls with 9 program job storage
  • Easy to read display
  • Temperature controlled seal to accommodate heavy, thick, or gusseted bags

 Operating Benefits

  • Use with pre-made vacuum bags
  • Powerful, dependable vacuum pumps
  • Digital controls for fast adjustment
  • Very low residual oxygen level
  • Soft air return to protect delicate products

Safety Benefits

  • Designed to meet CE requirements
  • Stop button to interrupt the cycle at any point
  • Digital vacuum pump maintenance program


High Lid (8″ Clearance)

Vacuum Level Sensor

3/16″ Bi-Active Seal
