Clamco 120C & 240C Combo

Products > Shrink Wrapping Machines > Clamco 120C & 240C Combo

Shrink Wrap Combo Machines Deliver Time Tested Performance

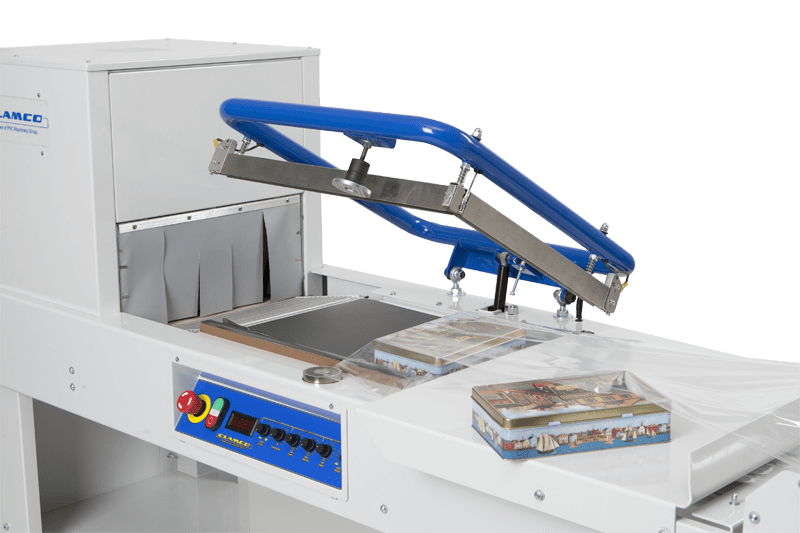

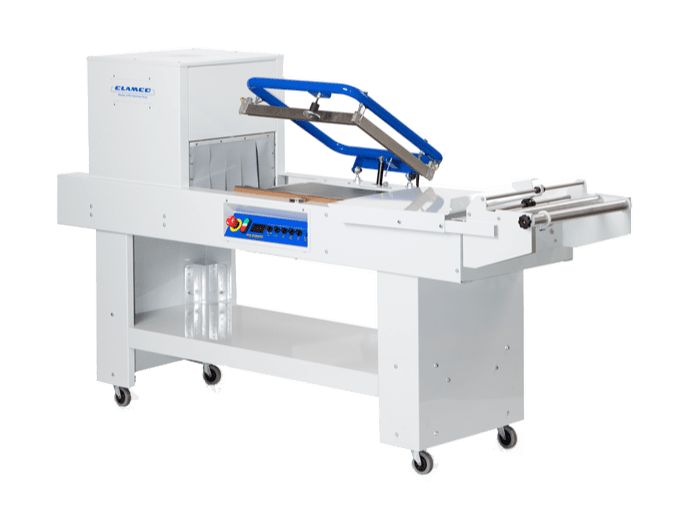

The Clamco 120C and the upgraded 240C Combo Shrink Wrap System combines an L-bar sealer with a shrink tunnel in one robust, compact unit. The Clamco 120C refers to 120V and 2,100 Watts, which is an excellent choice for an entry-level machine. If you require a more robust system, the Clamco 240C is a 220V machine with a full 4,000 Watts of tunnel power and a motorized Power Take-away Conveyor. Each Combo System shares a common heavy duty frame and base for unrivaled durability. Systems are engineered for quick setup, alignment, and product transfer between the sealer and the tunnel. The sturdy design of the Clamco 120C/240C Combo System provides the framework for greater productivity and ensures consistent seals. The use of integrated, application specific controls allows for easy and fast set-up and will provide years of trouble free operation.

More and Better Standard Features

The Clamco 120C/240C includes standard features like heavy duty package tray and film cradle with pinwheel perforator, the largest shrink tunnel in its class, and 11-gauge steel construction throughout. Increase packaging efficiency with a Combo 240C semi-automatic shrink packaging system equipped with our Power Take-away option.

Clamco 120C & 240C Combo Shrink Wrap System combines an L-Bar Sealer with a Shrink Tunnel

Vintage Stock repackages with Clamco 120C & 240C Combo Shrink Machines—a PAC customer story

Clamco 120C & 240C Combo - Shrink Wrap Machine

120 (220) Combo Shrink System Tape Packaging Demo by Clamco

Specifications

Model	120C Combo	240C Combo
Seal length (end)	16"	16"
Seal length (side)	20"	20"
Film width (max)	20" Centerfold	20" Centerfold
Tunnel opening width	16"	16"
Tunnel opening height	8"	8"
Tunnel inside height	8"	8"
Tunnel inside length	20"	20"
Tunnel power (watts)	2100 Watts	4000 Watts
Electrical Requirements	120V, 20 amps, 50/60 Hz	220V, 25 amps, 50/60 Hz
Overall Dimensions	90"L x 24"W x 52"H	90"L x 24"W x 52"H
Shipping weight (approx.)	635 lbs	635 lbs

Features

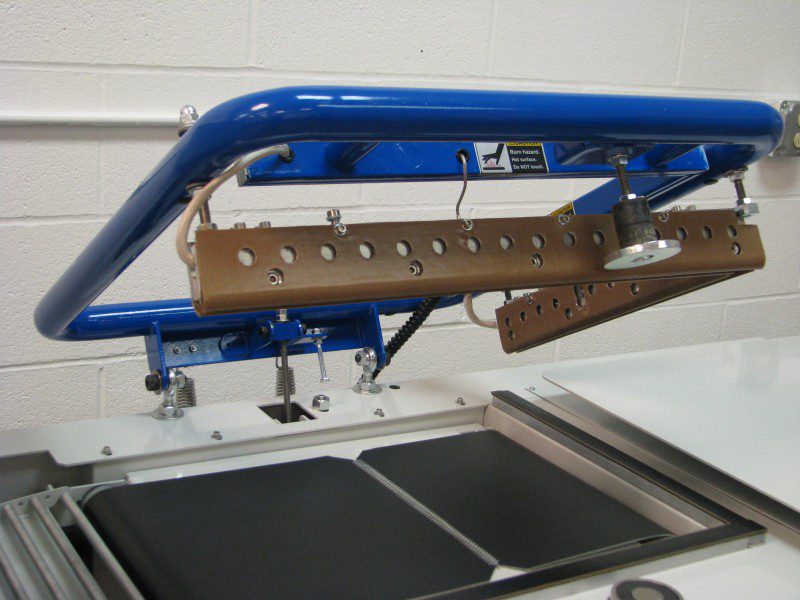

L-Bar Sealer Features

Seal Area 16″ x 20″ (406mm x 508mm)
Heavy duty seal arm bar
Heavy duty magnetic hold down to ensure consistent seal pressure with stainless steel film clamps
Quick height adjustment facilitates centering the seal on the product
Seal temperature and dwell control provides high seal repeatability
Microprocessor controlled heat cycle with automatic temperature compensation

Shrink Tunnel Features

Tunnel chamber size: 16″W x 20″L x 8″H
Unitized sealer/tunnel combination with console stand for excellent durability
Digitally controlled tunnel temperature for superior consistency
Heavy duty blower provides 360° air circulation for optimized performance
Tunnel conveyor features PTFE coated fiberglass mesh belt for greater bottom airflow
Adjustable airflow and variable tunnel conveyor speed to maximize shrink performance
Tunnel curtain design minimizes heat loss and maintains tunnel temperature consistency

Operating Features

Green Mode to slow down and conserve energy when not used for several minutes
User friendly operator controls for fast, easy and repeatable set up
Dwell control provides additional flexibility for utilizing a wide range of films
Film cradle can accommodate up to 20″ CF wide roll of film
Pinwheel perforator for rapid air escape that results in excellent shrink
Electrical: 120V, 20 amps, 50/60 Hz for 120 Combo/ 220V, 25 amps, 50/60 Hz for 240 Combo
120C delivers 2,100 watt tunnel heating power for many applications
240C with 4,000 watt tunnel heating power provides top performance
Variable-speed Power Take-away Conveyor to match operator speed (Option on 120C)
Adjustable package tray and film cradle with variable brake
Robust design with welded steel frame and heavy duty seal arm ensure durability

Safety Features

Automatic cool down timer and shut off for maximum component reliability
Designed to meet CE requirements
Locking casters for safe, stable operation
Emergency stop button

Options

2" Seal Bar Front Extension

Extends the seal bar two inches when a longer seal length is needed.

Operating Options

Power Take-away Conveyor for 120 Combo for faster paced environments
Exit Conveyor—allows packages to quickly roll away from the machine
Hot Knife with mushroom blades for sealing PVC and Polyethylene films (240 Combo only)
2″ Seal Bar Extension (22″ Long) gives the operator more room for longer packages
Trim Take-up Wheel neatly rewinds trim
Additional Film Perforation Kit for 120C/240C Combo ensures vented packages
Custom Compact Crate available for 120/240 Combo (multi purchase) reduces delivery costs
