Clamco 6800CS-HS Continuous Box Motion Side Sealer

High-Speed Continuous Motion Side Sealer

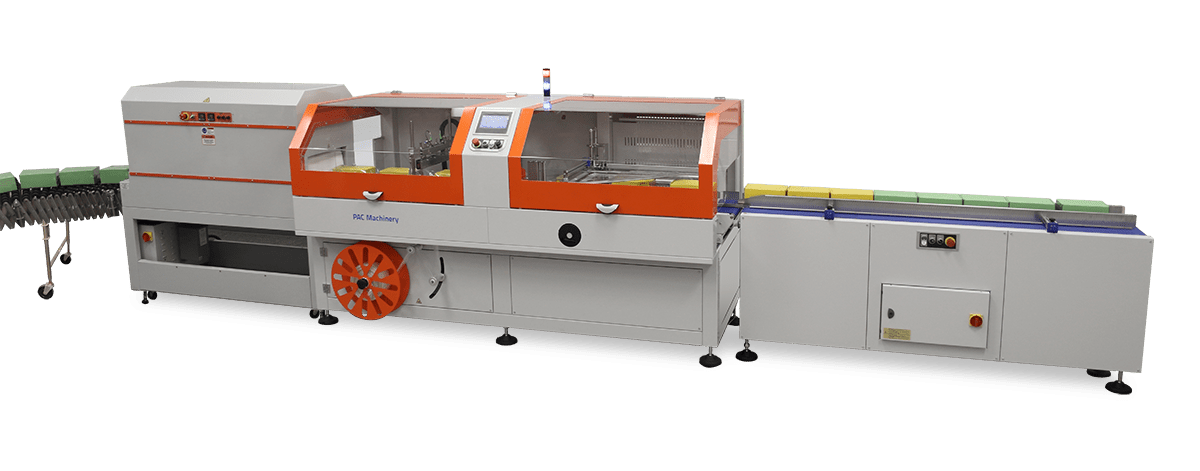

The Clamco 6800CS-HS is a high speed continuous motion automatic side sealer ideal for shrink wrapping applications. This all-electric machine provides a compelling combination of rapid operation and outstanding value. Combine the 6800CS HS with our Clamco Heavy Duty Extra Large Heat Shrink Tunnel which features extra length perfect for shrink wrap protection of products at higher speeds.

This automatic side sealer combines a hot knife end seal with an adjustable seal and trim knife. The automatic side sealer activates the seal and trim knife as the product travels past the cross seal, this eliminates the constraints of a fixed-length side seal, allowing for packaging of almost infinite length. In comparison to traditional automatic L-bar sealers, the 6800CS-HS automatic side sealer excels in accommodating products of varying lengths while maintaining an impressive speed.

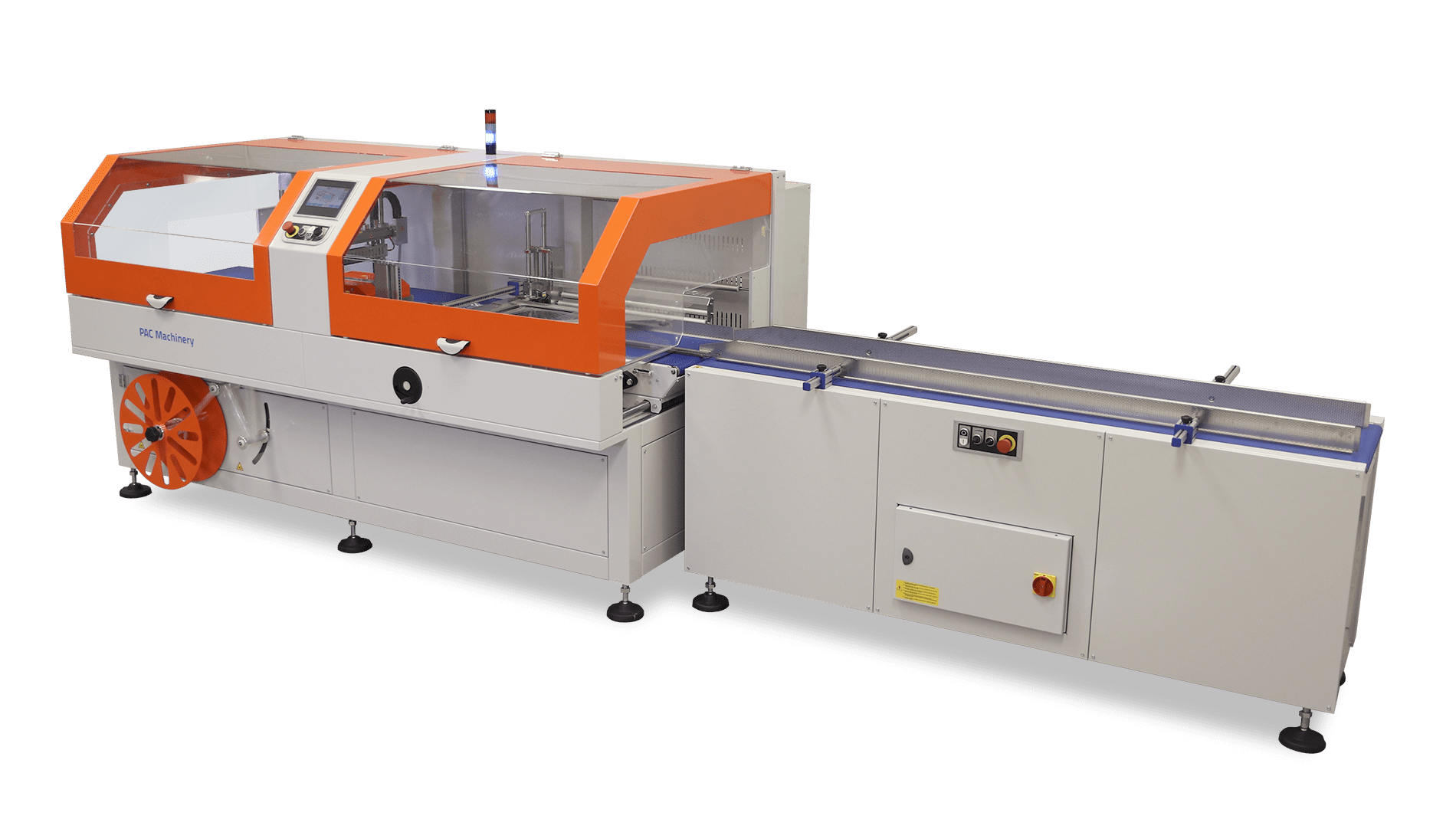

PAC Machinery offers a Synchronized Integrated Powered Infeed/Outfeed Conveyor perfectly suited to complement the high-speed capabilities of the 6800CS-HS. Opt for this comprehensive packaging system to seamlessly integrate into your packaging line, ensuring superior results throughout your packaging process.

Specifications

Model 6800CS-HS High Speed
Production capacity*up to 120 cycles/min
Conveyor speedup to 130 ft/min
Cross seal bar width20.5"
Product width (max)**16”
Product height (max)8"
Product length (max)unlimited
Film width (max)23.5" centerfold
Film roll diameter (max)13.75"
Electrical220V, 3Ph, 23 amp
AirNot required
Machine size110" L x 75" W x 65" H
Shipping weight2,150 lbs (crated)
Warranty2 years
*maximum speed dependent on product being packaged
**product width plus product height must be less than 17.75"

Features

Operating Features
  • Three belt design controlled by brushless servo motors.

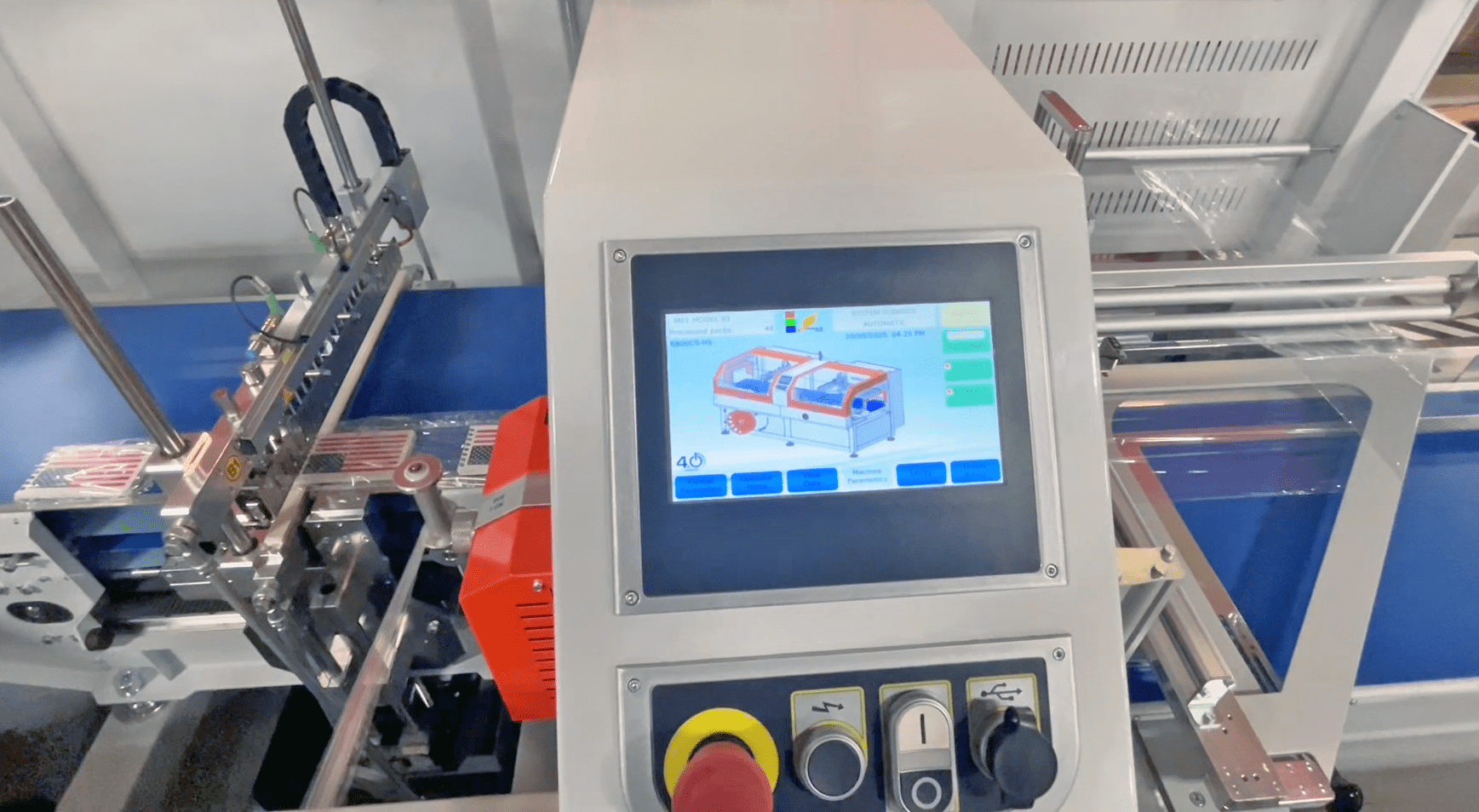

  • Easy to navigate 7” touchscreen interface.
  • Display of key packing statistics, including production rate and efficiency.
  • Continual monitoring of product length to detect packing errors.
  • Film-economizer wheels reduce scrap and improve final package appearance.

Sealing Features

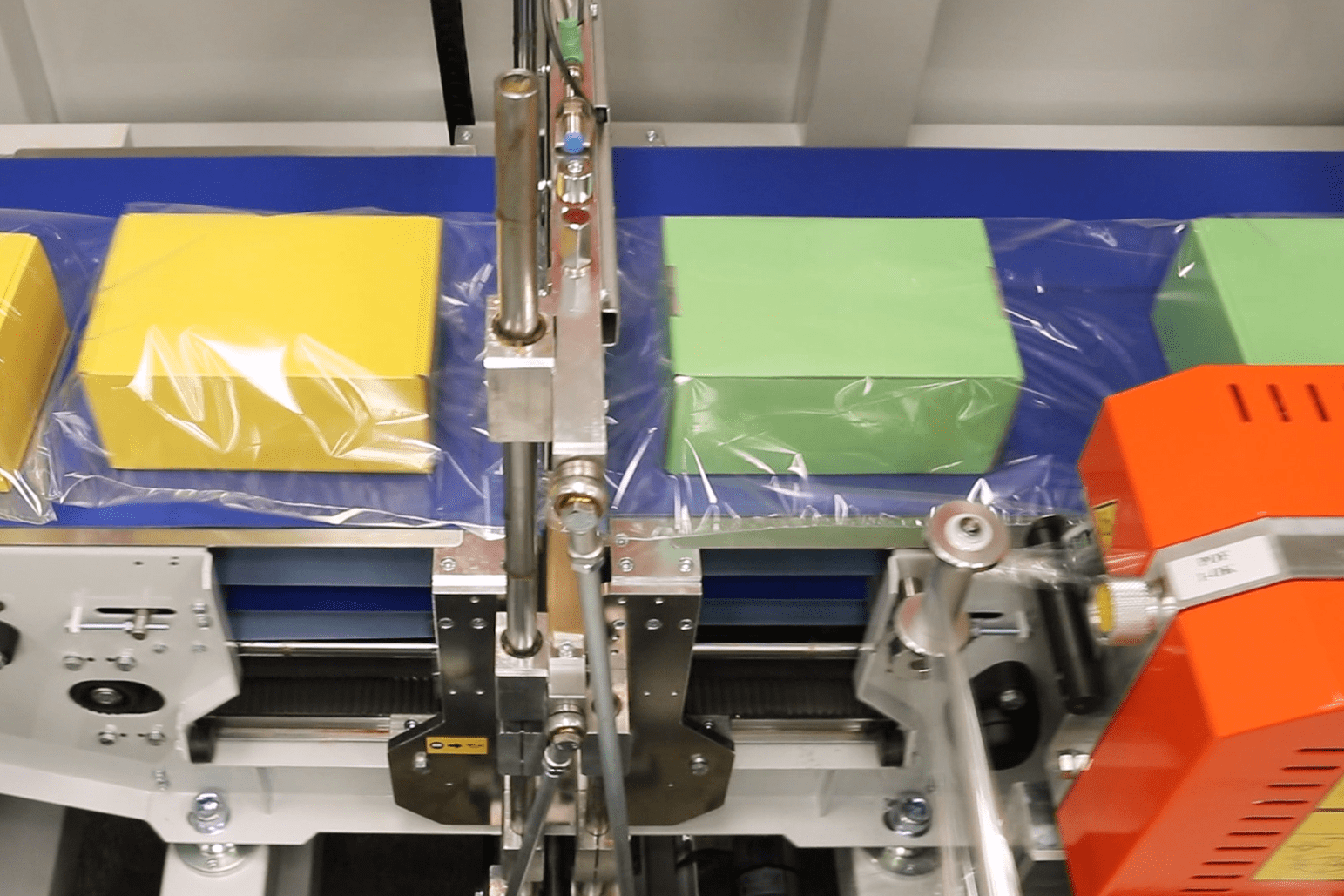

  • Continuous box motion cross seal bar controlled by brushless servo motor for high production output.
  • Closing conveyor for smooth product transfer.
  • PTFE-coated rounded cross seal and side seal works with most shrink films.
  • Automatic adjustment of cross seal bar opening based on product height increases wrapping speed.

Set-up Features

  • Low film cradle with film inverter for easy film loading and threading.
  • Quick changeover and 50 program memory allows for product setup in less than five minutes.
  • Seal centering on both the side seal and the cross seal, for a clean looking package.

Options

6' Fully Synchronized Integrated Powered Infeed/Outfeed Conveyor
On-Site Start-Up & Training Included
