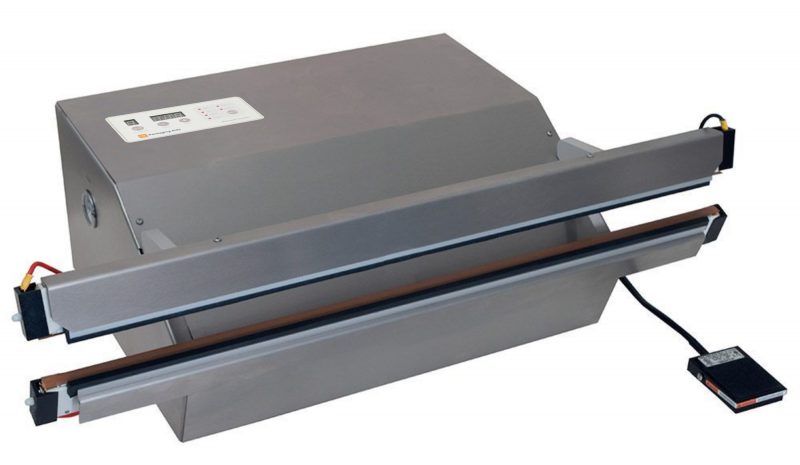

PAC PT Plus Impulse Sealer

Tabletop Industrial Pneumatic Impulse Sealer

The Packaging Aids PT Plus is the ideal tabletop pneumatic impulse sealer for packaging applications where seal integrity is critical. The PT Plus provides speed and flexibility for applications requiring an industrial quality piece of packaging equipment. The PT Plus provides the largest range of standard features of any pneumatic impulse sealer on the market.

The PT Plus features independent seal and cool timers. In addition, a footswitch is provided for hands-free operation. The PT Plus has bi-active (top and bottom) heat seal bars in order to seal through a range of packaging materials. Additionally, the PT Plus has a stainless steel frame, which conforms to good manufacturing practices in a range of packaging environments.

The PAC PT Plus industrial pneumatic impulse sealer includes a 2-year limited warranty.

Specifications

ModelPT Plus Industrial Pneumatic Sealer
Seal Lengths20″ or 28″
Seal Width3/16″
ActivationFootswitch
Air requirement (min)90 psi
Electrical requirement120V
Noise level< 85 dBA
Machine weight~75 lbs.
Warranty2 year limited

Features

Sealing Features

  • Seal Length: 20”, 28”
  • Seal Width: 3/16″
  • Thermal impulse time control system (0 – 4 seconds seal, 0 – 5 seconds cooling)
  • Proprietary seal element design for extended life

Safety Features

  • Spring close jaw safety system with release if obstruction is detected
  • Heavy duty seal transformer with thermal overload protection
  • CE compliant design for added safety and ease of troubleshooting

Operating Features

  • Stainless steel IP 32 frame for use in a range of packaging environments
  • Foot pedal cycle activation
  • Storage of up to 9 recipes for quick job set-up
  • Locking of settings to prevent them from being changed by an operator

Options

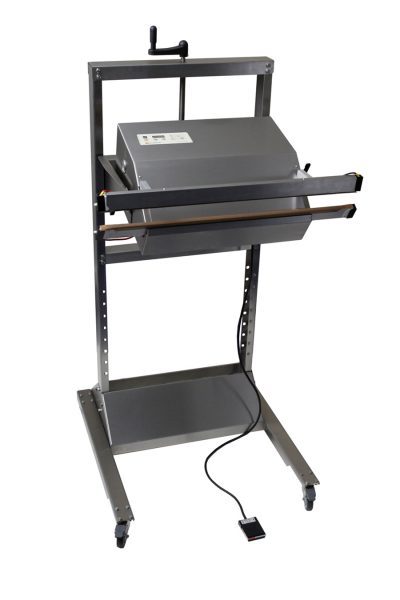

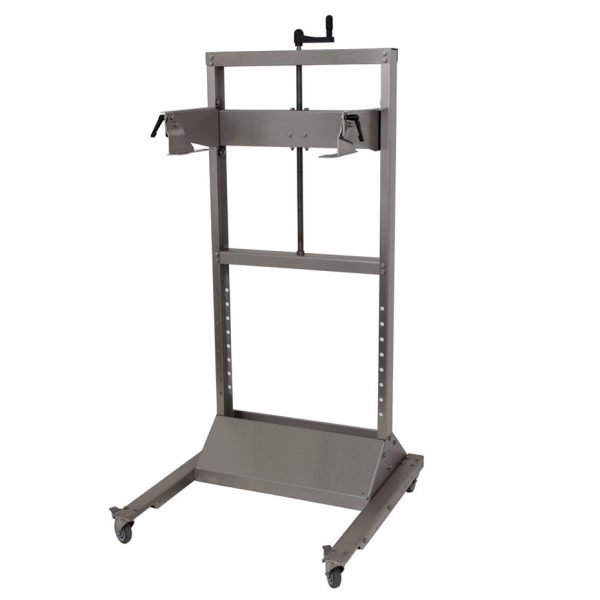

Support Frame
The support frame is the ultimate accessory for the PT Plus. This frame allows the operator to adjust the working height of the PT Plus from 34” – 56” when in the horizontal position and 30”– 46” when the sealer is in the vertical position. The support frame is made of stainless steel and includes locking casters to move the machine around the production facility.

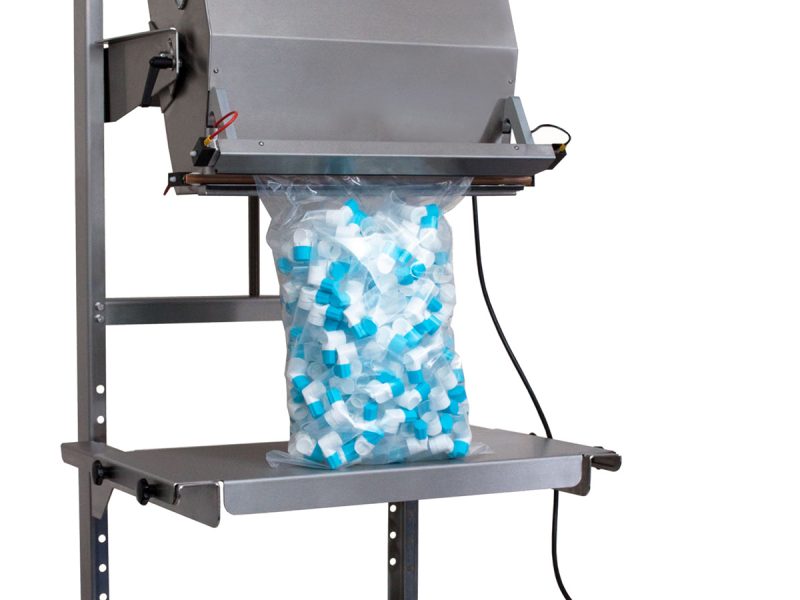

Work Shelf
The stainless steel work shelf supports the product during the packaging cycle. It is 20” wide and the distance from the seal bar to the included bag support is adjustable from 5” – 24”. The maximum product weight that can be placed on the work shelf is 20 lbs. when in the sealer is in the horizontal configuration and 35 lbs. when the sealer is 45º to vertical. The work shelf must be used in conjunction with the support frame.

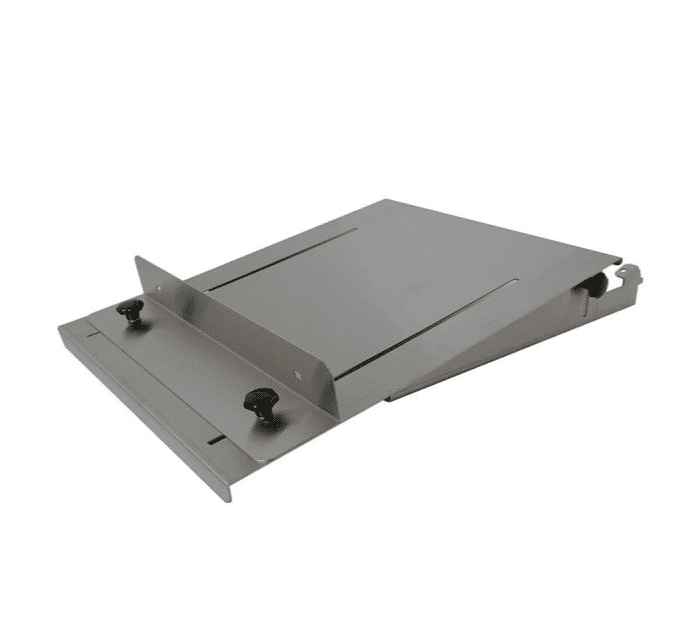

Flat Bag Support
The flat bag support is designed to package heavy products in a vertical orientation. It can only be used in conjunction with the support frame. The flat bag support is made of stainless steel and is 28” wide x 14” deep. It can support a maximum product weight of 30 lbs.
Spare Parts Kit
The spare parts kit has all of the consumable parts that ensure your sealer makes high-quality hermetic seals day in and day out. This kit includes sealing elements, seal bar cover, element insulator, and our proprietary silicone release paste.

DOWNLOADS

PAC PT Plus Industrial Pneumatic Impulse Sealer Datasheet

Packaging Equipment Overview Brochure
