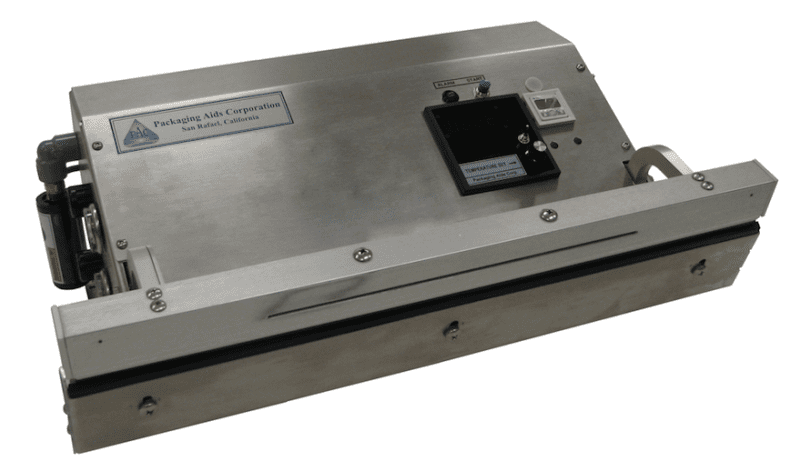

PT Med

Validatable Medical Pouch Sealer

The PAC PT Med is a fully validatable medical pouch sealer designed to comply with the stringent guidelines of ISO 11607 terminally sterile packaging requirements. The PT Med is a compact tabletop impulse sealer intended for medical and other industrial applications where control of process parameters is critical and seal validation is required.

PAC medical pouch sealers are capable of producing quality hermetic seals in a wide range of materials with consistency and repeatability. The PT Med is equipped with PAC’s medical control system. It is a precise temperature-based system with real-time monitoring of all sealing parameters for applications requiring seal validation. Built-in alarm functions prevent operation when outside of validated settings. External ports in the control cabinet allow for verification and calibration of internal controllers, a requirement for IQ/OQ processes.

Read More

Features

Sealing Features

  • Seal Lengths: 20″, 25″, 30″
  • Seal Width: 5/16″
  • Single side impulse heater bar with opposing pressure bar (top jaw heated)
  • Pneumatically operated sealing jaw for high pressure sealing
  • Independent digital seal and cool timers (1.0 – 9.9 seconds)
  • Digital sealing pressure switch with adjustable band to set high and low tolerances

Temperature Control Features

  • Temperature controller with digital readout to 350° F
  • Adjustable temperature band for high and low alarm tolerances
  • Seal time begins when set temperature is achieved to prevent inconsistencies with heat build up in sealing jaws, ensuring repeatable seals.

MedPAC Medical Control Features

  • ISO 11607 Compliant
  • Fully calibratable pressure switch and temperature controller
  • External ports in control cabinet for verification and calibration of internal controllers
  • Real time seal process parameter monitoring (Temperature, Pressure, Time)
  • Alarm function prevents operation when there is a deviation from validated settings

Safety Features

  • Spring close jaw safety system with release if obstruction is detected
  • Jaw close time out with release when delay is detected

Versatility

  • Ported Exhaust for plumping exhaust outside of a cleanroom
  • Stainless Steel Construction to mitigate particle contamination
  • Designed to effectively package medical devices in a wide variety of bag materials

Specs

  • Air Requirement (min): 100 psi
  • Electrical Requirement: 115v standard (230v optional)
  • Dimensions: 23″ – 33″ W x 8″ H x 15″ D
  • 2 year limited warranty
  • Made in USA

Options

Verification Timer
Plugs into time port to display and verify sealing time.
Verification Temperature Meter
With data logging capability – plugs into temperature port to verify sealing temperature.
Verification Pressure Gauge
Plugs into pressure port to verify internal pressure switch.
Floor Stand
For use on the floor instead of on a table.
Work Shelf
Supports the product during the packaging cycle (20″ wide x 8″ deep).

Additional Options

Bi-Active Jaws
(top and bottom heated bars) with jaw selector switch.

230V Operation

CE Compliant
