4S-XL Side Sealer Shrink System

4S-XL Four Side Sealer and 10T Shrink Tunnel System

Shrink wrap protection for extra-large packages, with automatic width, length, and height adjustment on every pack!

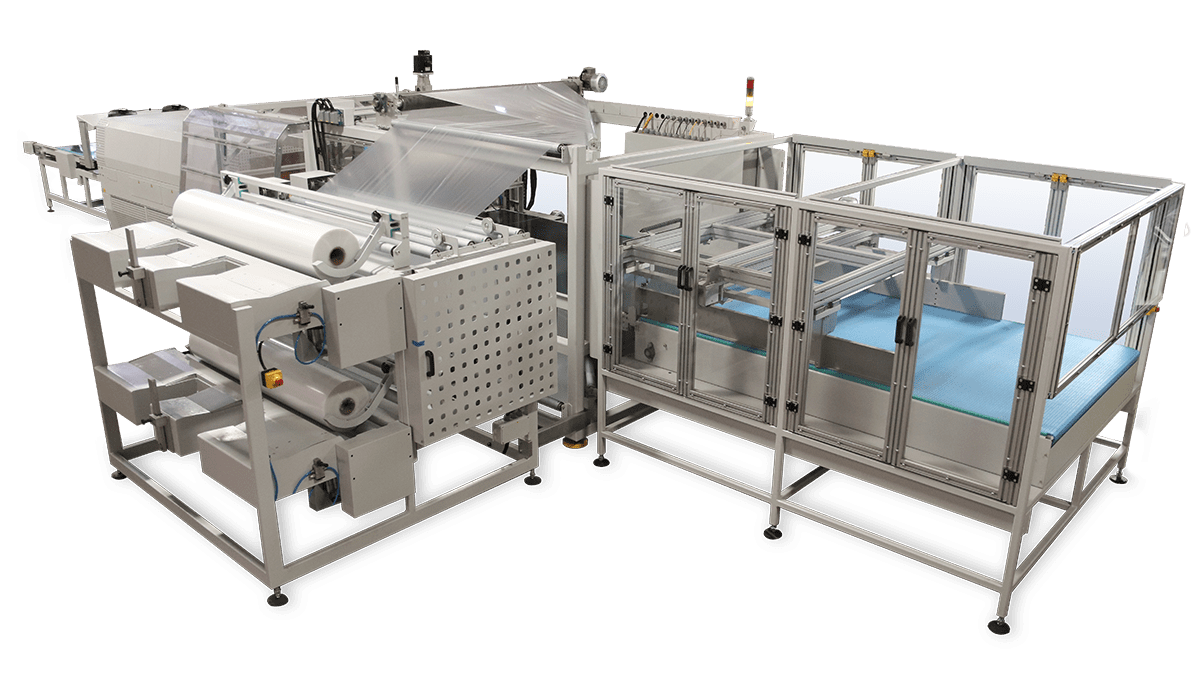

The Clamco model 4S-XL Four Side Sealer and 10T Shrink Tunnel is an advanced shrink packaging system that makes a four-sided seal around each product. Unlike traditional bundlers or sleeve wrappers, this shrink system ensures that the product being packaged is fully enclosed. Equipped with Automatic Detection of Product Width for Side Sealer Positioning, this cutting edge four side sealer can create packages of different sizes in one packaging run.

The packaging process is as follows:

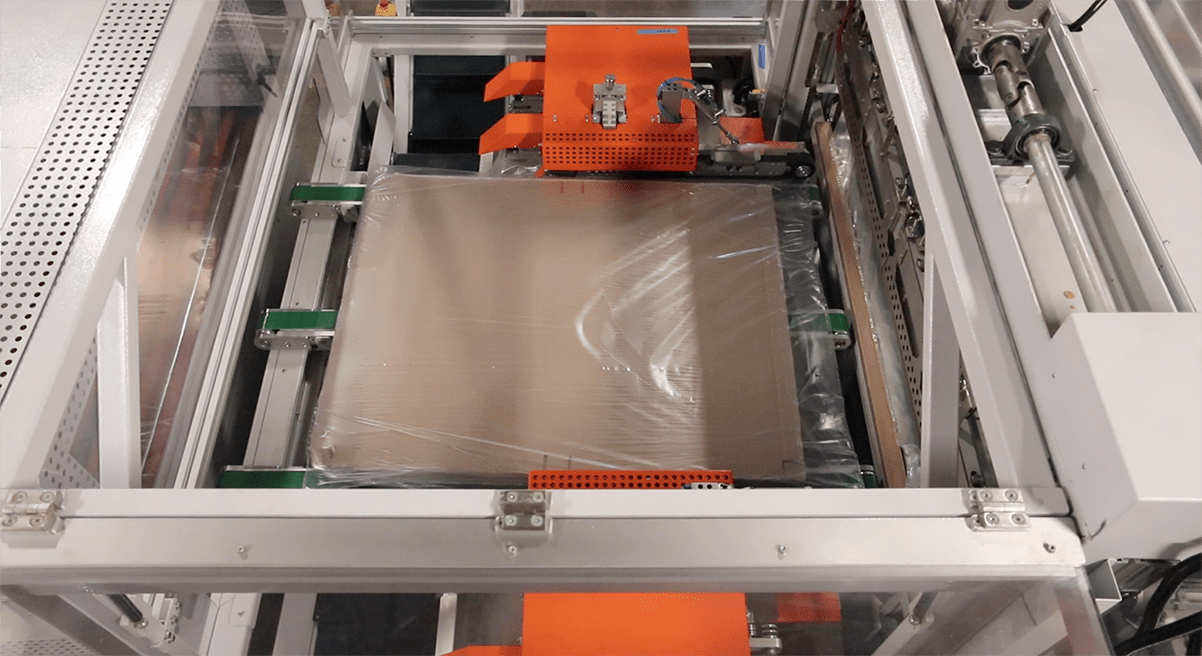

First, the product is placed onto the infeed conveyor belt. A positioning guide automatically centers the product on the conveyor. Next, the cross seal bar will be activated by sensors that detect the product length. The film is fed on demand via two side-mounted powered film cradles. The product is now wrapped with film on the top and bottom.

Read More

Videos

Specifications

ModelClamco 4S-XL

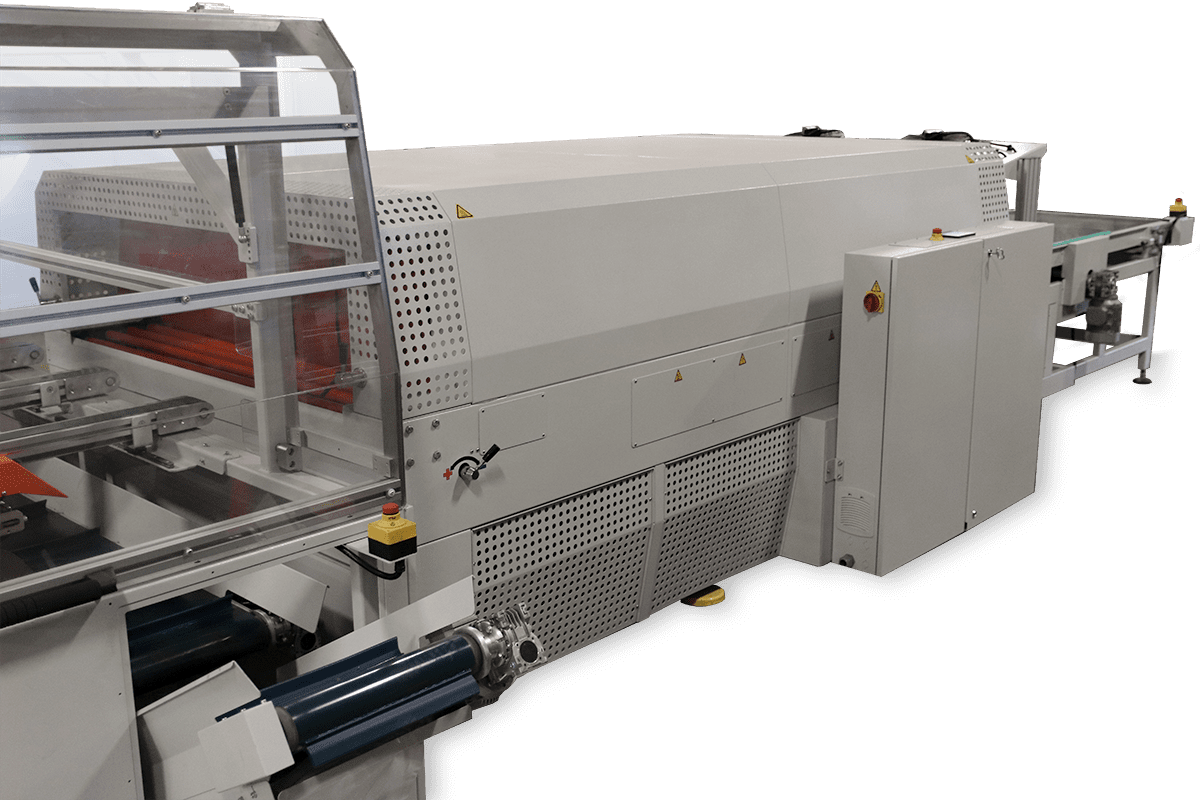

10T Shrink Tunnel
Cross Seal Bar Width 59″
Max Product Height6” (side sealers fixed at 2.5” height)
Max Product Length94″
Max Product Width48″
Outfeed conveyor8.2' long
System Dimensions combined42'L x 12.5'W x 86.5″H
Power Requirements: 220 V /3 Phases / 60 Hz / 30 Amps480 V / 3 Phases / 60 Hz/ 80 Amps
Air Requirement90 PSI @ 7 CFM
Warranty1 year limited 1 year limited

Features

Operating Features

  • Designed with strengthened mechanical components for today’s demanding manufacturing environment
  • Easy to integrate directly with your production line
  • 2 ft motorized infeed conveyor
  • Recordable & calibratable seal temperature adjustments

Sealing Features

  • Four side seal and trim unit for a clean final package appearance
  • 59” cross seal bar in order to seal products up to 48” wide
  • High strength side-seal knives to cut and seal polyethylene with low maintenance
  • Automatic detection of product width for side sealer positioning
  • Automatic detection of product height for side sealer positioning
  • Automatic centering of product on the infeed conveyor
  • Touchscreen interface with job setting storage and diagnostics for ease of use
  • Up to 3 mil polyethylene shrink film (thicker films possible, depending on requirements)

Set-Up Features

  • Motorized bottom film drive to assist with product transfer of lighter products
  • Side-mounted film rolls for easy accessibility
  • Servo-driven cross seal bar, balanced on linear bearings, for longevity
  • Conveyorized scrap removal system
  • Automatic product width, length, and height detection
  • Operating conveyor speed of up to 50 ft per minute
  • Advanced film drive wheels: provides consistent and even film tracking

Safety Features

  • CE compliant design for enhanced safety and ease of troubleshooting

Options

Options or Customization is offered to meet various packaging applications. Please contact us for detailed information.
