Audion 552

Continuous Horizontal Band Sealer

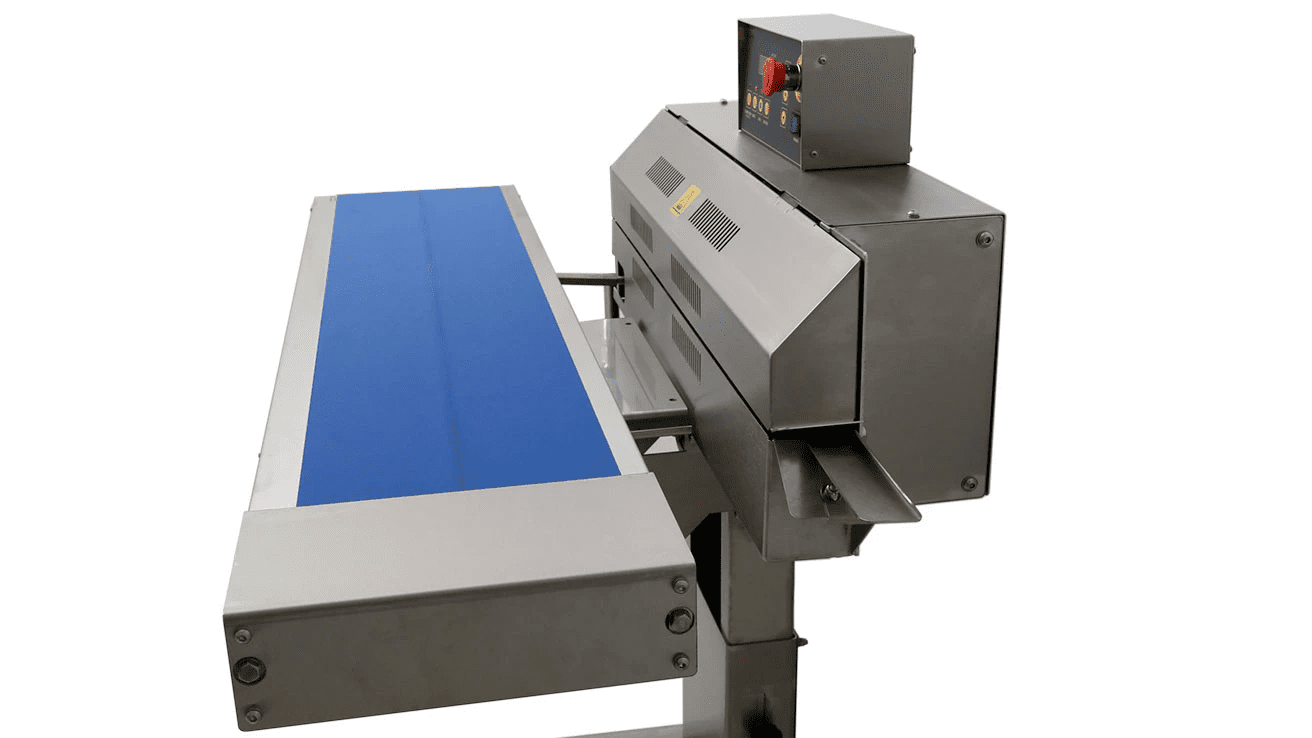

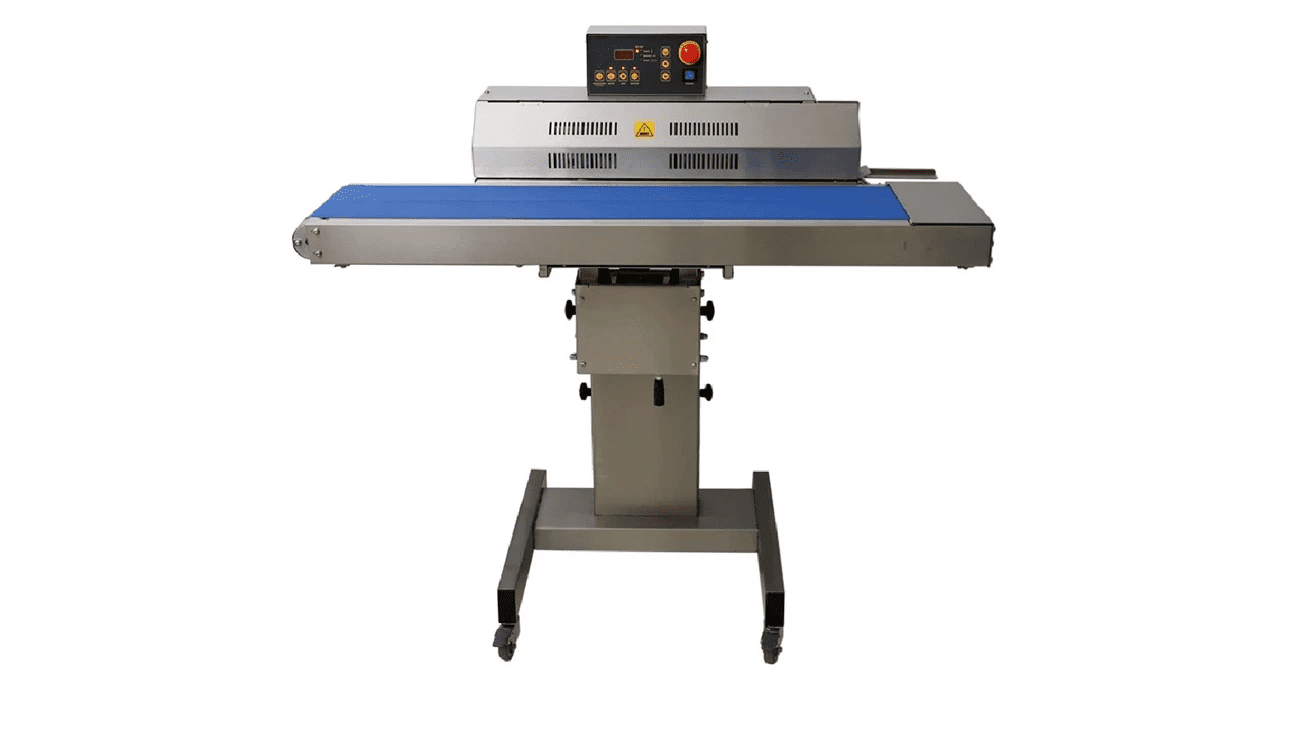

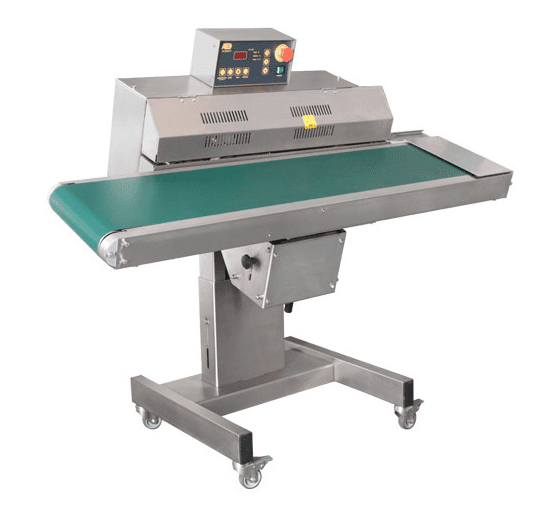

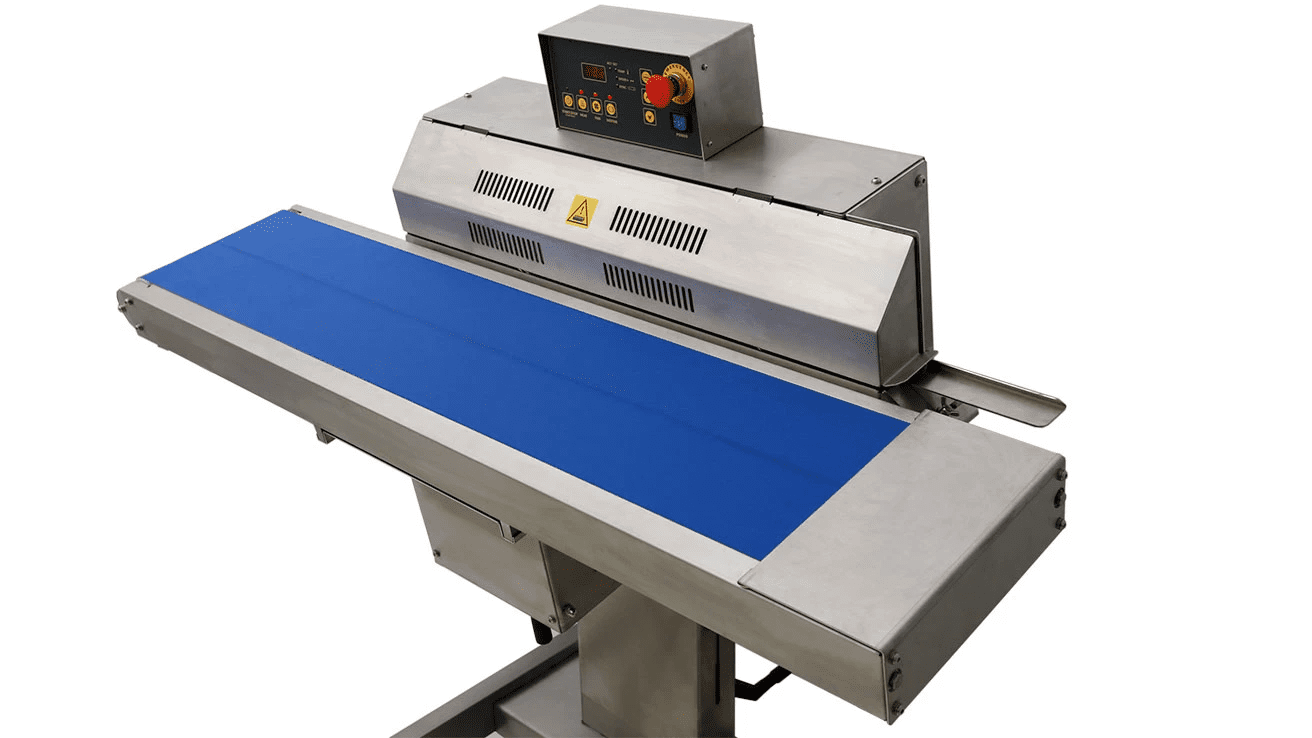

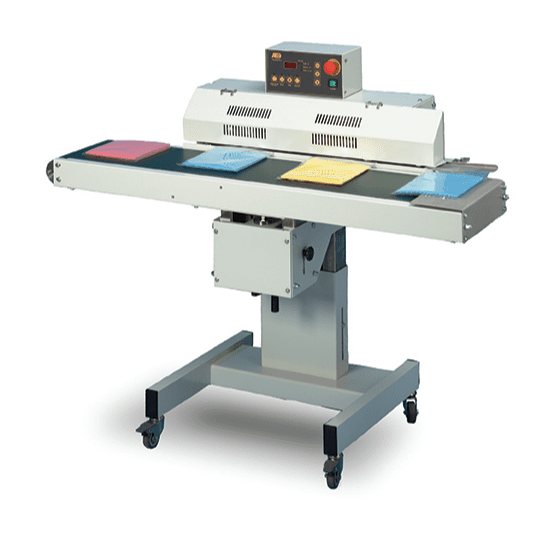

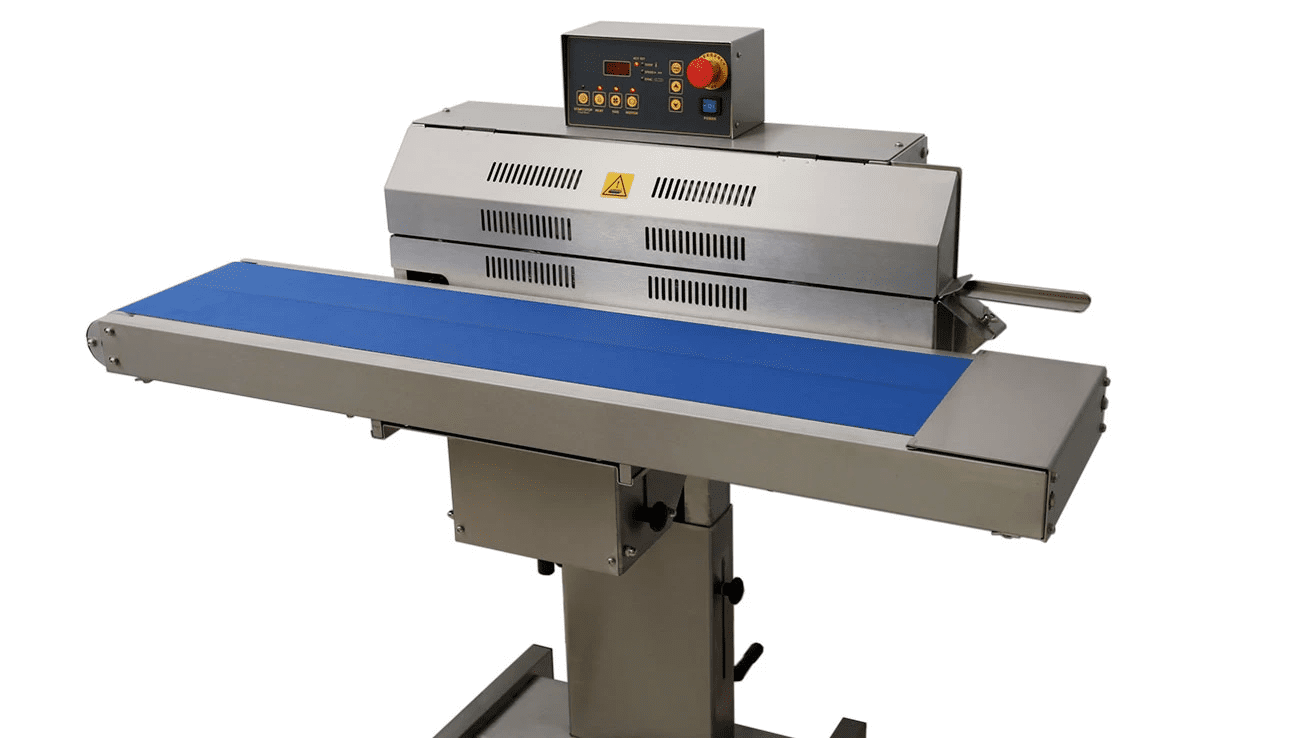

The Audion 552 is a large continuous horizontal band sealer for bag and pouch sealing applications. Designed for speed and convenience, the 552 horizontal band sealer has an integrated conveyor that may be tilted down as much as 30° to facilitate easier bag handling. Adding to its feature-set, the seal head and conveyor can be raised or lowered to achieve a seal position that is between 28”″and 36” from the floor.

Engineered for ease of use, the 552 horizontal band sealer is equipped with a digital controller and display for precise temperature setting and monitoring. Additionally, it comes equipped with an automatic cool run shutdown feature that is designed to protect the seal belts and extend their life. The standard version of the band sealer comes with locking casters to make moving and securing the sealer an easy task.

Read More

Videos

Specifications

Model552 Band Sealer
Seal Width7/16"
Max Seal Temp350º F
Max Seal Speed400 inches/min
Heater Bar Length6"
Cooling Bar Length4.25"
Electrical120V
Dimensions (WxDxH)54" x 25" x 40" - 48"
Weight200 lbs
Warranty3 year limited

Features

Set-Up Benefits

  • Quickly dial in sealing parameters with the digital interface
  • Adjustable seal pressure on pressure roller as well as heating and cooling jaws
  • Seal speed up to 400 inches/min
  • Digital temperature controller with max temperature of 480º F
  • Conveyor lowers vertically up to 2.5” from the seal position to accommodate thick packages
  • 10” wide conveyor slides out horizontally up to 4” to accommodate long bags
  • Position the seal up to 1.5” down from the top of the bag

User Benefits

  • Straightforward user controls help assure excellent results
  • Adjustable sealing head conveyor for added versatility
  • Use standing or seated

Operating Benefits

  • Precise controls for every function
  • Requires minimal maintenance
  • Ready light indicates operation within the set parameters
  • Set seal position from 28” – 36” from the floor
  • Seal head tilts down up to 30° for processing products with liquids
  • Locking casters add mobility

Safety Benefits

  • Cool run shutdown to lengthen the life of the seal belts
  • Adjustable height for improved ergonomics and ease of use
  • Emergency stop button ensures quick machine shutdown
  • CE compliant design

Options

Inkjet Printer
Embosser

Additional Options

Left to Right Feed Orientation
Special order.
