Audion 555

Vertical Band Sealer

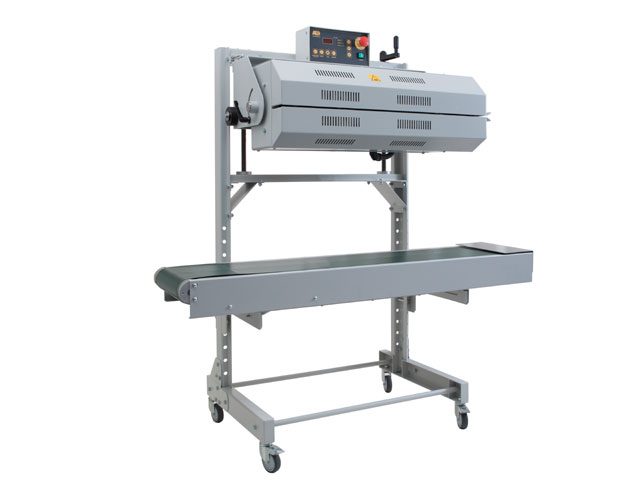

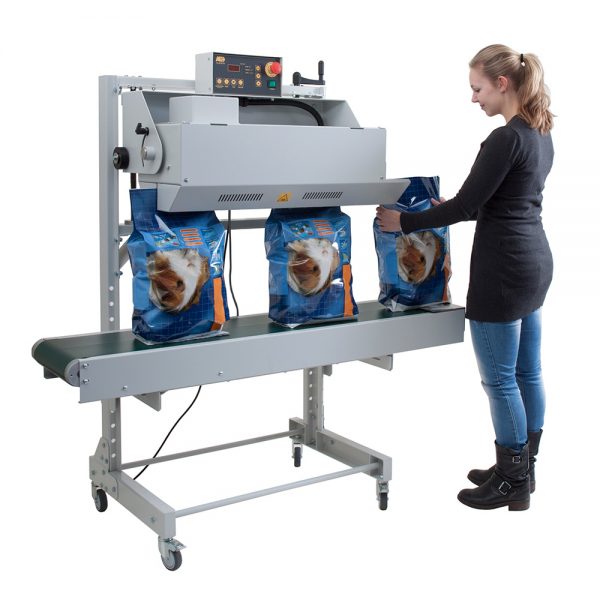

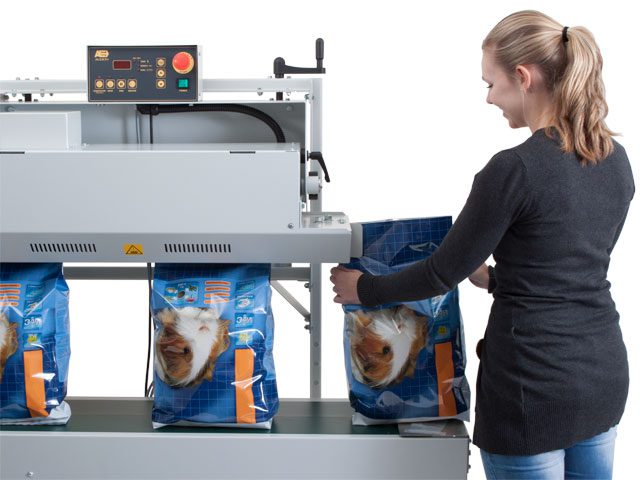

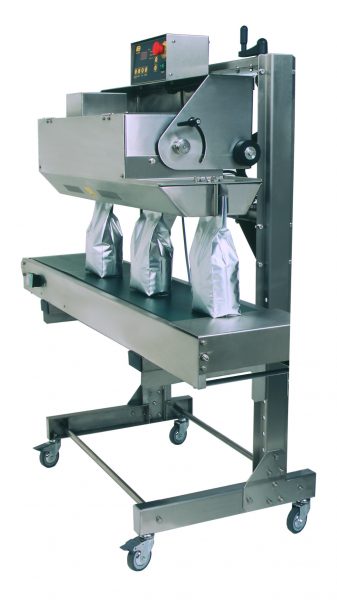

The Audion 555 is a continuous vertical band sealer intended for stand-up, square bottom, or gusseted pouches sealed in the vertical position. This model accommodates a wide range of bag sizes as the sealing head is crank adjustable from 31” to 44” from the floor to precisely locate the sealing position.

The 555 is primarily meant for vertical sealing applications, but the sealing head is easily rotated 90° to meet horizontal application requirements as well. The sealing head is adjustable and will facilitate positioning over the adjustable conveyor. Digital temperature control with adjustable speed control provides the ability to seal many different materials and thicknesses including gusseted or heavy foil pouches.

555 Vertical Band Sealer - with optional inkjet printer

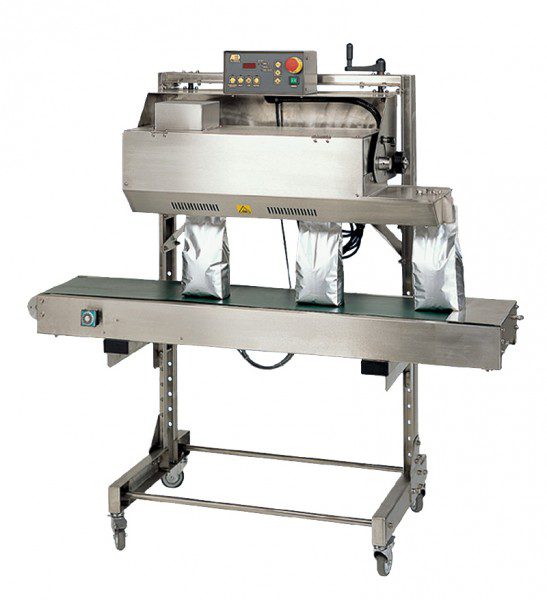

555 Vertical Band Sealer for Coffee Pouches - Continuous Bag Sealer

Vibratory Filler E/Series | Feature: Pneu-Con and Sealer

Guide your packages continuous bandsealer

Specifications

Model	555 Band Sealer
Seal Width	7/16"
Max Seal Temp	480º F
Max Seal Speed	400 inches/min
Heater Bar Length	6"
Cooling Bar Length	4.25"
Electrical	120V

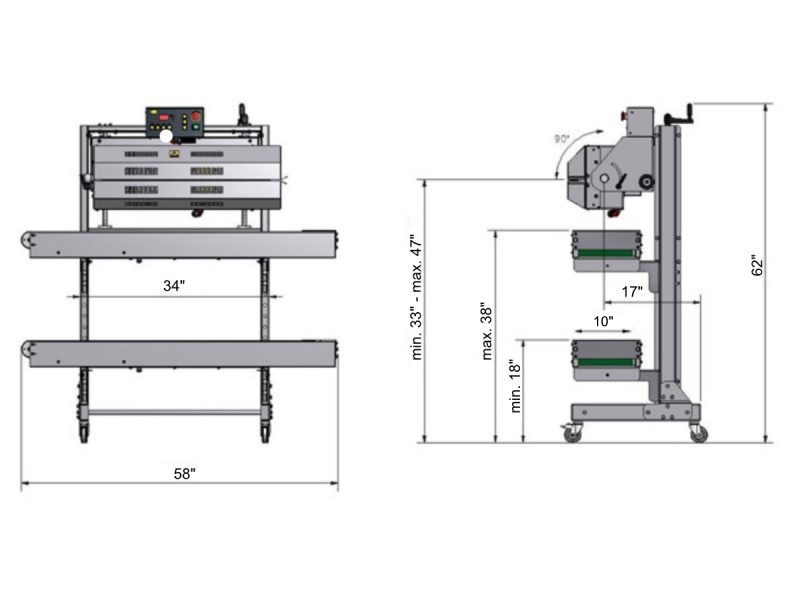

Dimensions (WxDxH)	58" x 24" x 62"
Weight	280 lbs
Warranty	3 year limited
Country of Manufacture	Germany

Features

Set-Up Benefits

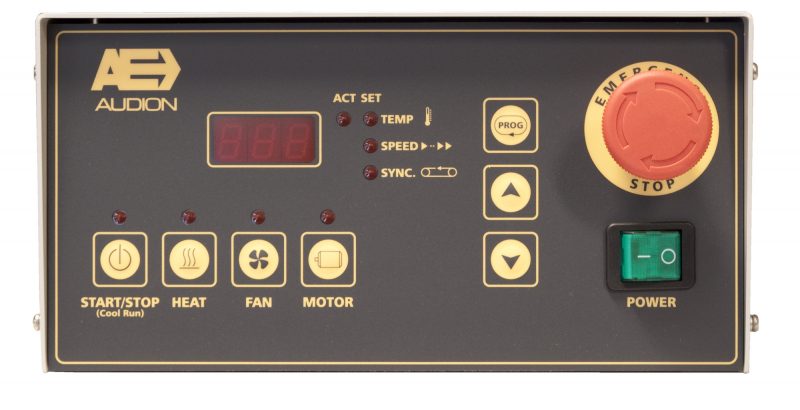

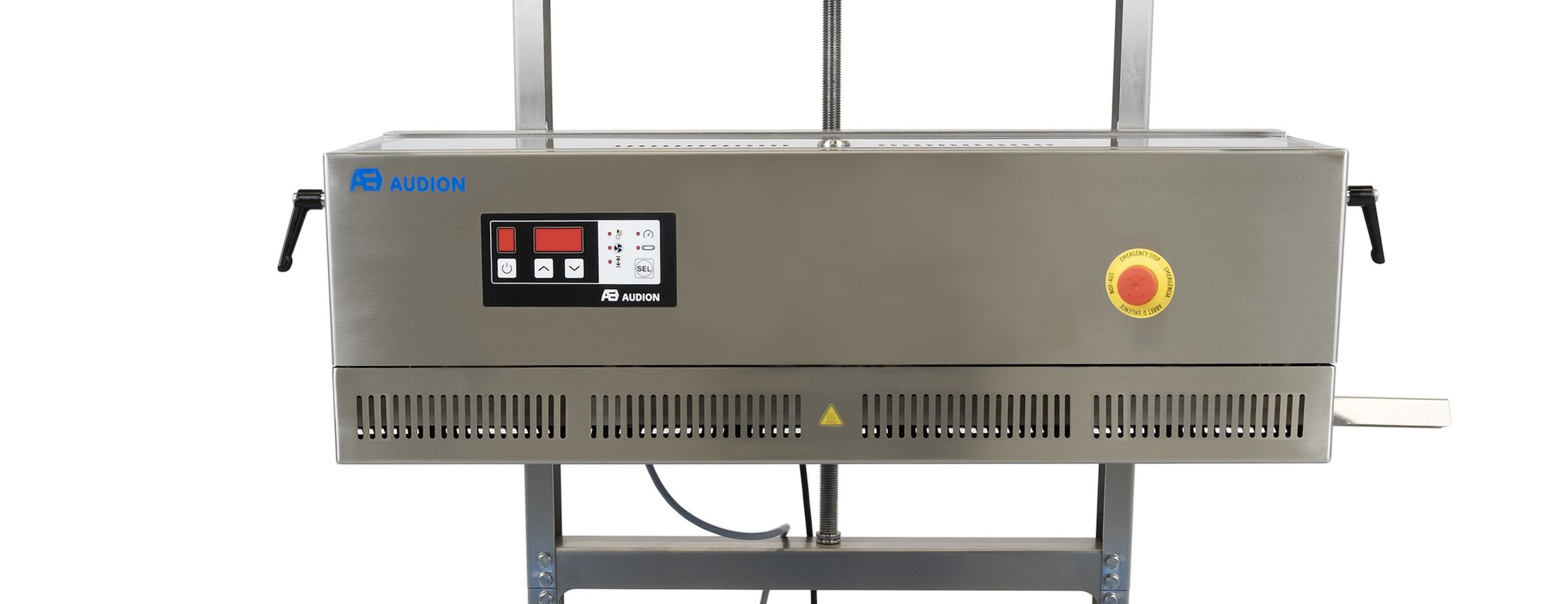

Quickly dial in sealing parameters with the digital interface
Adjustable seal pressure on pressure roller as well as heating and cooling jaws
Seal speed up to 400 inches/min
Digital temperature controller with max temperature of 480º F

User Benefits

Straightforward user controls help assure excellent results
54″ Motorized Conveyor (22lb max weight of product on conveyor)

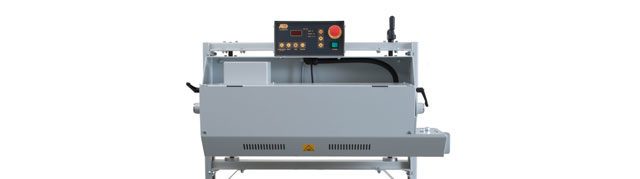

Adjustable sealing head angle for added versatility
Crank adjustable seal head height
Stainless steel construction for ease of cleaning
Use standing or seated

Operating Benefits

Precise controls for every function
Requires minimal maintenance
Ready light indicates operation within the set parameters
Stainless steel frame and cabinet
Locking casters add mobility

Safety Benefits

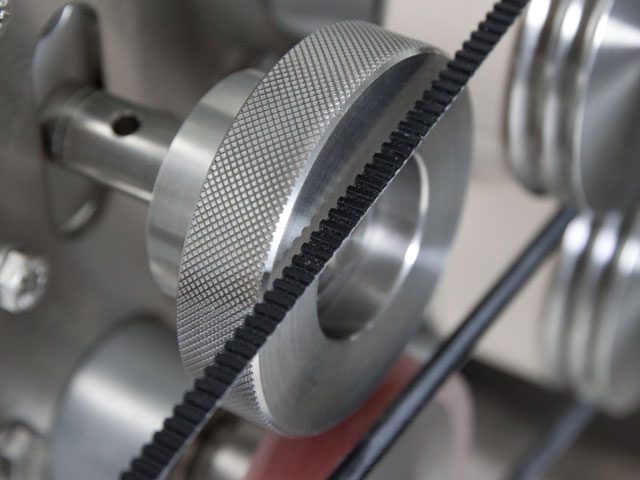

Cool run shutdown to lengthen the life of the seal belts
Adjustable height for improved ergonomics and ease of use
Emergency stop button ensures quick machine shutdown
CE compliant design

Options

Inkjet Printer

Embosser

Additional Options

Extended Throat
(Additional space for 4″ header above seal)

DOWNLOADS

Audion 555 Vertical Band Sealer datasheet

Industries

Food, Industrial, Medical, Fruits, Nuts, Vegetables, Meat, Cheese, Poultry, Fish, Pet, Automotive Parts, Fabric and Textile, Pharmaceutical, Medical Devices, Healthcare Item, Chemical, Hazardous Location, Cannabis, Toy and Game, Printing, Paper, Forms, Coffee and Tea, Electronics
