Audion D545 AV

Flexible Rotary Pouch Sealer

The D545 AV Band Sealer is a flexible rotary pouch sealer that fits on a table!

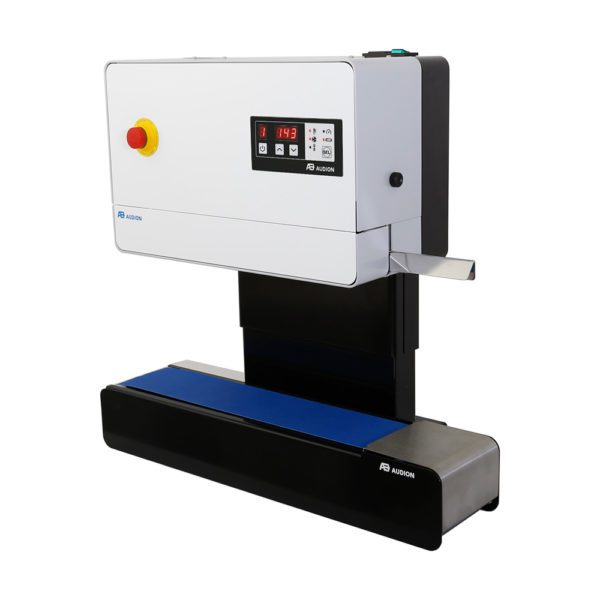

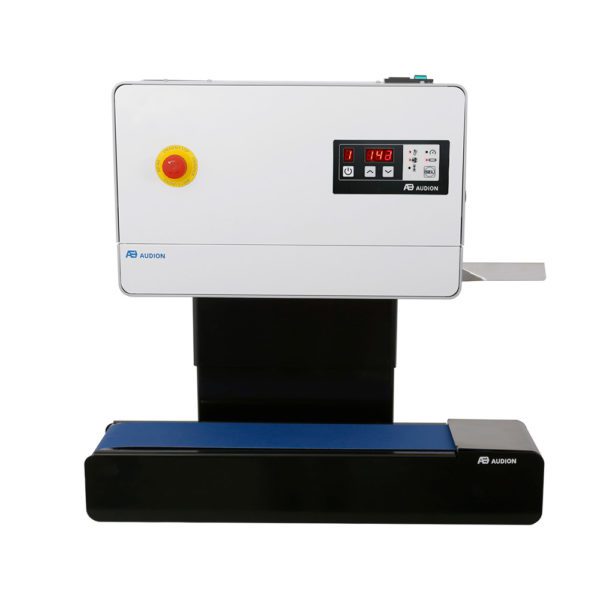

The Audion D545 AV is a continuous band sealer for pouches sealed in a vertical position. The D545 has the advantage of a compact modern design and is ideal for applications that require the accurate control of sealing temperature for consistent seal integrity.

This smart tabletop model uses pre-made bags that are sealed standing upright. The flexible D545 AV band sealer uses PTFE belts to seal polyethylene, polypropylene, and other foil laminated pouches and bags. The maximum distance between the seal and the top of the bag is 1.9 inches.

This band sealer has a temperature controller with digital readout and includes an automatic cool down function. The sealing head is adjustable in height away from the integrated conveyor to accommodate pouches from 4.5″ to 16.5″ in height. The packages move from right to left.

The industrial Audion D545 AV Vertical Band Sealer is made in the Netherlands and includes a 3-year limited warranty.

Videos

Specifications

Technical SpecsAudion D545 AV Band Sealer
Seal Width3/8”
Max Seal TempUp to 480° F (250° C)
Conveyor Belt Size4.4” W x 26.4” L
Max Seal SpeedAdjustable up to 400”/min
(up to 10 meters/min)
Cooling Bar Length4.25″
Electrical Requirement115V

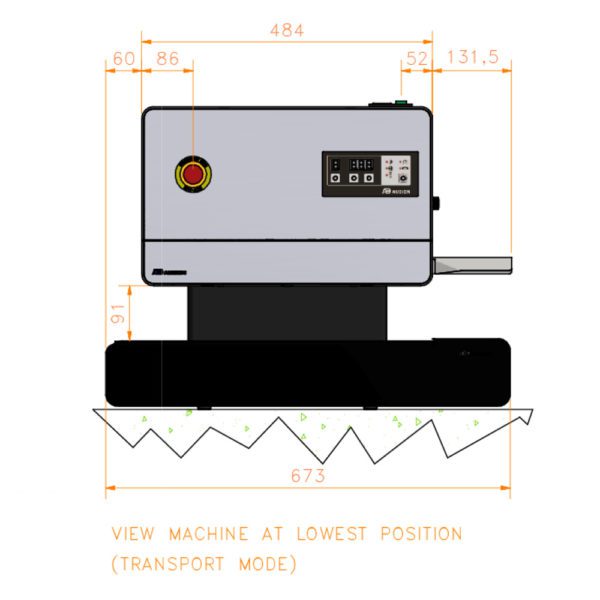

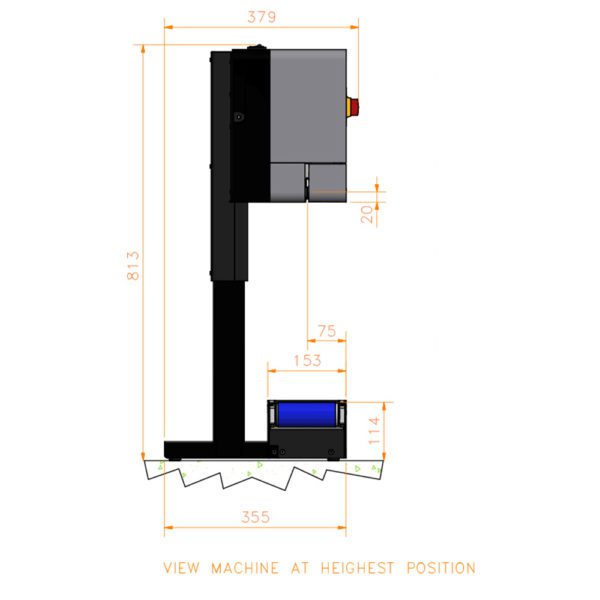

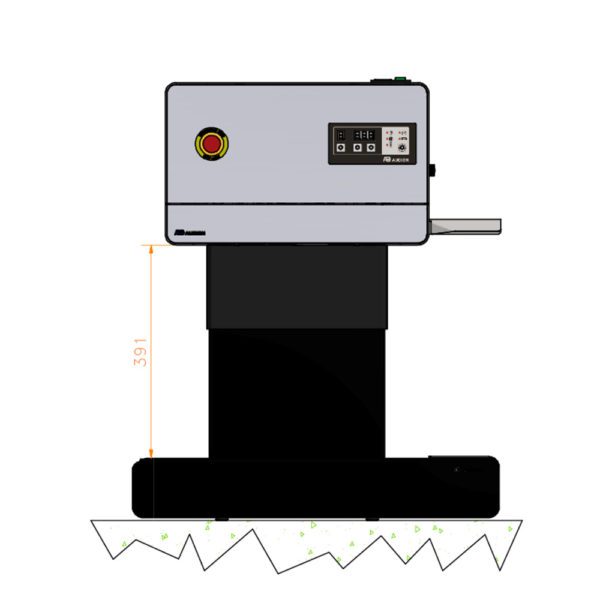

Dimensions (WxDxH)27” x 15” x 21-32”
Weight100 lbs.
Warranty3 year limited
Country of ManufactureNetherlands

Features

Set-Up Benefits

  • Accurately set seal temperature with digital temperature controller
  • Manually adjustable seal pressure for packaging versatility
  • Seal speed up to 400 inches/min
  • Compact machine size to fit on a table

Safety Benefits

  • Emergency stop button
  • CE compliant design

Operating Benefits

  • Adjustable bag guide
  • Requires minimal maintenance

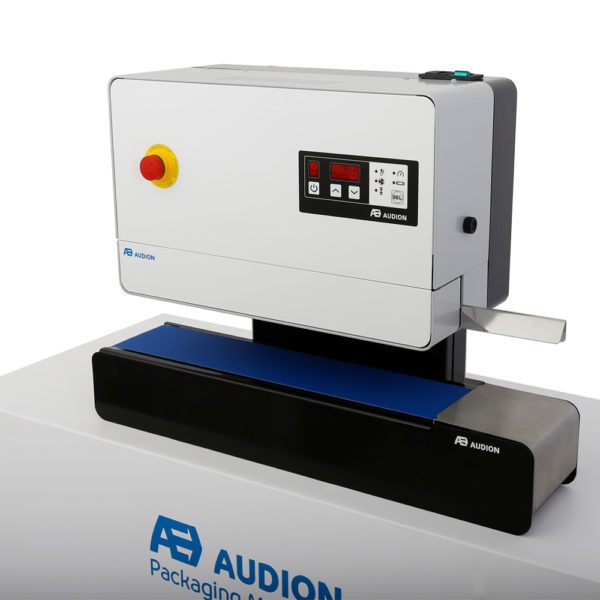

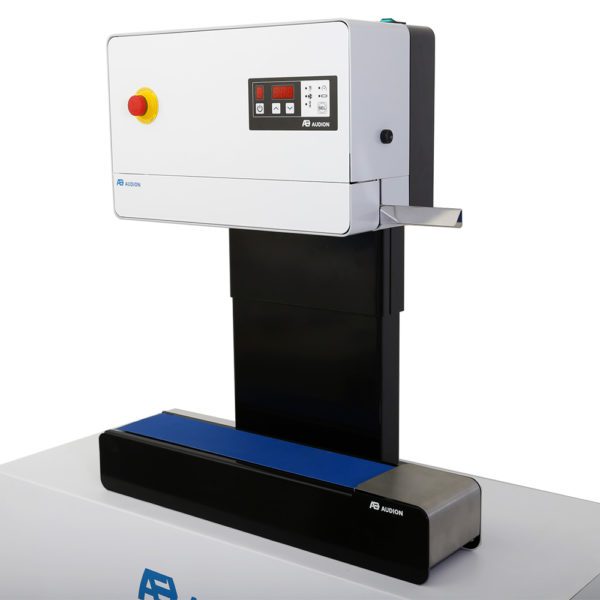

  • Adjustable sealing head height to accommodate various pouch heights

User Benefits

  • Flexible pouch sealing with variable seal temperature up to 480°
  • Integrated conveyor
  • Automatic cool down cycle

Safety Benefits

  • Emergency stop button
  • CE compliant design
