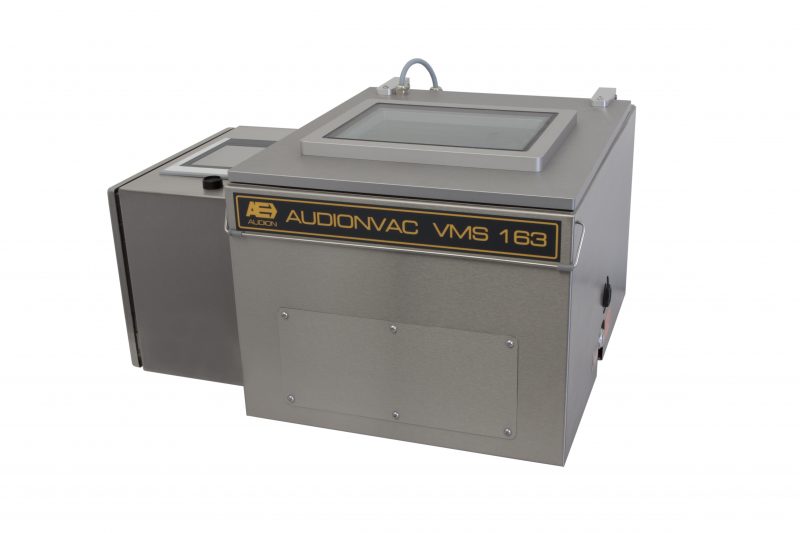

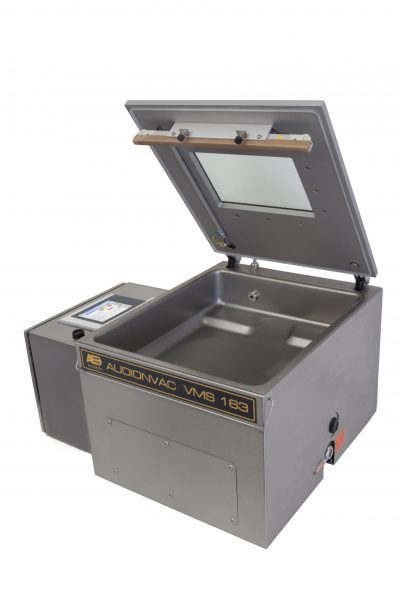

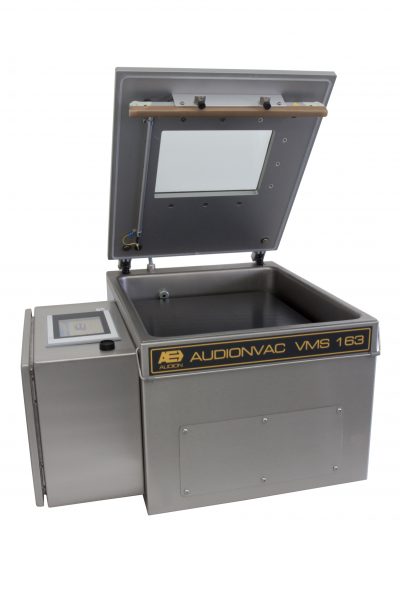

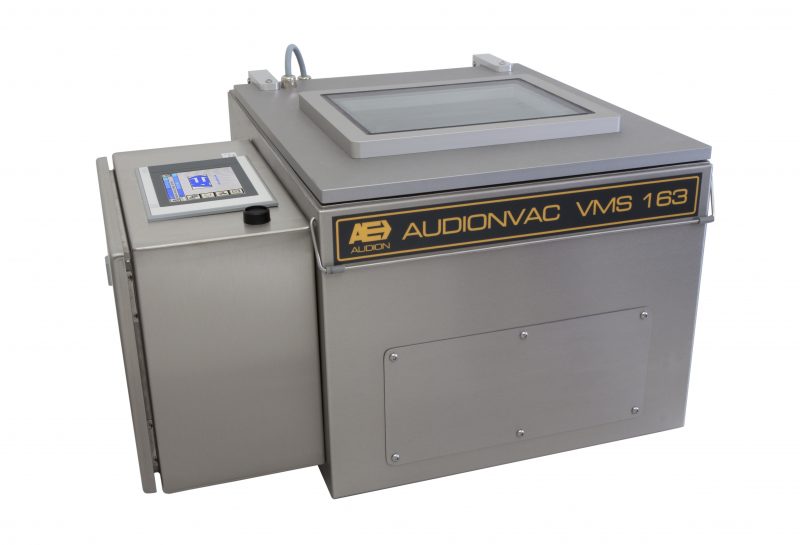

Audionvac VMS 163 Med

Sealing Features

• Seal Length: 16.5″
• Seal Width: 5/16″
• Biactive sealing jaws (top and bottom heated jaws)
• Pneumatically operated sealing jaw for high pressure sealing
• Sealing Time: Max 20 seconds
• Temperature controlled to 350°F

Vacuum and Gas Flush Features

• 1.25 hp powerful, dependable Vacuum Pump
• Dual gas flush nozzles with bag gripper to maintain bag position on sealing bar
• Sensor controlled vacuum pressure and gas pressure with monitoring to detect any deviation

Medical Validatable Control Features

• ISO 11607 Compliant
• Monitoring of process parameters with alarm function and cycle abort if deviation from validated settings occurs (seal temperature, seal pressure, vacuum pressure, and gas pressure)
• Seal time begins when set temperature is achieved to prevent inconsistencies with heat build-up in the sealing jaws, ensuring repeatable seals.

User Benefits

• PLC with touchscreen HMI
• Data logging with export capability to PC via USB drive
• Controlled access level with password protection
• Easy to operate, cycle automatically begins when chamber lid is closed

Versatility

• Stainless steel construction to mitigate particle contamination
• Chamber filler plates to accommodate various pouch and product thicknesses
• Designed to effectively vacuum package medical devices in a wide variety of bag materials
