Audionvac VMS Double Chambers

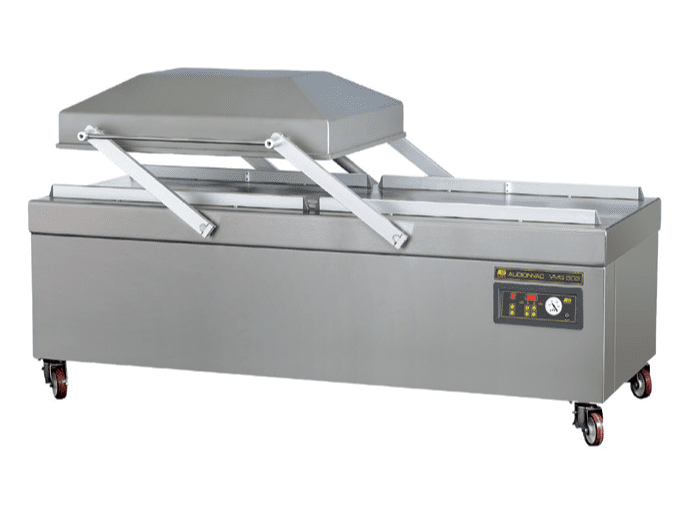

Audionvac VMS Double Chamber Vacuum Sealers

Designed for vacuum packaging applications that require the maximum removal of air to extend shelf life. These double chamber vacuum packaging machines have a large and durable stainless steel flat chamber bed for applications requiring a combination of maximum air removal and faster production speeds. The two chambers allow one to be reloaded while the other is processing. These large double chamber vacuum packaging machines provide the utmost in reliability, technology, and build quality. These vacuum sealers are ideally suited for both food processors and industrial manufacturers.

Double Chamber Vacuum Sealer Features

Audionvac double chamber vacuum packaging machines have a stainless steel lid with a flat stainless steel chamber (VMS). These chamber vacuum sealers feature digital controls and two quick-change seal bars for packing multiple products per cycle. Polyethylene filler plates come standard with these vacuum sealers, taking up free space in the chamber to reduce cycle time.

The Audionvac double chamber vacuum sealers have a 10 program memory and soft air return. Soft air return protects delicate products by ensuring air is gradually let back into the chamber at the end of the vacuum cycle. These double chamber vacuum sealers use a Busch brand pump, the industry standard in vacuum pumps.

Read More

Videos

Specifications

ModelVMS 253VMS 263VMS 283VMS 503VMS 883VMS 903
Seal Type (in)2 x 1/82 x 1/82 x 1/82 x 1/82 x 1/82 x 1/8
# of Seal Bars222222
Seal Bar Configuration
Seal Length (in)242424433233
Distance Between Bars (in)15.519.529.528.53235
Chamber Size (WxDxH in)27 x 21 x 9.527 x 25 x 9.527 x 34 x 8.2545 x 34 x 932 x 32 x 8.2535 x 33 x 8.5
Vacuum PumpBusch 63 (3 HP)Busch 100 (5 HP)Busch 100 (5 HP)Busch 300 (12 HP)Busch 300 (12 HP)Busch 300 (12 HP)
Electrical230V 3Ph 60Hz230V 3Ph 60Hz230V 3PH 60Hz230V 3PH 60Hz230V 3PH 60Hz230V 3PH 60Hz
Dimensions (WxDxH in)59 x 32 x 4359 x 36 x 4359 x 48 x 4395 x 48 x 4675 x 51 x 4596 x 42 x 46
Shipping Weight (lbs)7408201,4202,0651,8601,870

Features

User Benefits

  • Smooth, stainless steel chamber is easy to clean
  • Low friction lid motion for minimal opening and closing effort
  • Highly dependable with an excellent return on investment
  • Industry-leading 3 year limited warranty

Set-up Benefits

  • Logical, user friendly controls with 10 program job storage
  • Easy to read display
  • Convenient filler plates to adjust the chamber height to your package size
  • No compressed air or special connections required

Operating Benefits

  • Use with pre-made vacuum bags
  • Available in a variety of chamber sizes to suit your needs
  • Powerful, dependable vacuum pumps
  • Digital controls for fast adjustment
  • Optional gas flush
  • Very low residual oxygen level
  • Soft air return to protect delicate products
  • Removable pressure bar for ease of cleaning

Safety Benefits

  • Designed to meet CE requirements
  • Stop button to interrupt the cycle at any point
  • Digital vacuum pump maintenance program

Options

Automatic Swing Lid
Improves egonomics and reduces operator fatigue.

Trim seal
Removes excess bag material above the seal.

Seal 1-2: Trim Seal and Flat Seal
Different time setting on the trim seal.

5/16” Wide Single-Sided Seal

3/16” Bi-Active Seal
Top and bottom heated seal for thick materials.

Lid Filler Plates
Reduces overall chamber volume to increase cycle time.

Gas Flush
For modified atmosphere packaging.

Multi-Cycle
Multiple vacuum and gas flush cycles prior to sealing.

Gas Plus
Additional gas flushing time during closing of the seal bars, making the bag slightly puffy.

Vacuum Level Sensor
Sets the percentage of vacuum, instead of time, ensuring repeatable results.

Powder Filter
Inline with vacuum pump for dusty environments or powdery products.
