Clamco 250C Combo

L-Bar Sealer and Tunnel Combination Shrink System

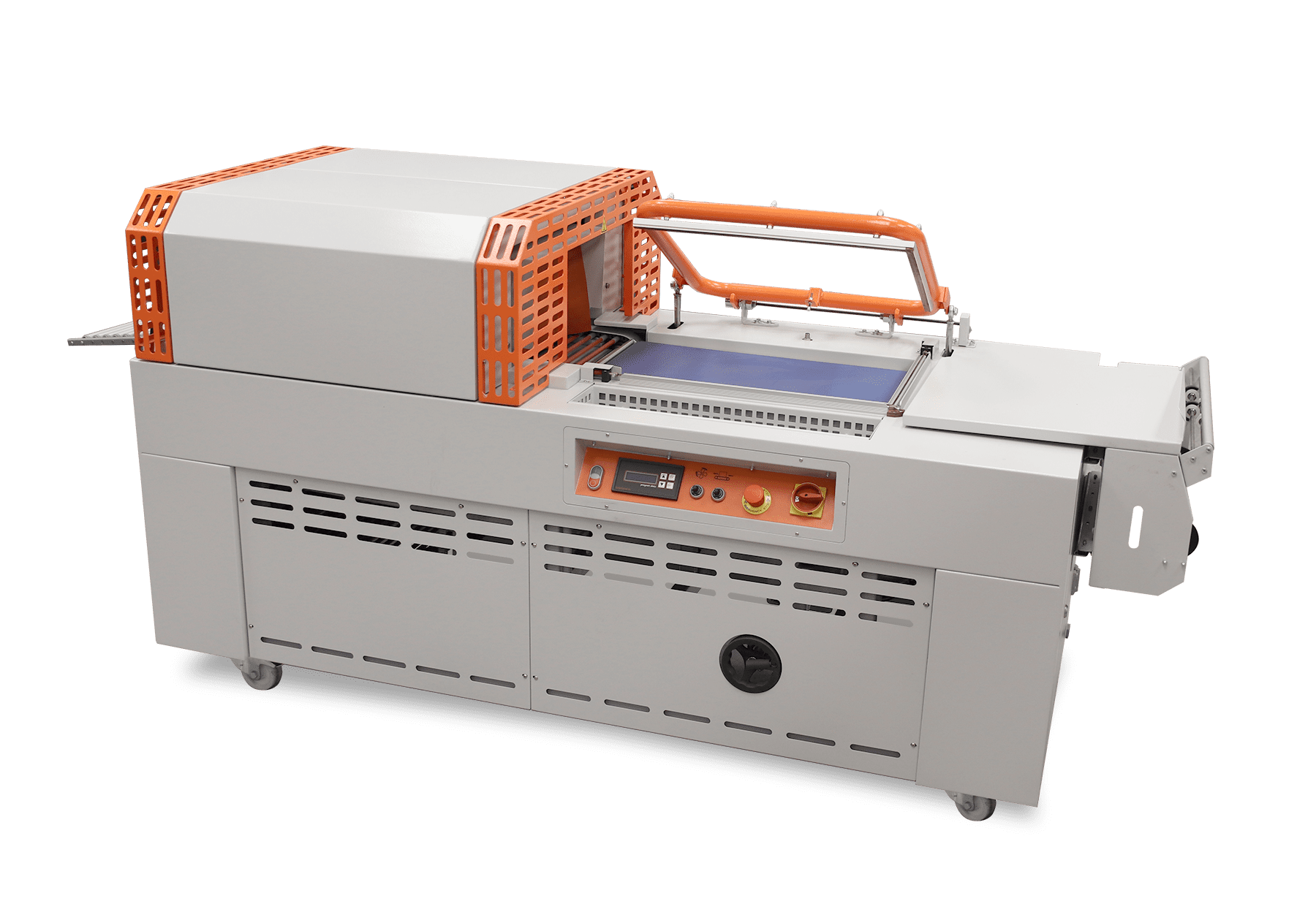

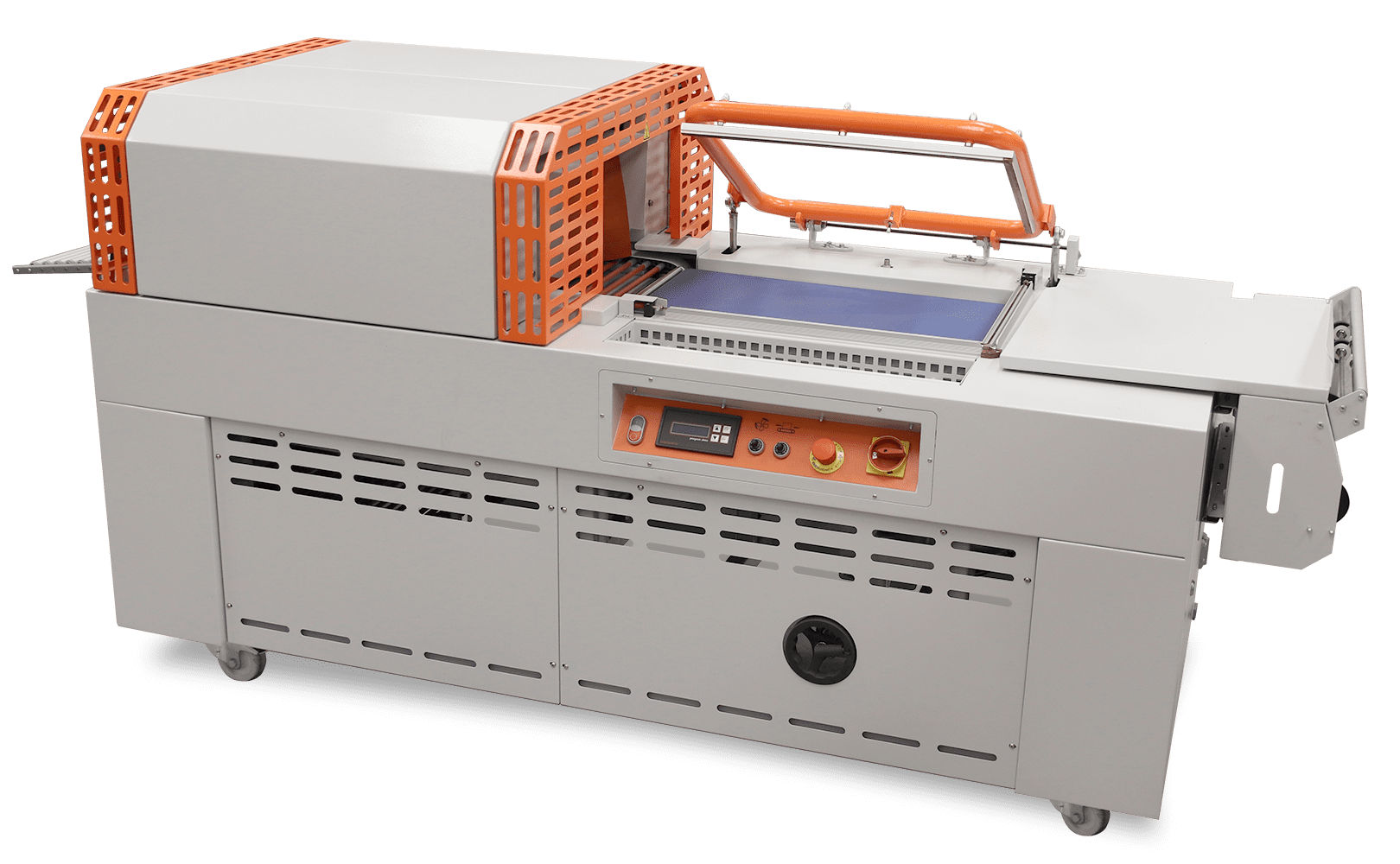

The Clamco 250C Combo Shrink Wrap System combines an L-bar sealer with a shrink tunnel in one robust, compact unit. The 250C features a motorized closing seal bar arm that improves both operator ergonomics as well as production output. The power take-away conveyor quickly transitions product from the sealer to the tunnel. The high flow 6,000 watt tunnel is ideal for effectively shrink wrapping a range of products at a rate of up to 12 packs/min. The 250C Combo Series includes standard features and unique advantages not found on competitive systems in the same class.

Videos

«
Prev
1
/
1
Next
»
loading
play
The Clamco 250C Combo Shrink Wrap System packages a variety of products!
«
Prev
1
/
1
Next
»
loading

Specifications

Model250C Combo
Seal length (end)17"
Seal length (side)23"
Film width (max)20" Centerfold
Tunnel opening width16"
Tunnel opening height 9"
Tunnel inside length22"
Tunnel power (watts)6000 Watts
Electrical Requirements220V, 50 amps, 1 phase
Overall Dimensions106"L x 38"W x 50"H
Shipping weight (approx.)1,650 lbs

Features

L-Bar Sealer Features

  • 17″ x 23″ seal area for shrink wrapping a range of product sizes

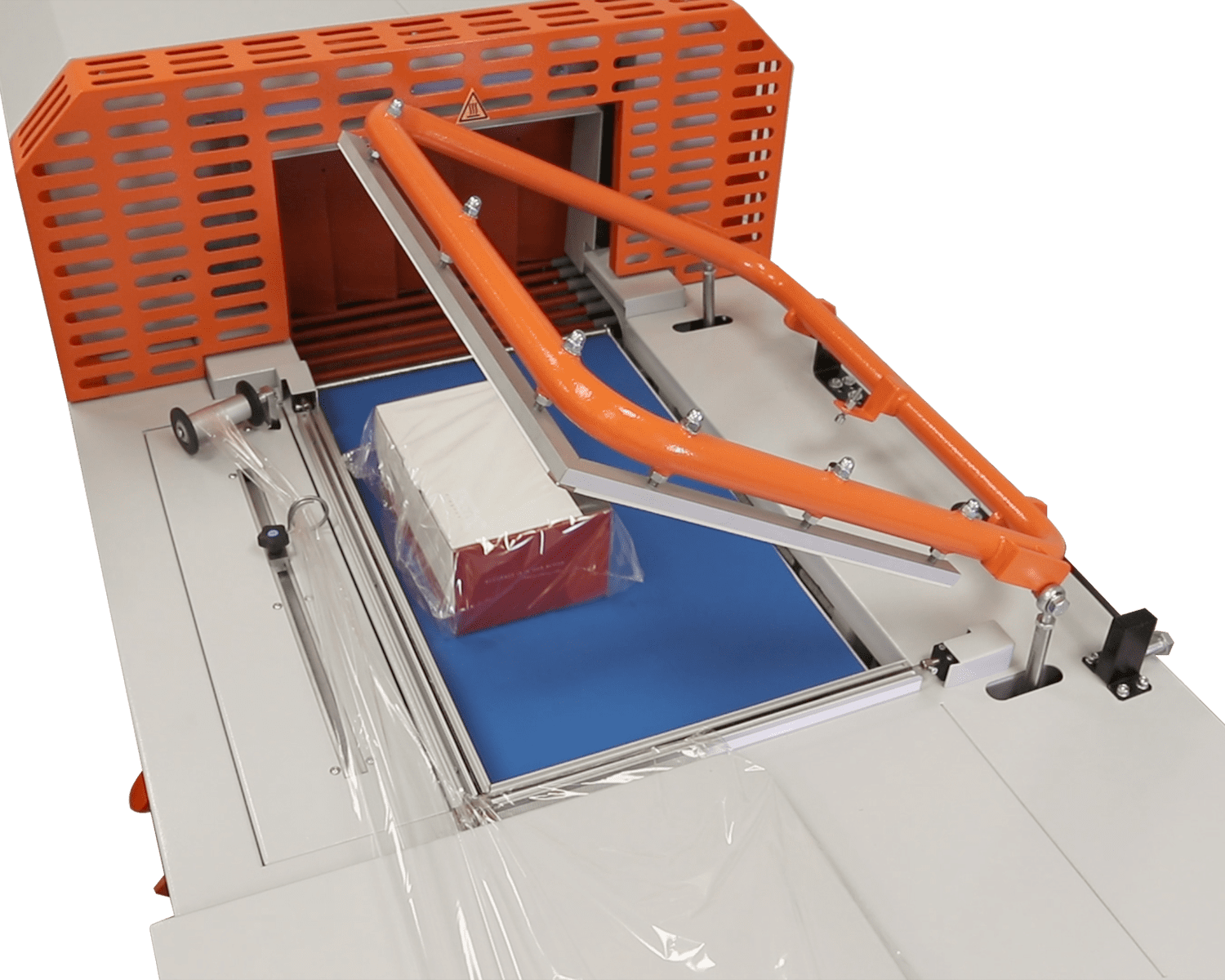

  • Heavy-duty seal arm with motorized closing – push button or auto pace modes
  • Quick height adjustment facilitates centering the seal on the product
  • Heated seal blade for long-lasting performance and easy replacement
  • Adjustable seal power provides high seal repeatability
  • Designed to work with polyolefin up to 150 gauge and PVC up to 100 gauge

Shrink Tunnel Features

  • Tunnel chamber size: 16″ W x 22 “L x 9” H
  • 6,000 watt tunnel heating power provides high performance
  • Digitally-controlled tunnel temperature for superior consistency
  • Heavy-duty blower with adjustable velocity and flow for optimized performance
  • Tunnel conveyor with variable speed and live rollers (1.25” spacing) for a better shrink result
  • Insulated tunnel design minimizes heat loss and maintains temperature consistency

Operating Features

  • User-friendly operator controls for fast, easy and repeatable setup
  • Film cradle can accommodate up to 20″ wide centerfold film
  • Pinwheel perforator wheels for rapid air escape that results in excellent shrink

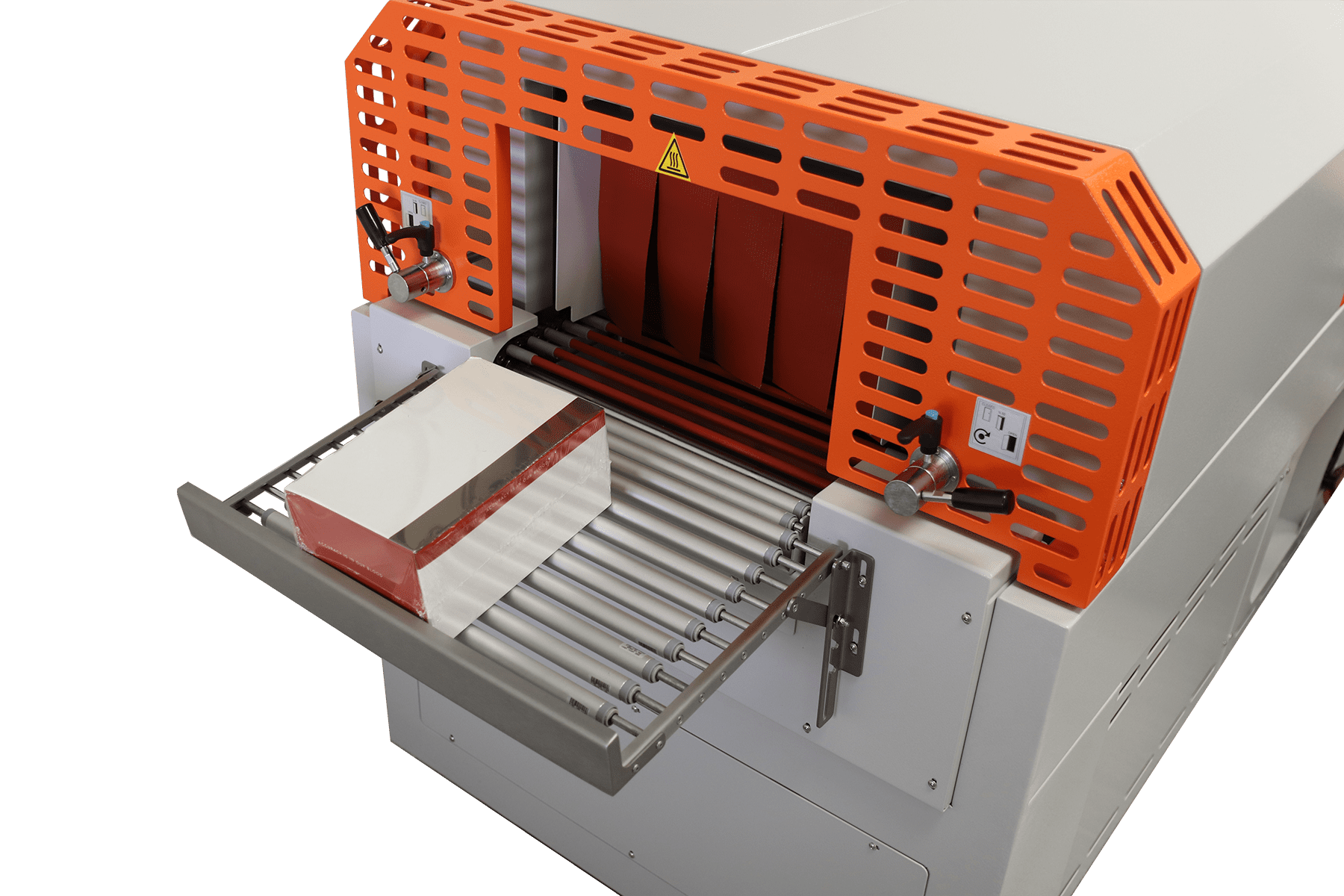

  • 20” long roller outfeed conveyor for package transfer at the end of the process
  • Robust design with welded steel frame and 33” operating height

Safety Features

  • Seal arm obstruction detection for ensured operator safety
  • Automatic cool down for maximum component reliability
  • Quick access to the entire electrical cabinet for easy troubleshooting
  • Designed to meet CE requirements
  • Locking casters for safe, stable operation
  • Emergency stop button

Options

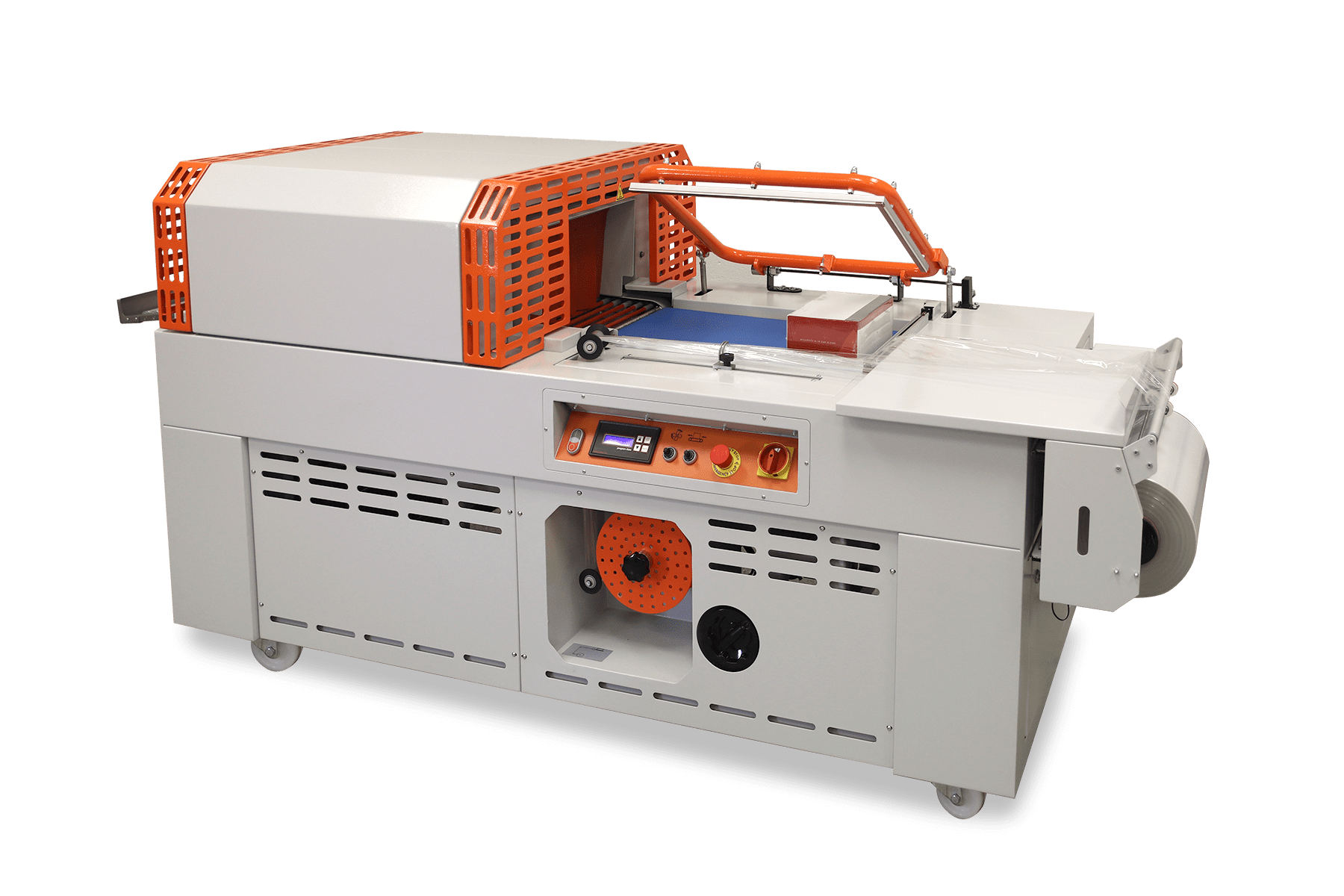

Trim Take-Up Wheel
Rewinds trim to keep work area neat.
Spare Parts Kit
Ideal for companies with in house maintenance

Additional Options

Foot Switch
Operator uses a foot switch to activate the seal bar, allowing operator to use hands to prepare the next product for sealing.

Optical Easy Touch Sensor—magnetic mount
A portable sensor that can be moved to the optimal location for the sealing process. This sensor detects the presence of the operator’s hand on the button and then the machine automatically cycles. This sensor eliminates a step in the packaging process, as the operator does not need to press a button to cycle the machine.
