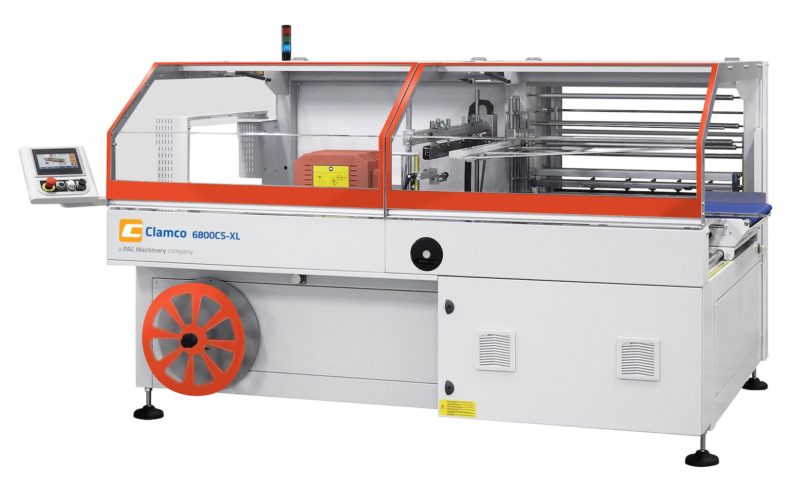

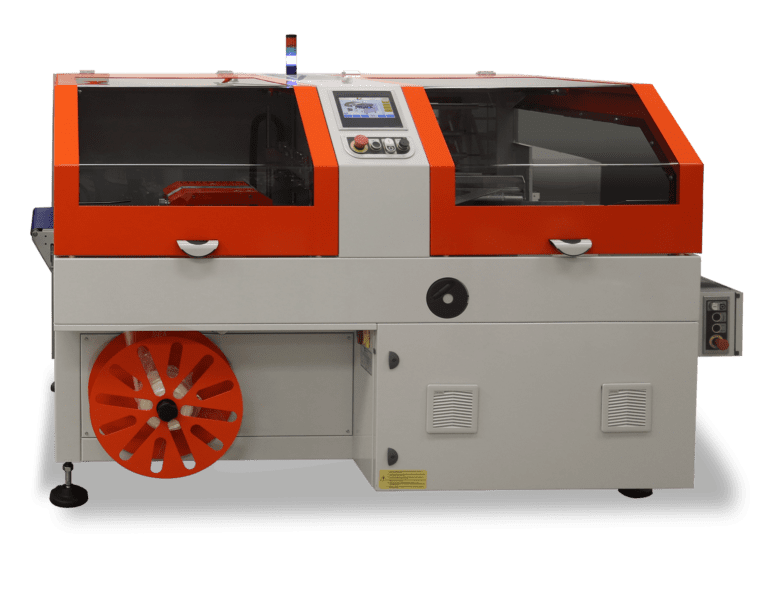

Clamco 6800CS & 6800CS-XL Side Sealer

Automatic Side Seal Shrink Wrapper

High-Performance Side Sealer for Shrink Packaging

Special Promotion – Get 2 days of on-site start-up & training on Automatic Shrink Machines with machine purchase – a A $5,150 Value! (6800CS & xl version machines)

The Clamco 6800CS automatic side sealer is a highly efficient all-electric side sealer that combines a hot knife end seal with an adjustable seal and trim knife. The trim knife is actuated when the product moves past the cross seal. Compared to conventional automatic L-bar sealers, the 6800CS can pack products of any length at high speed.

The 6800CS can deliver conveyor speeds up to 100 ft/ min (140 ft/ min for the 6800CS-XL) and wrap up to 4,200 packs per hour. The system is perfect for polyolefin or polyethylene center folded shrink film. Packages can be as large as 10″ high, 16″ wide on the 6800CS. For the 6800CS-XL version, packages can be as large as 11.75″ high, 24″ wide. Virtually any length is possible on both units.

Read More

Videos

Specifications

Model 6800CS6800CS-XL
Production capacityup to 70 cycles/minup to 70 cycles/min
Conveyor speedup to 100 ft/minup to 140 ft/min
Cross seal bar width19.75"27.5"
Product width (max)16"24"
Product height (max)8"11.75"
Product length (max)unlimitedunlimited
Film width (min - max)13" – 23.5"up to 33.5"
Film roll diameter (max)13.75"13.75"
Electrical220V, 1Ph, 15 amp220V, 1Ph, 15 amp
AirNot requiredNot required
Machine size75" L x 58" W x 60" H 105" L x 75" W x 65"
Shipping weight1,800 lbs2,100 lbs
Warranty2 years2 years

Features

Operating Features

  • Package speed up to 70 per minute for a high production output
  • Smooth Quiet Operation to reduce plant noise levels
  • Easy to navigate interface for operators of most skill levels
  • Display of key packing statistics, including production rate and efficiency
  • Continual monitoring of product length to detect packing errors
  • Film-economizer wheels reduce scrap and improve final package appearance
  • Trim take-up wheel keeps the work area clean
  • Automatic product length detection allows individual or multiple products to be wrapped

Sealing Features

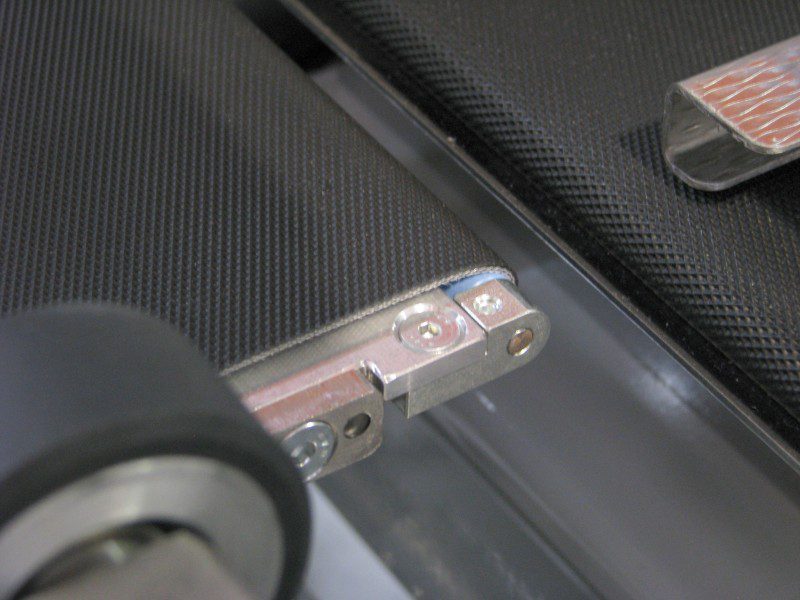

  • Closing conveyor for smooth product transfer (6800CS only)
  • Rounded cross seal bar decreases film breakage
  • PTFE-coated side seal works with most shrink films

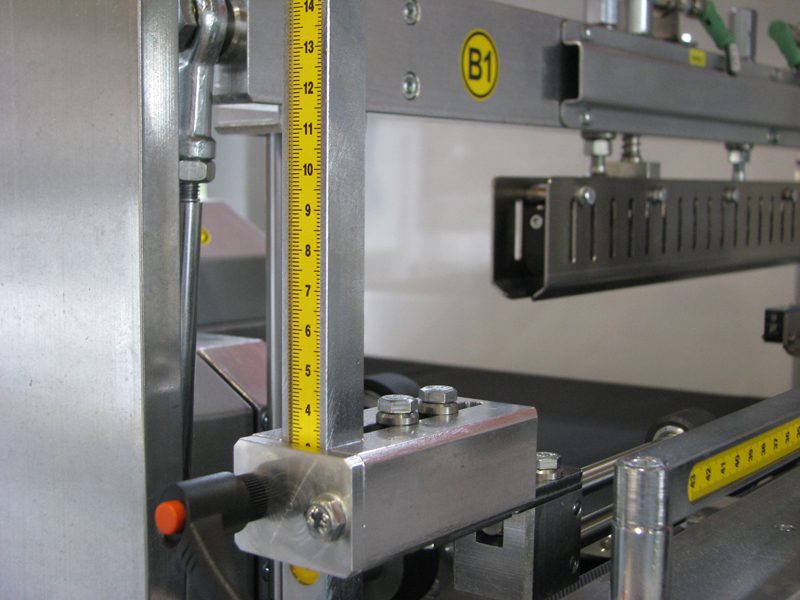

  • Height adjustment of cross seal bar is set up in the job parameters
  • Automatic Seal Centering on both side seal and cross seal for enhanced package appearance

Set-Up Features

  • Low film cradle with film inverter for easy film loading and threading
  • Quick changeover and 50 program memory allows for product setup in less than five minutes
  • Automatic seal centering on both the side seal and the cross seal, for a clean looking package

Safety Features

  • Fully enclosed guarding ensures operator safety
  • Smooth and quiet operation reduces plant noise
  • Compliance with CE regulations ensures improved safety and design
  • Easy to reach emergency stop button

Options

Operating Options

  • Polyethylene cross seal bar to use 0.6 -3 mil polyethylene film
  • Safety photocell to ensure cross seal bar does not make contact with product

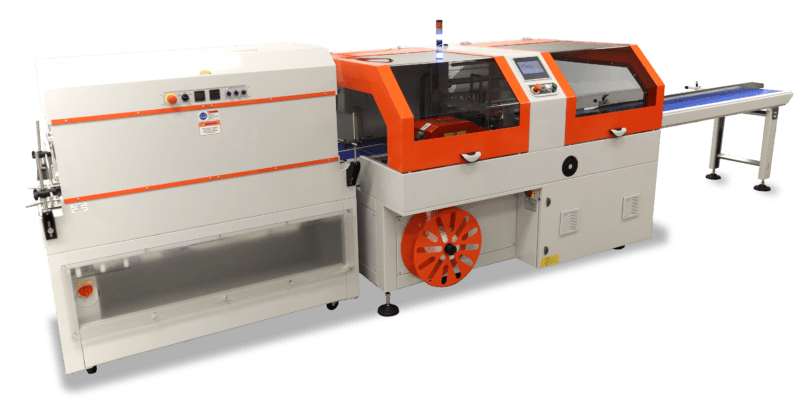

  • 3′ Infeed conveyor
  • 6′ Infeed conveyor
  • Label printer applicator
  • Opaque film sensor
  • Header seal with euro hang hole
