Contimed

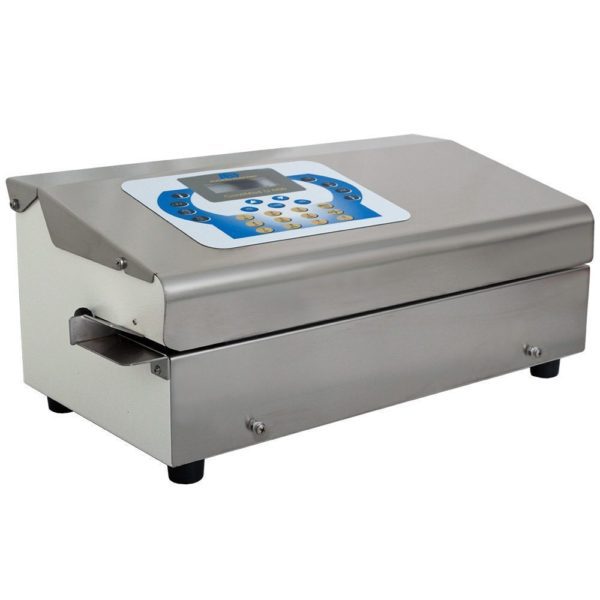

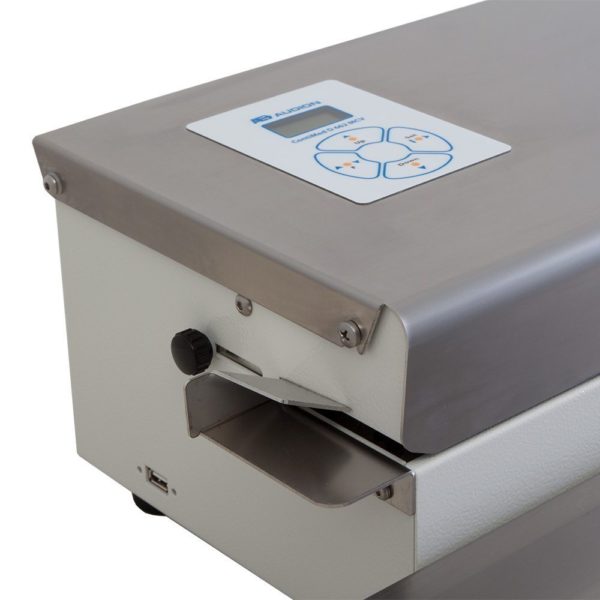

Tabletop Validatable Medical Band Sealers

The Contimed family of tabletop, validatable medical band sealers offers a large selection of interface and control designs. These rotary sealers are designed for sealing and coding medical sterilization pouches, with no compressed air required. The versatile Contimed sealers are designed to effectively seal various pouch materials and thicknesses.

All models feature stainless steel covers and packages move from left to right. For completely reliable validation that is guaranteed, the Contimed family of medical sealers are the preferred choice of medical packagers.

The Contimed Validatable Band Sealers include a 2- year limited warranty.

Videos

«
Prev
1
/
1
Next
»
loading
play

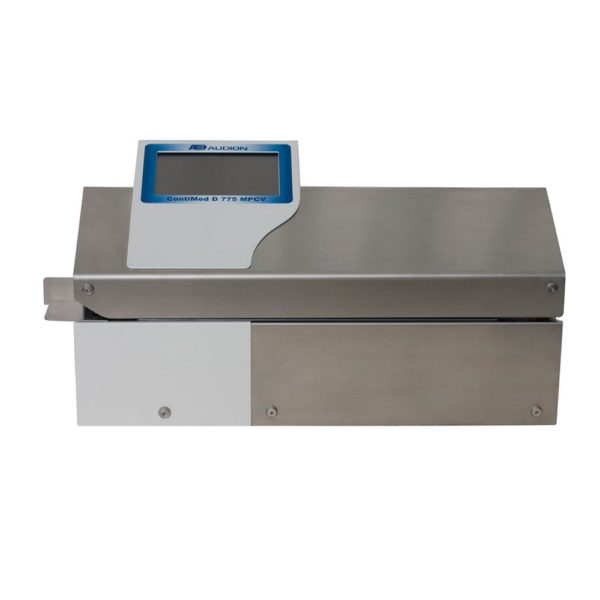

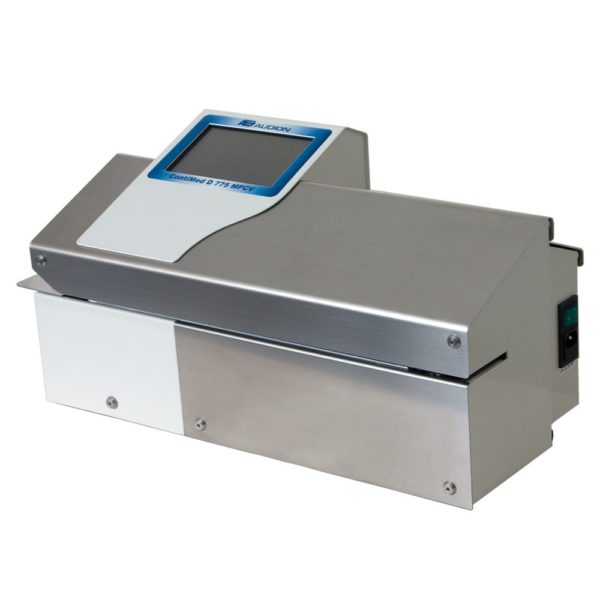

Contimed D775 MPCV - Validatable Tabletop Medical Band Sealer
play
Packaging Aids Contimed 666 continuous sealer
«
Prev
1
/
1
Next
»
loading

Specifications

Contimed ModelD662D666D775
Seal Width1/2", 5–line
1/2", 5–line1/2", 5–line
ValidatableTemperature
Speed
Pressure		Temperature
Speed
Pressure		Temperature
Speed
Pressure
Seal Speed (max)345" /minute385" /minute
385" /minute
Seal Temp. (max)220ºC200ºCmax. 200ºC
LCD DisplayTouchpad, 2–line
digital display		Touchpad, 4–line
digital display		Touchscreen
Internal Matrix Printer —9 dots,
80 characters		18 dots, 2 lines,
120 characters, barcodes
Connectivity1 USB Port2 USB ports, Ethernet2 USB ports, Ethernet
External Lan Traceable
Batch Counter✔✔✔
Dimensions
(W x D x H in)		19 x 10 x 7.522 x 11 x 925 x 12 x 13
Electrical115v, 60Hz
230v, 50Hz
special order		115v, 60Hz
230v, 50Hz
special order		115v, 60Hz
230v, 50Hz
special order

Features

Sealing Features

  • Automatic adjustment of sealing pressure
  • Photocell controlled start signal
  • 1/2” Wide Seal, 5 lines
  • Adjustable bag guide for consistent seal positioning
  • Temperature controller with digital readout to 200ºC
  • Audible alarm and block when seal parameters are not met
  • Ports for USB and ethernet connectivity
  • Designed to effectively package medical devices  in a variety of bag materials

Options

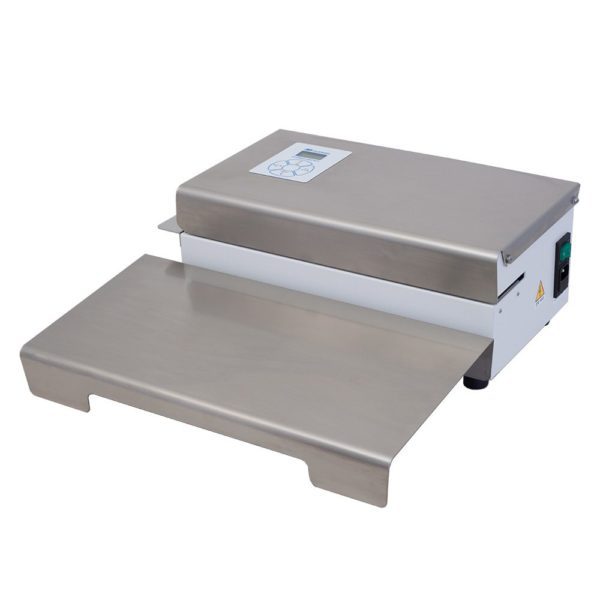

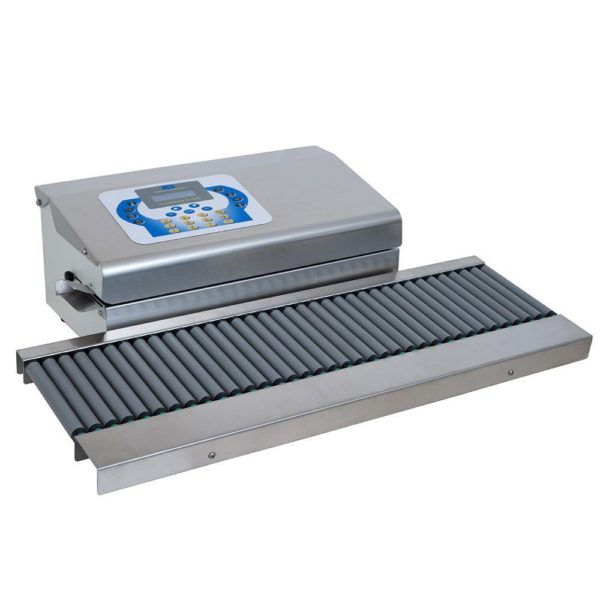

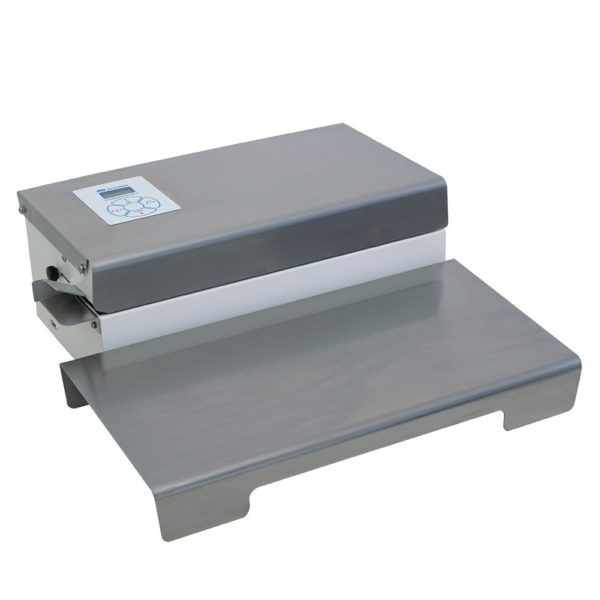

Roller Support Shelf

DOWNLOADS

Contimed Medical Rotary Sealers Datasheet.pdf
