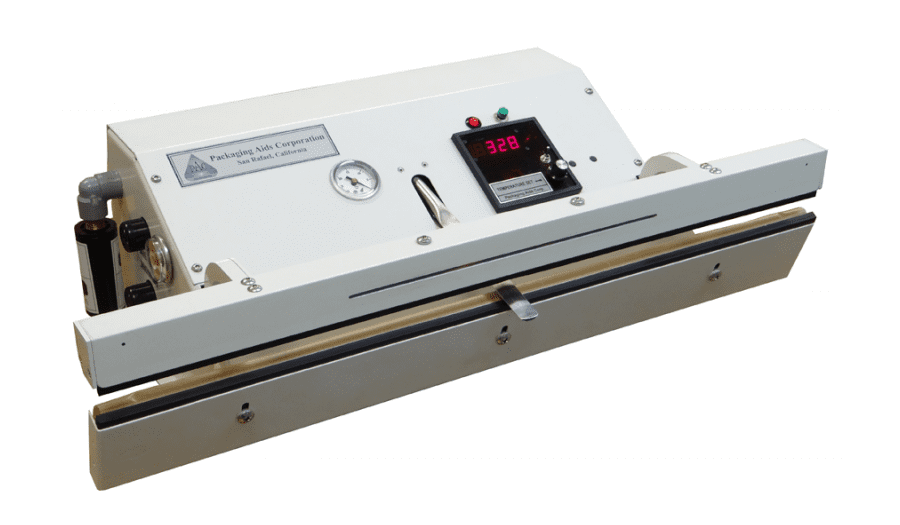

Electro Pac Lite Vacuum Sealer

Tabletop Vacuum Sealer

The Electro Pac Lite tabletop vacuum sealer is designed for the most critical packaging needs. Seal temperature control allows for a perfect seal every time. This vacuum sealer is available in seal lengths of 20″, 25″, and 30″. The Electro Pac Lite has a 5/16″ wide seal element in each jaw to effectively seal foil, laminate, and other thick materials. Standard on this vacuum sealer is a ported exhaust, which combines all exhaust air into one port that can be vented outside a cleanroom.

The Electro Pac Lite tabletop vacuum sealer is made in the USA and includes a 2-year limited warranty.

Financing options from $180/month

Specifications

Technical SpecsElectro Pac Lite Vacuum Sealer
Air Requirement (min)100 psi
Electrical Requirement115V
Dimensions23″ – 33″ W x 8″ H x 15″ D

Features

Sealing

  • Seal Length: 20″, 25″, 30″
  • Seal Width: 5/16″
  • Bi-Active Seal: Top and bottom heated seal bars for thick materials or reducing seal time
  • Seal Only Switch: Retracts nozzles for use as a bag sealer (no vacuum)
  • Pneumatically-operated seal jaws for high pressure sealing

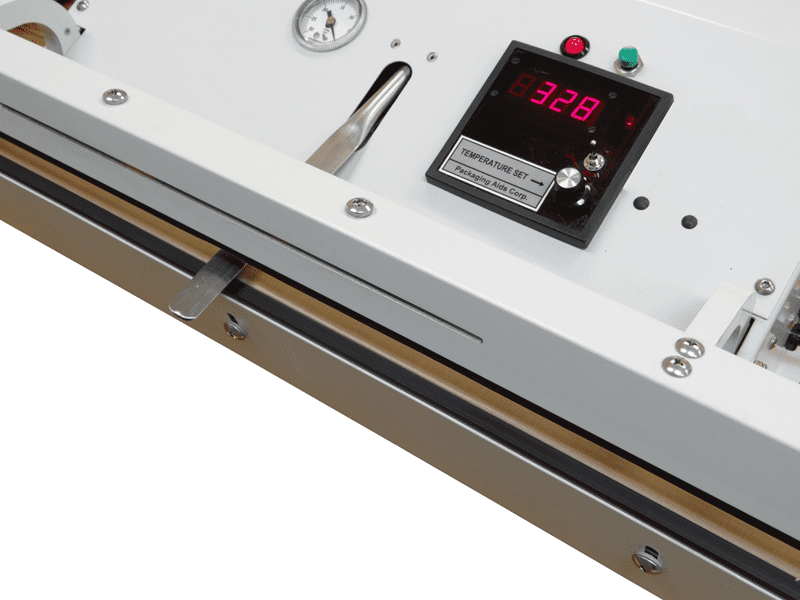

  • Suretemp™ Impulse Temperature Controller: Ensures consistent seal quality (up to 350°F)
  • Independent timers for vacuum, gas, seal, and cool (up to 12s vacuum, 3s gas, seal, and cool)
  • Foot pedal cycle activation

Vacuum System

  • Fast, quiet venturi vacuum system
  • Stainless steel vacuum nozzle
  • Gas flush after vacuum, if required

Versatility

  • Individual controls allow vac only, gas flush only, gas flush after vac, vac after gas flush
  • Ported Exhaust: For plumbing exhaust out of a cleanroom
  • Designed to safely package electronics in a variety of bag materials

Safety

  • Low pressure jaw closing system
  • Automatic jaw interference release

Options

Floor Stand
For use on the floor instead of on a table.
Work Shelf
Supports the product during the packaging cycle (20″ wide x 8″ deep).
220V Operation

Additional Options

Multi-Stage
Perform up to two vacuum and gas cycles to achieve a lower residual oxygen level.

Vacuum Level Sensor
Ensures consistent vacuum levels are achieved every cycle.

Vacuum Relief Valve
Sets a maximum vacuum level to prevent product damage.

Dual Stainless Steel Nozzles
For vacuum packaging two bags at a time.

Seal Jaw Selector Switch
Allows bottom seal jaw to be turned off.

Stainless Steel Construction
For wet or corrosive environments.

CE compliant
