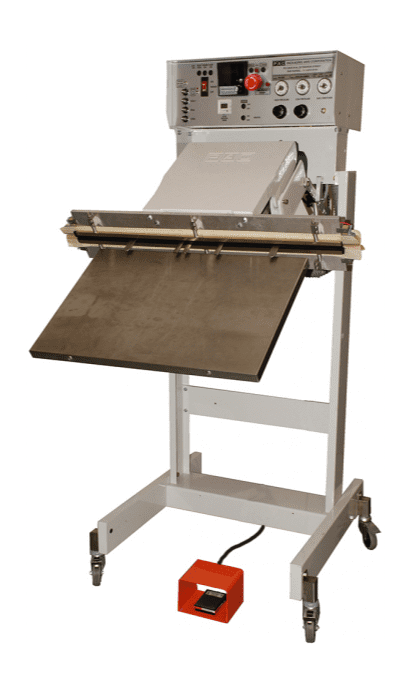

Electro Pac Vacuum Sealer

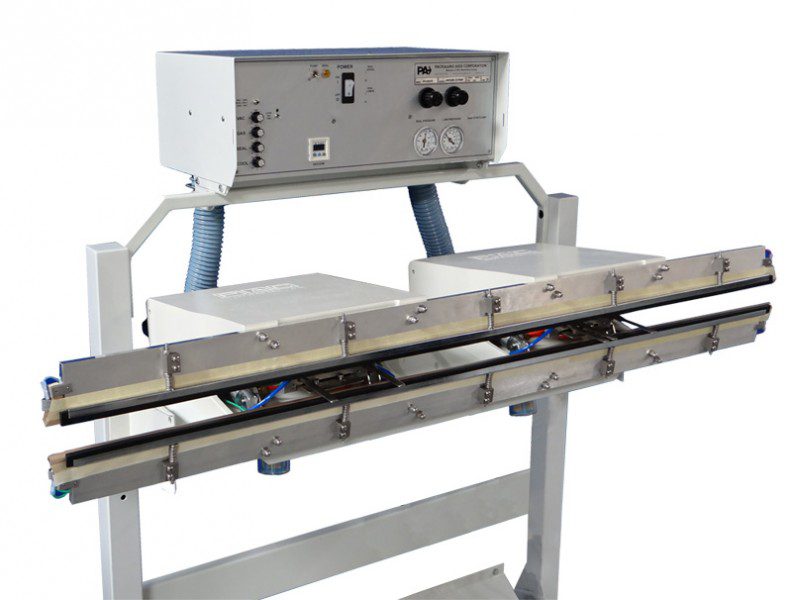

The Electro Pac vacuum sealer is designed for applications in the electronics industry where seal integrity and consistent vacuum level are critical. This vacuum sealer features our Suretemp™ impulse temperature controller to ensure every bag is sealed at the same temperature. The vacuum level sensor, standard on this model, ensures consistent vacuum levels are achieved every cycle. The Electro Pac has a 5/16″ wide seal element in each jaw to effectively seal foil, and laminate, thick materials. This vacuum sealer comes with ported exhaust, which combines all exhaust air into one port that can be vented outside a cleanroom. It also has the ability to flush a gas (e.g. nitrogen) into the bag, prior to sealing, for modified atmosphere packaging. The Electro Pac is available in seal lengths from 12″ – 60″ (42″ – 60″ with twin head).

The Electro Pac Vacuum Sealer is made in the USA and includes a 3-year limited warranty.

Financing options from $250/month



  • Seal Length: 12″, 18″, 24″, 30″, 36″, 42″ – 60″ with twin head
  • Seal Width: 5/16″
  • Bi-Active Seal: Top and bottom heated seal bars for thick materials or reducing seal time
  • Bag Stretcher: Fingers fit inside edges of the bag to minimizes wrinkles in the seal area
  • Seal Only Switch: Retracts nozzles for use as a bag sealer (no vacuum)
  • Pneumatically-operated seal jaws for high pressure sealing
  • Suretemp™ Impulse Temperature Controller: Ensures consistent seal quality (up to 350°F)
  • Independent timers for vacuum, seal, and cool (up to 15s vacuum, 3.75s gas, seal, and cool
  • Pressure-evening system for sealing thick or gusseted bags
  • Foot pedal cycle activation

Vacuum System

  • Fast, quiet venturi vacuum system
  • Two high flow, stainless steel nozzles
  • Gas flush after vacuum, if required, for modified atmosphere packaging
  • Vacuum Level Sensor: Ensures consistent vacuum levels are achieved every cycle


  • Individual controls allow vacuum only, gas flush only, or gas flush after vacuum
  • Ported Exhaust: For plumbing exhaust out of a cleanroom
  • Work Shelf & Bag Support: Supports the product during the packaging cycle
  • Designed to safely package electronics in a variety of bag materials


  • Locking Control Box Cover: Cover on control cabinet to prevent unauthorized setting changes
  • Emergency Stop Button
  • Low pressure jaw closing system
  • Automatic jaw interference release


Vacuum Options

  • Multi-Stage: Up to two vacuum and two gas cycles, to achieve lower residual oxygen level
  • Cycle Multiplier: Up to 99 vacuum and 99 gas cycles, to achieve even lower residual oxygen level
  • Vacuum Relief Valve: Sets a maximum vacuum level to prevent product damage
  • Nozzle Extend Control: Manually extend vacuum nozzles, for bulky bags
  • Larger Nozzles: For vacuuming the air out of the bag faster
  • Profiled Nozzles: Narrow radius on nozzles for more vacuum on thick materials

Seal Options

  • Water Cooling: Prevents excessive heat build up in the jaws during high speed sealing
  • High Pressure Seal: Increases seal pressure for heavy materials and gusseted bags
  • Extra Seal Power: Additional seal transformer for continuous production at high rates
  • Trim Wire: Leaves a finished sealed edge on the bag
  • Twin Seals: Two parallel 1/8″ seals (one side heat only)
  • Bag Stop: Allows bag to always be sealed in the same location

Safety Options

  • Two Stage Cycle Engagement: Jaws close by foot pedal, cycle initiated by dual palm buttons
  • Dual Palm Buttons: Prevent operator contact with seal jaws during closure
  • Crank Adjustable Frame: Adjust the operating height of the machine for improved ergonomics

Other Options

  • Anti-Particle Wear System – designed to meet class 10 (ISO 4) cleanroom requirements
  • Hot Embosser: Up to 8 brass characters 3/8″ above the seal
  • Hot Stamp Printer: Hot embosser with thermal transfer ribbon
  • NEMA Enclosure: Isolate electrical and pneumatic components from environmental conditions
  • Stainless Steel Construction: For wet or corrosive environments
  • Short Stand: Allows machine to be fastened down to a table (requires venturi vacuum)
  • Integrated Air Compressor
  • 230V Operation
  • CE Compliant
  • Casters
