Med Pac

Validatable Impulse Sealer

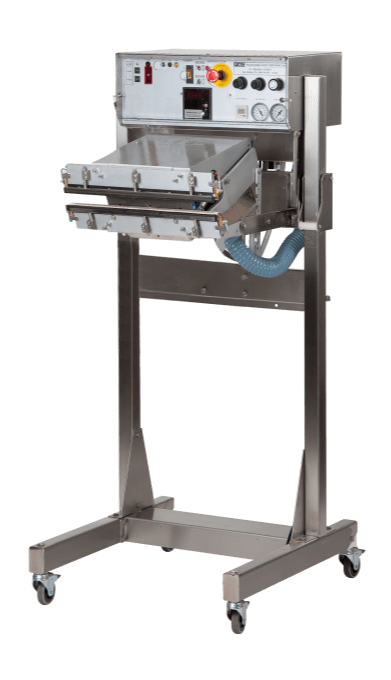

Packaging Aids Med Pac sealer is a fully validatable medical impulse sealer designed to comply with the stringent guidelines of ISO 11607 terminally sterile packaging requirements. This industrial grade pouch sealer is intended for medical and other industrial applications where control of process parameters is critical and seal validation is required. External verification ports allow for easy verification and calibration of internal controllers for IQ/OQ processes.

The Med Pac line of validatable sealers are capable of producing consistent hermetic seals in a wide range of materials. Temperature control coupled with digital seal and cool timers provides the ability to dial in settings for most any pouch or bag sealing application. Standard bi-active sealing jaws and jaw selector switch enable use with single or double-sided heat giving the versatility to seal Tyvek®, heavy foils, and/or more complex materials.

Read More

Features

Sealing Features

  • Seal Lengths: 18”, 24”, 30”, 36”
  • Seal Width: 5/16”
  • Bi-active jaws (top and bottom heated bars) with selector switch permitting heat from either or both jaws
  • Pneumatically operated sealing jaws for high pressure sealing
  • Independent digital seal and cool timers
  • Digital sealing pressure switch with adjustable band to set high and low tolerances

Temperature Control Features

  • Temperature controller with digital readout to 350° F, accurate to +/- 3° F (high temp optional)
  • Dual thermocouple sensors monitor heated jaws selected by operator (Top, Bottom, or Both)
  • Adjustable temperature band for high and low alarm tolerances
  • Seal time begins when set temperature is achieved to prevent inconsistencies with heat build up in sealing jaws, ensuring repeatable seals

Medical Control Features

  • ISO 11607 Compliant
  • Fully calibratable pressure switch and temperature controller
  • External ports in control cabinet for verification and calibration of internal controllers
  • Real time seal process parameter monitoring (Temperature, Pressure, Time)
  • Alarm function prevents operation when there is a deviation from validated settings

Safety Features

  • Pneumatic low-pressure jaw close with release if obstruction is detected
  • Jaw close time out with release when delay is detected
  • Locking control box cover to prevent unpermitted access
  • Heavy duty seal transformer(s) with thermal overload protection
  • Emergency stop button on control panel

Versatility

  • Stainless Steel frame and cabinet for ease of cleaning and sterilization
  • Ported Exhaust for plumbing exhaust outside of a cleanroom to prevent contamination
  • Adjustable sealing head position for vertical to horizontal use
  • Designed to effectively package medical devices in a wide variety of bag materials

Specs

  • Foot switch cycle activation
  • Air Requirement (min): 100 psi
  • Electrical Requirement:  115v standard (230v optional)
  • 3 year limited warranty
  • Made in USA

Options

Bag Stretcher
Assists proper positioning of pouch and prevent wrinkles in seal.
Work Shelf
(24” wide x 16” deep).
220 Volt
Single phase electrical.

Additional Options

Double Set-Point Temp Control
(Seal Temp/ Cool Temp).

Extra Power
Higher duty cycle (12” / 18” / 24”).

Verification timer for IQ/OQ/PQ
(plugs into external time port).

Adjustable Bag Support
(24” wide).

Crank Adjustable Frame

Locking Swivel Casters
For moving machine to different locations.
