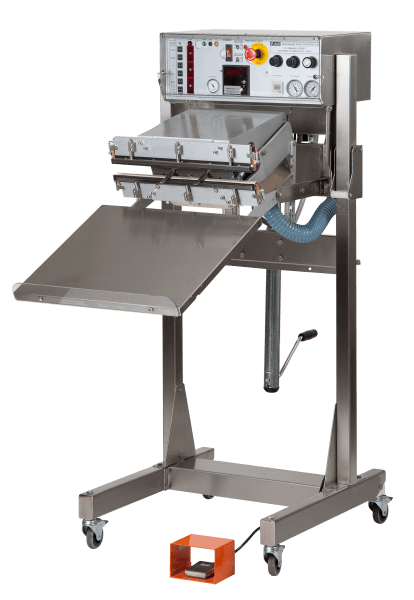

Validatable Vacuum Sealer

The PAC Med Vac sealer is a fully validatable medical vacuum sealer designed to comply with the stringent guidelines of ISO 11607 terminally sterile packaging requirements. This industrial grade sealer is intended for medical and other industrial applications where control of process parameters is critical and seal validation is required. External verification ports allow for easy verification and calibration of internal controllers for IQ/OQ processes.

The Med Vac line of validatable sealers are capable of producing consistent hermetic seals in a wide range of materials. Temperature control coupled with digital seal and cool timers, provide the ability to dial in settings for almost any pouch or bag sealing application. Standard bi-active sealing jaws (top and bottom jaws heated) and jaw selector switch enable use with single or double-sided heat giving the versatility to seal Tyvek ™, heavy foils, and/or more complex materials. A Seal-Only switch retracts the vacuum nozzles from the sealing jaws to permit unobstructed use as an impulse sealer.

Med Vac Validatable Vacuum Sealer - Packaging Surgical Kits

Med Vac Medical Vacuum Sealer - Packaging Catheters

Features

Sealing Features

Seal Lengths: 18″, 24″, 30″, 36″, 48″ (Twin head, 4 vacuum nozzles)
Seal Width: 5/16″
Bi-active jaws (top and bottom heated bars) with selector switch permitting heat from either or both jaws
Pneumatically operated sealing jaws for high pressure sealing
Independent digital seal and cool timers
Digital sealing pressure switch with adjustable band to set high and low tolerances
Seal Only switch to disable vacuum and retract the nozzle for use as an impulse sealer

Temperature Control Features

Temperature controller with digital readout to 350° F, accurate to +/- 3° F (high temp optional)
Dual thermocouple sensors monitor heated jaws selected by operator (Top, Bottom, or Both)
Adjustable temperature band for high and low alarm tolerances
Seal time begins when set temperature is achieved to prevent inconsistencies with heat build up in sealing jaws, ensuring repeatable seals

Vacuum & Gas Flush Features

Venturi Vacuum pump for quiet operation and fast evacuation of air (1/4 hp and hp electric vacuum pumps optional)
Dual Vacuum/Gas Flush Nozzles (snorkels) to accommodate narrow or wide bags
Digital timers for each stage of vacuum and gas flush (when applicable), up to 10 seconds
Up to 2 stages of vacuum and 2 stages of gas flush

MedPAC Medical Control Features

ISO 11607 Compliant
Fully calibratable pressure switch and temperature controller
External ports in control cabinet for verification and calibration of internal controllers
Real time seal process parameter monitoring (Temperature, Pressure, Time)
Alarm function prevents operation when there is a deviation from validated settings

Safety Features

Pneumatic low-pressure jaw close with release if obstruction is detected
Jaw close time out with release when delay is detected
Heavy duty seal transformer(s) with thermal overload protection
Emergency stop button on control panel

Versatility

Stainless Steel frame and cabinet for ease of cleaning and sterilization
Locking Control Box cover to prevent unauthorized access to adjust settings
Ported Exhaust for plumbing exhaust outside of a cleanroom to prevent contamination
Adjustable sealing head position for vertical to horizontal use (Crank adjustable height optional)
Designed to effectively package medical devices in a wide variety of bag materials

Specs

Foot switch cycle activation (Dual palm control optional)
Air Requirement (min): 100 psi
Electrical Requirement: 115v standard (230v optional)
3 year limited warranty
Made in USA

Options

Muti-stage Vacuum/ Gas Cycles: Permits greater oxygen removal for modified atmosphere packaging
Vacuum Level Switch: With probe for consistent levels in each package
Vacuum Relief Valve: Prevents product damage
Foot Switch Vacuum: Prevents product damage
Double Set-Point Temperature Controller: (Seal Temp / Cool Temp)
Extra Power/ Higher Duty Cycle: (12″ / 18″ / 24″ seal lengths)
Verification Timer: Plugs into time port for displaying and verifying actual seal time
Motorized Crank Adjustable Frame: Positions sealing head
Locking Swivel Casters: For easily moving machine to different locations
Bag Stretcher: Assists proper fitting of bags into seal jaws avoiding wrinkles in the seal area
Stainless Steel Work shelf: Simplifies bag positioning by supporting the product
Stainless Steel Bag Support: Used in conjunction with work shelf
Dual Palm Control: (Anti-tie down) cycle activation
Two-Stage Cycle Activation: Jaws closed under low pressure by foot switch for bag positioning, cycle activated by dual palm switches
