PVB Vacuum Sealer

Constant Heat Vacuum Sealer

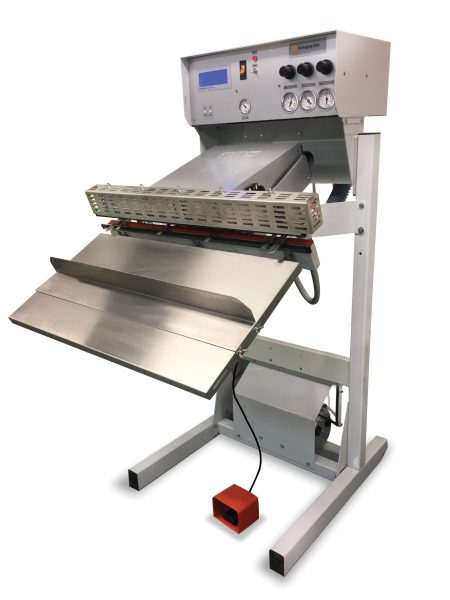

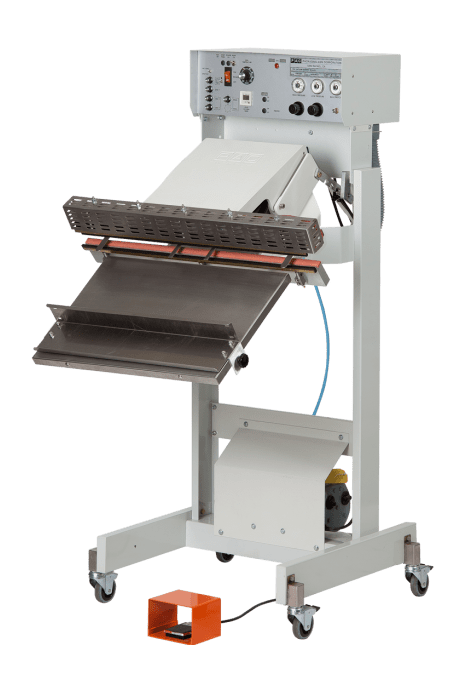

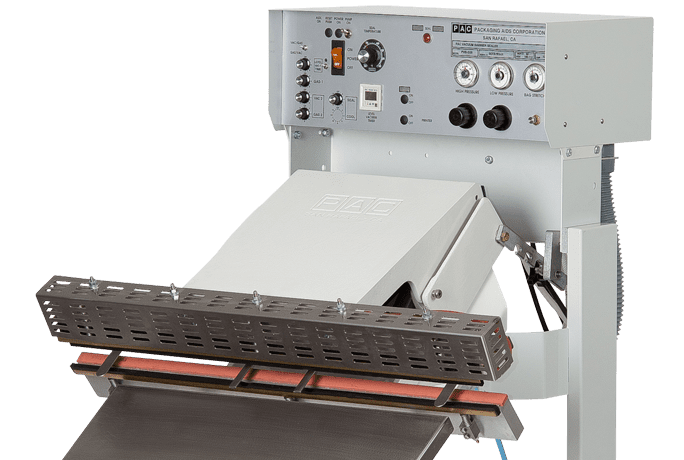

The PVB Constant Heat Vacuum Sealer has all the available features of our PB constant heat sealer, with the added capability of vacuum and gas flush for applications requiring modified atmosphere packaging (MAP). Unlike our other vacuum sealers that use a heat and cool cycle during sealing (impulse), the PVB has constantly heated seal jaws. Like the PB, the PVB is designed to vacuum seal MIL spec barrier bags, coated paper, film and foil laminates.

The PVB Constant Heat Sealer comes standard with a 3/4” wide constant heat flat seal in the top jaw, which can be heated to 550 °F. Other seal bar configurations include top and bottom (bi-active) heat, as well as 1/2″ or 1″ serrated jaws.

The PVB Constant Heat Vacuum Sealer is made in the USA and includes a 3 year limited warranty.

Features

  • Seal Length: 12″, 18″, 24″, 30″, 36″, 48″ (36″ and 48″ with twin head)
  • Seal Width: 3/4″ wide constant heat flat seal in top jaw
  • Maximum Seal Temperature: 550 °F
  • 1/4 HP electric vacuum pump
  • Dual Stainless Steel Nozzles: For vacuum packaging two bags at a time
  • Gas flush capability for modified atmosphere packaging (MAP)
  • High/low pressure gauges for monitoring jaw closure and seal pressure
  • Independent timers for vacuum, gas, and seal (up to 15s vacuum, 3.75s gas and seal)
  • Adjustable head angle for horizontal or vertical use
  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected
  • Foot pedal cycle activation
  • Air requirement (min): 100 psi
  • Electrical requirement: 115V
  • Dimensions: 30″ – 35″ W x 58″ H x 32″ D
  • Made in USA

Options

Vacuum Options

  • Multi-Stage: Up to two vacuum and two gas cycles, to achieve lower residual oxygen level
  • Vacuum Level Sensor: Ensures consistent vacuum levels are achieved every cycle
  • Vacuum Relief Valve: Sets a maximum vacuum level to prevent product damage
  • Venturi Vacuum Pump: For quiet operation and low maintenance
  • Nozzle Extend Control: Manually extending vacuum nozzles, for bulky bags
  • Larger Nozzles: For vacuuming the air out of the bag faster
  • Profiled Nozzles: Narrow radius on nozzles for more vacuum on thick materials

Seal Options

  • Bag Stretcher: Fingers fit inside edges of the bag to minimizes wrinkles in the seal area
  • Teflon Jaw Cover
  • Bi-Acitve (both jaws heated) seal –  3/4″ flat seal or 1/2″ serrated seal
  • Serrated Seal – 1″ or 1/2″
  • Work Shelf & Bag Support: Supports the product during the packaging cycle
  • Seal Only Switch: Retracts nozzles for use as a bag sealer (no vacuum)
  • Bag Stop: Allows bag to always be sealed in the same location

Safety Options

  • Emergency Stop Button
  • Two Stage Cycle Engagement: Jaws close by foot pedal, cycle initiated by dual palm buttons
  • Locking Control Box Cover: Cover on control cabinet to prevent unauthorized setting changes
  • Dual Palm Buttons: Prevent operator contact with seal jaws during closure
  • Motorized Crank Adjustable Frame: Adjust the operating height of the machine for improved ergonomics

Other Options

  • Hot Embosser: Up to 8 brass characters 3/8″ above the seal
  • Hot Stamp Printer: Hot embosser with thermal transfer ribbon
  • NEMA Enclosure: Isolate electrical and pneumatic components from environmental conditions
  • Ported Exhaust: For plumbing exhaust out of a cleanroom
  • Stainless Steel Construction: For wet or corrosive environments
  • Short Stand: Allows machine to be fastened down to a table (requires venturi vacuum)
  • Integrated Air Compressor
  • 230V Operation
  • CE Compliant
  • Casters

DOWNLOADS

Vacuum Packaging Brochure
