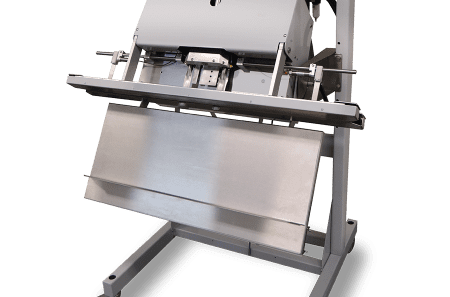

PVK Industrial Vacuum Sealer

Industrial Impulse Vacuum Sealer

The heavy duty, high production, PVK industrial impulse vacuum sealer may be used for vacuum and/or gas purge applications, including those requiring modified atmosphere packaging (MAP). With its “open head design” for fast and easy bag loading, the PVK industrial vacuum sealer delivers both speed and flexibility for high volume packaging applications.

The PVK industrial vacuum sealer can be customized with many options such as a venturi vacuum system, multiple vacuum and gas flush cycles, bag stretcher, vacuum level sensor, temperature controller, and many others depending on the specific application.

The PVK Industrial Vacuum Sealer is made in the USA and includes a 3 year limited warranty.

Videos

«
Prev
1
/
1
Next
»
loading
play
PVK Med Vacuum Sealer - Packaging Surgical Kits overview
«
Prev
1
/
1
Next
»
loading

Features

  • Seal Length: 30″, 36″, 42″, 48″
  • Seal Width: 5/16″ in top and bottom seal jaws
  • 3/4 HP electric vacuum pump
  • Dual Large Stainless Steel Nozzles
  • Gas flush capability for modified atmosphere packaging (MAP)
  • Open-head design provides easy access to bag positioning
  • High/low pressure gauges for monitoring jaw closure and seal pressure
  • Pressure-evening system forsealing thick or gusseted bags
  • Thermal impulse time control system
  • Independent timers for vacuum, seal, and cool (up to 15s vacuum, 3.75s gas, seal, and cool)

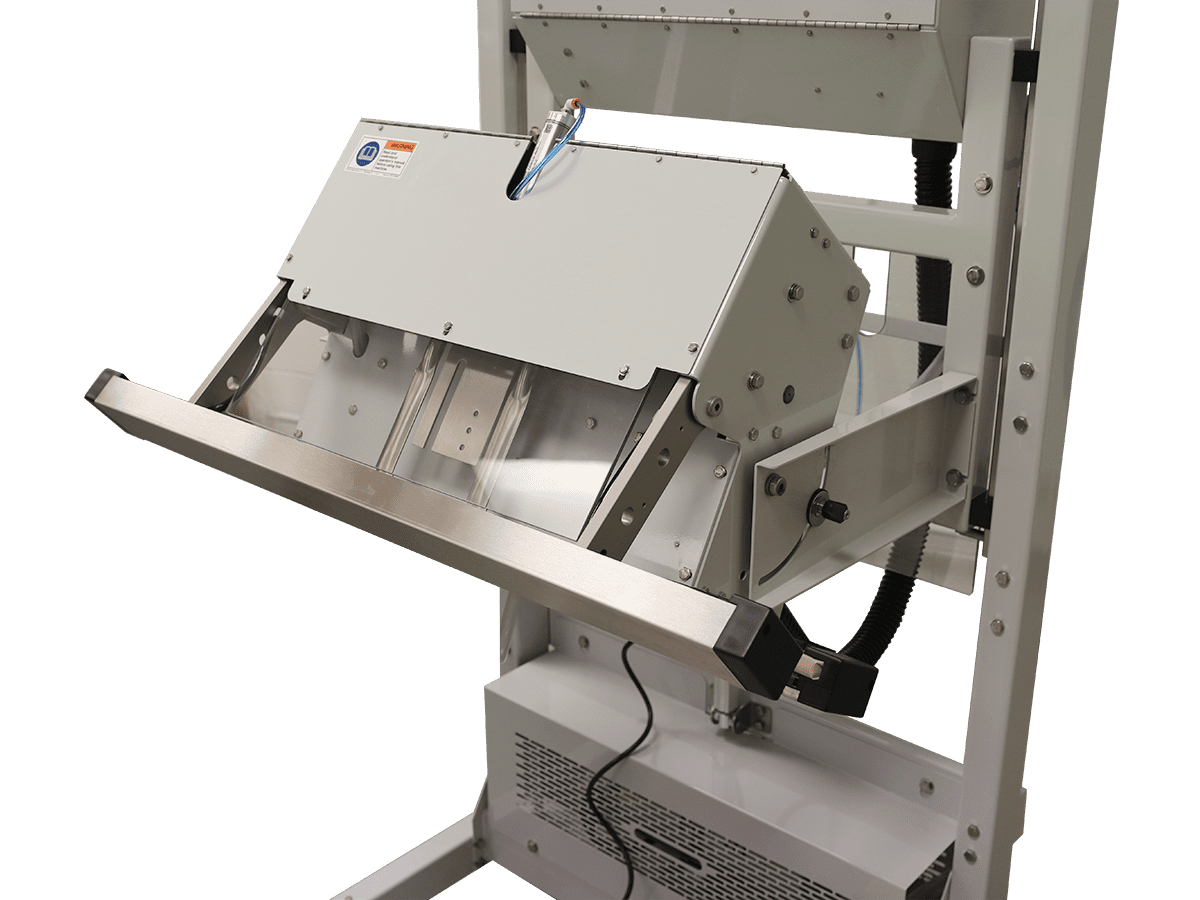

  • Adjustable head angle for horizontal or vertical use
  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected
  • Foot pedal cycle activation
  • Air requirement (min): 100 psi
  • Electrical requirement: 220V
  • Dimensions: 33″ – 51″ W x 58″ H x 32″ D
  • Made in USA

Options

Vacuum Options

  • Multi-Stage: Up to two vacuum and two gas cycles, to achieve lower residual oxygen level
  • Vacuum Reserve Tank: Shortens vacuum time by increasing vacuum pressure at cycle start
  • Vacuum Level Sensor: Ensures consistent vacuum levels are achieved every cycle
  • Vacuum Relief Valve: Sets a maximum vacuum level to prevent product damage
  • Venturi Vacuum Pump: For quiet operation and low maintenance
  • Nozzle Extend Control: Manually extend vacuum nozzles, for bulky bags
  • Longer Vacuum Nozzles

Seal Options

  • Bag Stretcher: Fingers fit inside edges of the bag to minimizes wrinkles in the seal area
  • Workshelf & Bag Support: Supports the product during the packaging cycle
  • SureTemp Temperature Controller: Ensures consistent seal quality (up to 350°F)
  • Water Cooling: Prevents excessive heat build up in the jaws during high speed sealing
  • High Pressure Seal: Increases seal pressure for heavy materials and gusseted bags
  • Extra Seal Power: Additional seal transformer for continuous production at high rates
  • Seal Only Switch: Retracts nozzles for use as a bag sealer (no vacuum)
  • Seal Jaw Selector Switch: Allows bottom seal jaw to be turned off
  • Bag Stop: Allows bag to always be sealed in the same location

Safety Options

  • Emergency Stop Button
  • Two Stage Cycle Engagement: Jaws close by foot pedal, cycle initiated by dual palm buttons
  • Locking Control Box Cover: Cover on control cabinet to prevent unauthorized setting changes
  • Dual Palm Buttons: Prevent operator contact with seal jaws during closure
  • Motorized Crank Adjustable Frame: Adjust the operating height of the machine for improved ergonomics

Other Options

  • NEMA Enclosure: Isolate electrical and pneumatic components from environmental conditions
  • Ported Exhaust: For plumbing exhaust out of a cleanroom
  • Stainless Steel Construction: For wet or corrosive environments
  • Pallet Packaging Configuration (50” support spacing, 25” seal bar overhang)
  • Integrated Air Compressor
  • CE Compliant
  • Casters

DOWNLOADS

Vacuum Packaging Solutions Brochure
