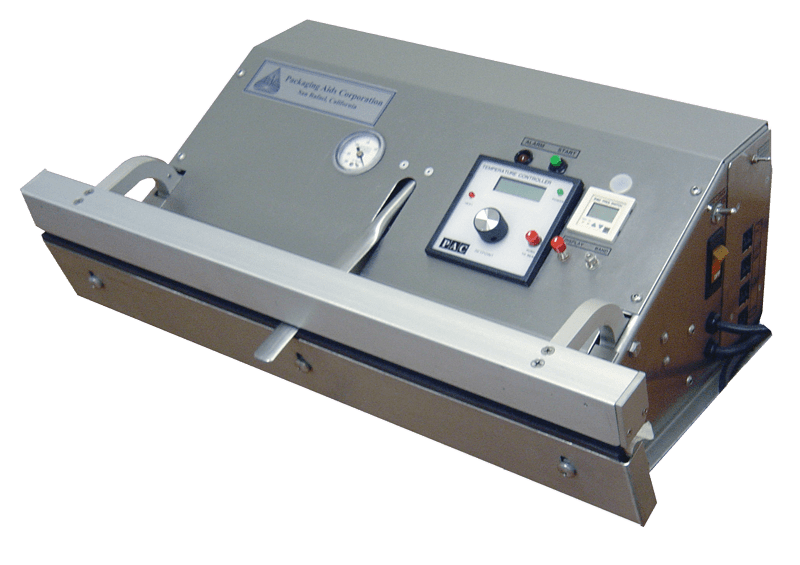

PAC PVT Med

Validatable Vacuum Sealer

The PAC PVT Med is a fully validatable medical vacuum sealer designed to comply with the stringent guidelines of ISO 11607 terminally sterile packaging requirements. The PVT Med is a compact tabletop vacuum sealer intended for medical and other industrial applications where control of process parameters is critical and seal validation is required.

PAC medical vacuum sealers are capable of producing quality hermetic seals in a wide range of materials with consistency and repeatability. The PVT Med is equipped with PAC’s medical control system. It is a precise temperature based system with real-time monitoring of all sealing parameters for applications requiring seal validation. Built-in alarm functions prevent operation when outside of validated settings. External ports in the control cabinet allow for verification and calibration of internal controllers, a requirement for IQ/OQ processes.

Read More

Videos

Specifications

Technical SpecsPac PVT Med
Air Requirement (min)100 psi
Electrical Requirement115V standard (230v optional)
Dimensions23″ – 33″ W x 8″ H x 15″ D
Warranty2 year limited
Country of ManufactureMade in USA

Features

Sealing Features

  • Seal Lengths: 20″, 25″, 30″
  • Seal Width: 5/16″
  • Single side impulse heater bar with opposing pressure bar (top jaw heated)
  • Pneumatically operated sealing jaw for high pressure sealing
  • Independent digital seal and cool timers
  • Digital sealing pressure switch with adjustable band to set high and low tolerances
  • Seal Only switch to disable vacuum and retract the nozzle for use as an impulse sealer

Temperature Control Features

  • Temperature controller with digital readout to 350° F (high temp optional)
  • Adjustable temperature band for high and low alarm tolerances
  • Seal time begins when set temperature is achieved to prevent inconsistencies with heat build up in sealing jaws, ensuring repeatable seals

Vacuum & Gas Flush Features

  • Type 60 Venturi Vacuum pump for fast evacuation of air
  • Single Vacuum/Gas Flush Nozzle (snorkel) to accommodate narrow or wide bags
  • Digital timers for each stage of vacuum and gas flush (when applicable), up to 10 seconds

MedPAC Medical Control Features

  • ISO 11607 Compliant
  • Fully calibratable pressure switch and temperature controller
  • External ports in control cabinet for verification and calibration of internal controllers
  • Real time seal process parameter monitoring (Temperature, Pressure, Time)
  • Alarm function prevents operation when there is a deviation from validated settings

Safety Features

  • Spring close jaw safety system with release if obstruction is detected
  • Jaw close time out with release when delay is detected
  • Heavy duty seal transformer(s) with thermal overload protection

Versatility

  • Ported Exhaust for plumbing exhaust outside of a cleanroom
  • Stainless Steel Construction to mitigate particle contamination
  • Designed to effectively package medical devices in a wide variety of bag materials

Options

  • Bi-Active Heat: (Top and Bottom heated jaws) for sealing thick or complex materials
  • Vacuum Level Sensor: For precise control of vacuum achieved in each package
  • Multi-Stage Capability: For consecutive cycles of Vac/Gas/Vac/Gas prior to sealing. This method often achieves lower residual oxygen levels faster than long duration single cycles of vacuum and gas flush.
  • Temperature Controlled Cooling Cycle
  • High Temp Setting
  • Verification Timer
  • 9 Program Job Storage: With password lockout and four line display of process parameters
  • Extended Length Timers

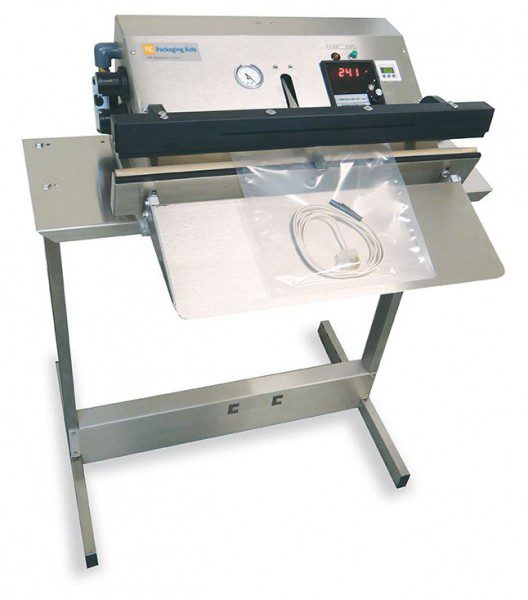

  • Machine Stand
  • 220 Volt CE Compliant Version
  • Extended Warranty
  • Emergency Stop Button
