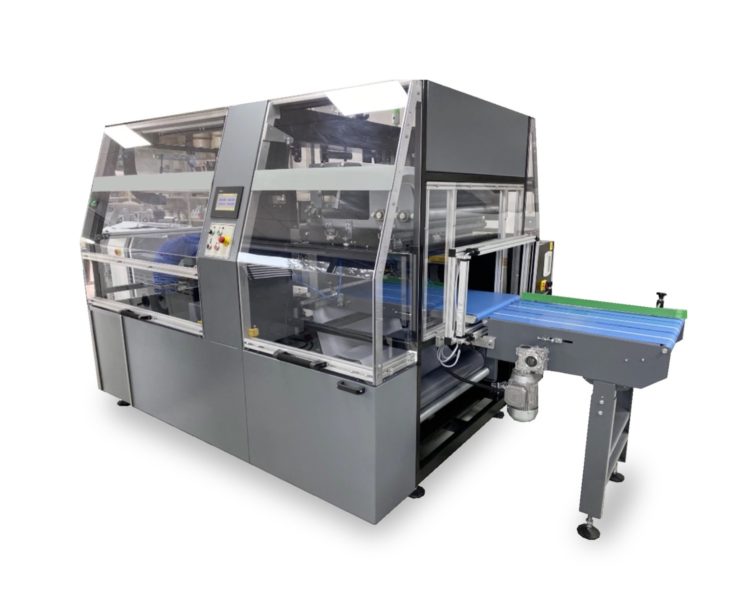

VersaQuad 4400 Four Side Sealer

Versatile High-Speed Poly Bagging System

The VersaQuad 4400 Four Side Sealer is a large automatic poly bagger for products that will be introduced horizontally on a conveyor. This system automatically measures the dimensions of the product being packaged and forms a right-sized poly bag (width, length, and height) around it. Furthermore, the VersaQuad 4400 can print and apply a shipping or product identification label directly on the bag. The VersaQuad 4400 variable poly bagger is ideal for high-speed packaging of products into poly mailers as well as those that need to be shipped to a fulfillment center.

System Operation

The VersaQuad 4400 is an advanced poly bagging system that makes a four-sided seal around a product. The packaging process is as follows:

Read More

Videos

Specifications

ModelVersaQuad 4400 Four Side Sealer
Packaging Rate (Fixed Width)Up to 20 packs/min
Packaging Rate (Random Width)Up to 10 packs/min
Max Product Width24"
Max Product LengthUnlimited"
Max Product Height8"
Cross Seal Bar Length36"
Conveyor Width24"
Max Conveyor Speed65 Ft/Min
Conveyor Working Height37"
Film ConfigurationSingle Wound
Max Film Width34"
Max Film Diameter12"
Electrical Requirement220V, 17A, 3 Phase. 60Hz
Air Requirement90 PSI @ 5 CFM
Dimensions11.5' L x 8.5' W x 8’ H
Warranty1 year limited warranty

Features

Operating Benefits

  • Four side seal and trim unit for a clean final package appearance

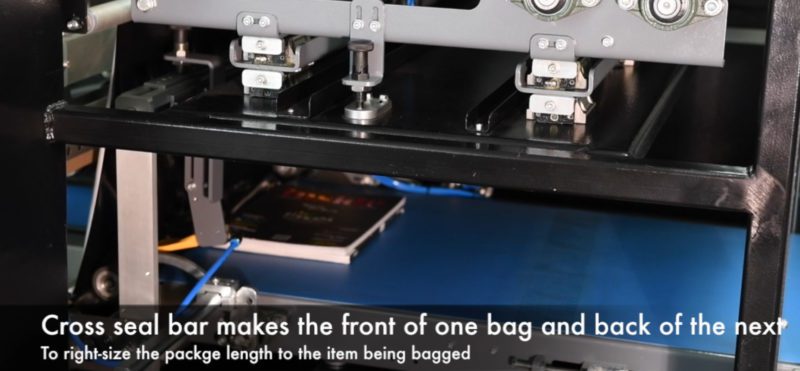

  • Servo-driven cross seal bar, balanced on linear bearings, for longevity
  • Powered film drive system allows light products to easily be packaged
  • High strength side-seal knives to cut and seal polyethylene with low maintenance

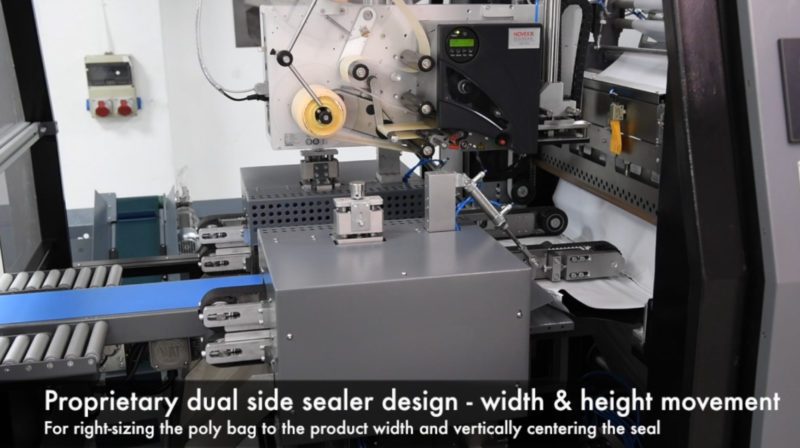

  • Servo-driven side sealer width and height control for fast and accurate positioning

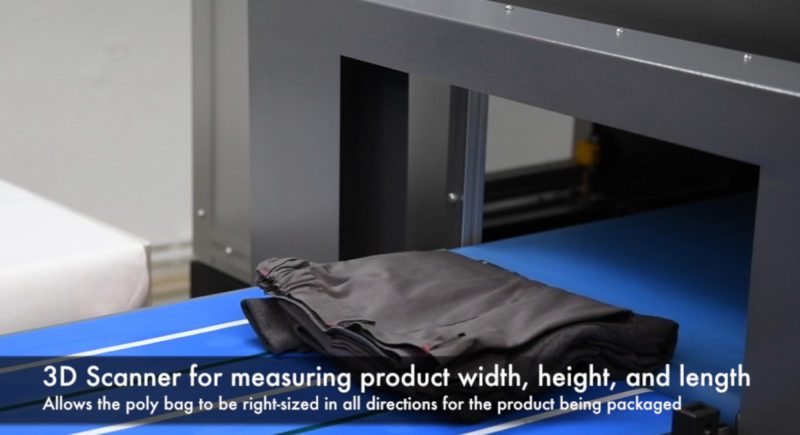

  • Automatic product dimensioning for right-sizing of the final package
  • Operating speed up to 20 cycles/min in fixed width and height mode
  • Operating speed up to 10 cycles/min in random width and height mode
  • Advanced film drive wheels: provides consistent and even film tracking
  • Independent scrap collection system outside of the machine for continuous operation
  • Integrated Zebra label printer applicator for printing a shipping label or other product information

Set-Up Benefits

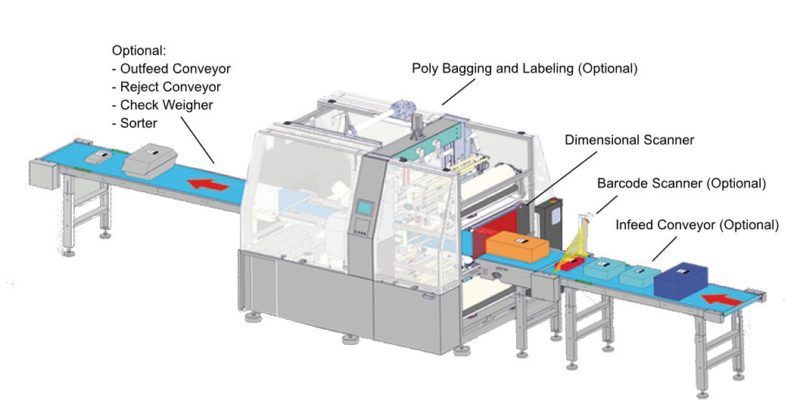

  • Easy to integrate directly into an existing production line
  • Touchscreen interface with job setting storage and diagnostics for ease of use
  • Product enters film at the cross seal bar, eliminating the need for a complex film inverting head
  • Uses 2 rolls of single wound sheeting for reduced changeover (over 4,000 ft/roll) and easier handling
  • Top and bottom mounted film rolls slide out for easy accessibility
  • Up to 3 mil polyethylene film thickness meets the needs of poly mailer bagging applications

Maintenance Benefits

  • Designed with strengthened mechanical components for today’s demanding manufacturing environment
  • Recordable & calibratable seal temperature adjustments
  • Packaging statistics for estimated and actual pack rates

Safety Benefits

  • CE compliant design for enhanced safety and ease of troubleshooting
  • Safety covers with interlocks to prevent physical machine access during operation

1 year limited warranty extendable up to 3 years with optional comprehensive warranty
