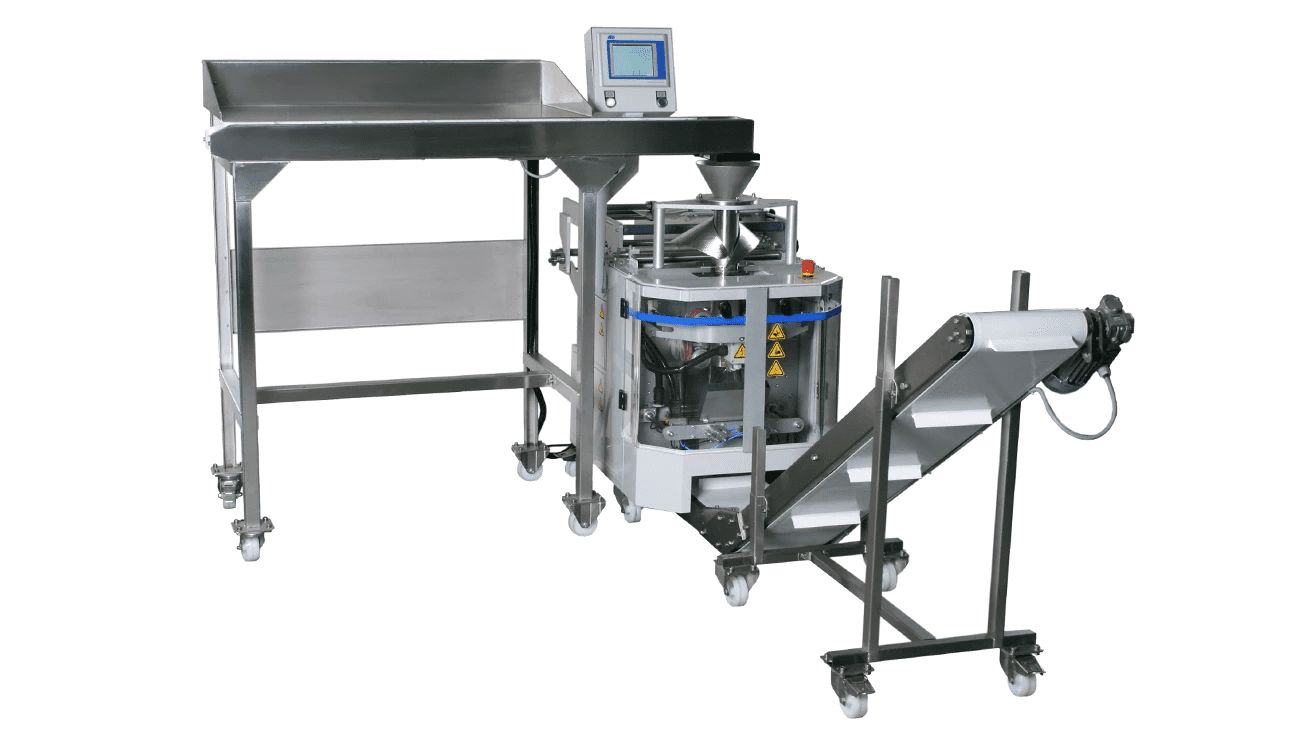

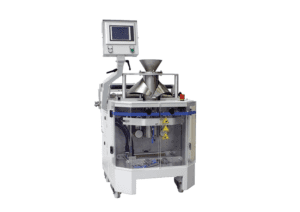

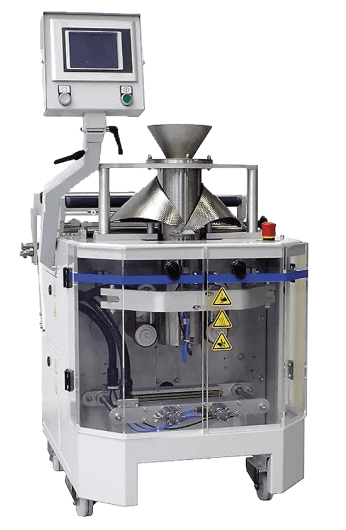

AVM 200 Paper Automatic Bagging System

Vertical Paper Bagging System, Designed to Efficiently Create Small Paper Bags at Rapid Speeds



AVM 200 – the most compact form fill seal bagger on the market. This machine is specifically designed for packing parts in small paper bags, offering unparalleled flexibility and efficiency. Say hello to a more sustainable way of packaging your products with our cutting-edge, paper driven technology! This bagger can produce up to 40 bags per minute (depending on application and material), increasing productivity and lowering costs. The AVM 200 fits conveniently at any workstation, making it an ideal addition to your production line. For those of you not ready to switch to paper, the machine can also work with plastic based films (eg. OPP and laminates). The AVM 200 uses rollstock film that is folded on the forming collar and vertically sealed in the back. This configuration results in a lower material cost than pre-made bags. Additionally, set the bag length to be made, using the HMI touchscreen.

Read More

Videos

RESOURCES

Specifications

ModelAVM 200 Paper Automatic Bagging System
SpeedUp to 40 bags/min
Bag Width2" - 8"
Bag Length2" - 16"
Seal TechnologyConstant Heat
Max Film Roll OD16"
Electrical Requirement120V, 50/60 Hz, 2,500 Watts
Compressed Air90psi @ 10CFM
Weight350 lbs
Dimensions28” W x 48” D x 38” H
Warranty1 year

Features

Operating Benefits

  • Rollstock material results in a low material cost
  • Set the desired bag length via the HMI to adjust the bag size to the items being packaged
  • The thermal transfer printer (optional) ties into labeling software to print information on the bag
  • HMI touchscreen with user-friendly interface and clear prompts
  • B&R PLC with job storage, batch counters, packaging statistics, and login-in levels

Set-Up Benefits

  • Stand with casters and a compact design provides portability
  • Quick roll change feature to facilitate easy and fast changeover
  • Proprietary forming collar designed to work with a range of paper types and thicknesses
  • Low loading height allows for manual feeding or automated infeed via interface port

Maintenance Benefits

  • Designed to minimize preventative maintenance costs by using off-the-shelf components
  • Quick service access to all pneumatic and electrical components
  • Self-diagnostics ensure quick problem solving
  • 4” wide printhead (optional) operates at up to 300 dpi and is easy to service

Safety Benefits

  • CE compliant design for improved safety and troubleshooting
  • Automatic jaw release if product is trapped between seal jaws
  • Readily accessible emergency stop button

Options

Thermal Transfer Printer
If you need to print large text, images, or barcodes directly on your bag, then a thermal transfer printer is the the right solution. Our Videojet thermal transfer printer is available with a 4” wide print head, has a print resolution of up to 300 dpi, and can print at a blazing rate of up to 24 inches per second. Additionally, software is available in order to make print set-up a breeze

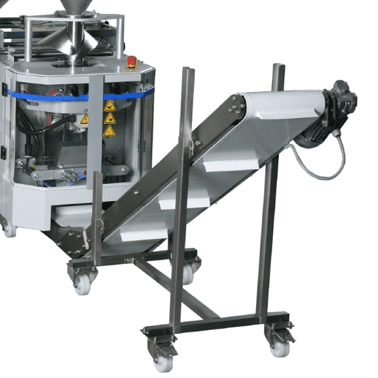

Incline Outfeed Conveyor
The incline outfeed conveyor transports bags from the bagger up to table height. The conveyor consists of a horizontal section where the bag is dropped, and an inclined section which has a height of approximately 35”. The height and angle of the inclined section are adjustable. The conveyor is made of stainless steel and equipped with casters.

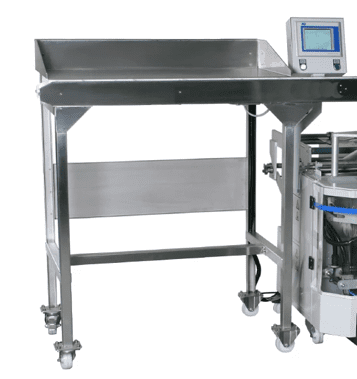

Kit Conveyor
The Kit Conveyor is designed for guaranteed packaging rates, or pace rate for operators. Package faster, easier and safer. This feeder allows you to package hardware kits, appliance kits, craft kits and various parts directly into the bag.
Spare Parts Kit
This kit includes basic consumable and replacement parts fo the machine. These parts include PTFE seal bar cover and perforation knife.

Additional Options

Additional Forming Collar for Paper (base machine includes one former)

On-Site Start-Up and training

Recommended 2 day training and start-up of the unit is available and includes 8 hours per day of start-up and training.
