Proven Performance in a Durable Tabletop Shrink Tunnel

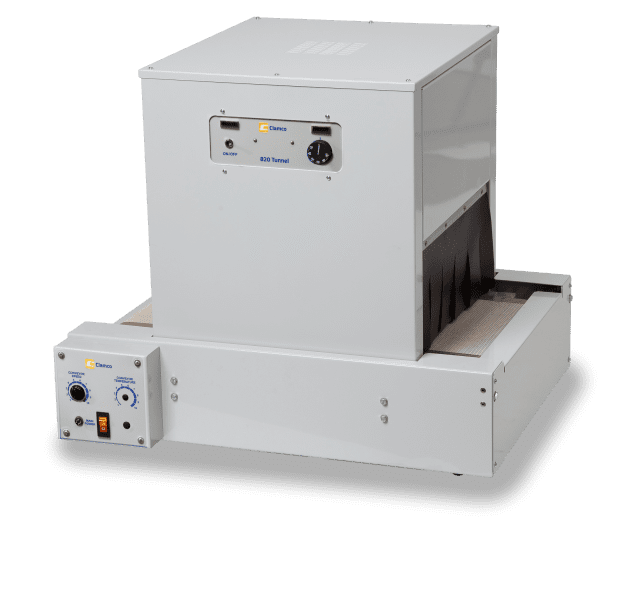

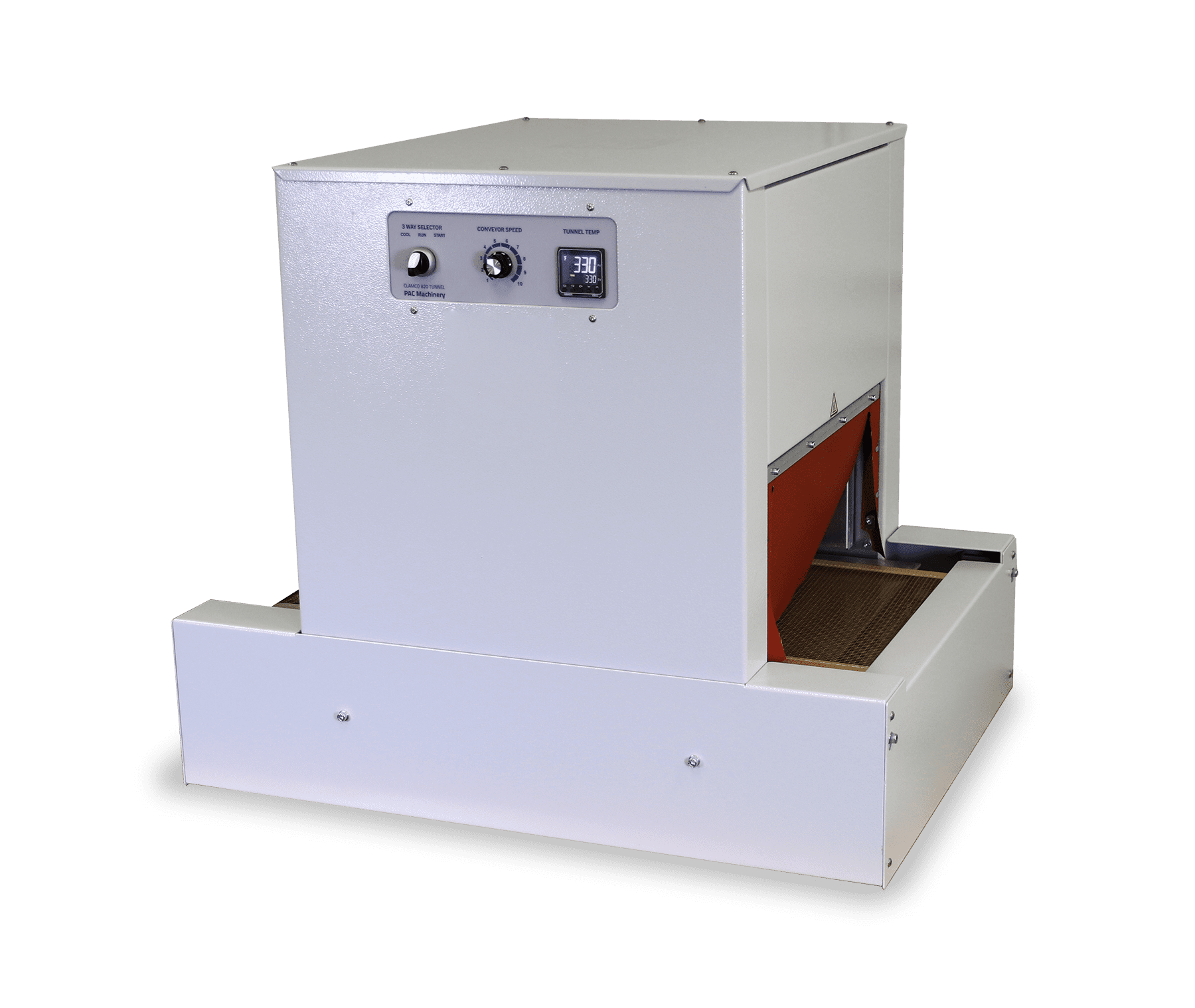

The Clamco Model 820 Shrink Tunnel is the choice for tough, dependable long-life performance in continuous production environments.

When professional quality packaging is required for smaller production demands, choose the tabletop shrink tunnel that provides complete heating all around the package along with the same cool down safety controls as our larger tunnels. Constructed of heavy-gauge structural steel, the Clamco 820 features a variable-speed PTFE coated mesh belt conveyor, airflow heat transfer, and an automatic cool down timer. A unique advantage in a tabletop tunnel is a riser bar under the mesh belt which lifts the product momentarily for increased airflow from the bottom tunnel to enhance shrink packaging results.

Vintage Stock repackages with Clamco 120C & 240C Combo Shrink Machines—a PAC customer story

CLAMCO 820 Heat Tunnel shrinking a craft beer branded and printed sleeve on an aluminum beer can.

4T & 6T Heat Tunnel Makes Shrink Better

Specifications

Model	Clamco Model 820MB	Clamco Model 820HD
Tunnel Length	20"	20"
Tunnel Width	16"	16"
Tunnel Opening Height	8"	8"
Overall Dimensions	32"L x 27"W x 28"H	32"L x 27"W x 28"H
Maximum Package Size	16"L x 8"H	16"L x 8"H
Electrical	110V, 50/60Hz	220V for cold rooms or severe operating conditions
Power	2,100 Watts	4,000 Watts
Speed	Up to 60 feet/min	Up to 60 feet/min
Limited Warranty	2 Years	2 Years
Shipping Weight	220 lbs	220 lbs

Features

Operating Benefits

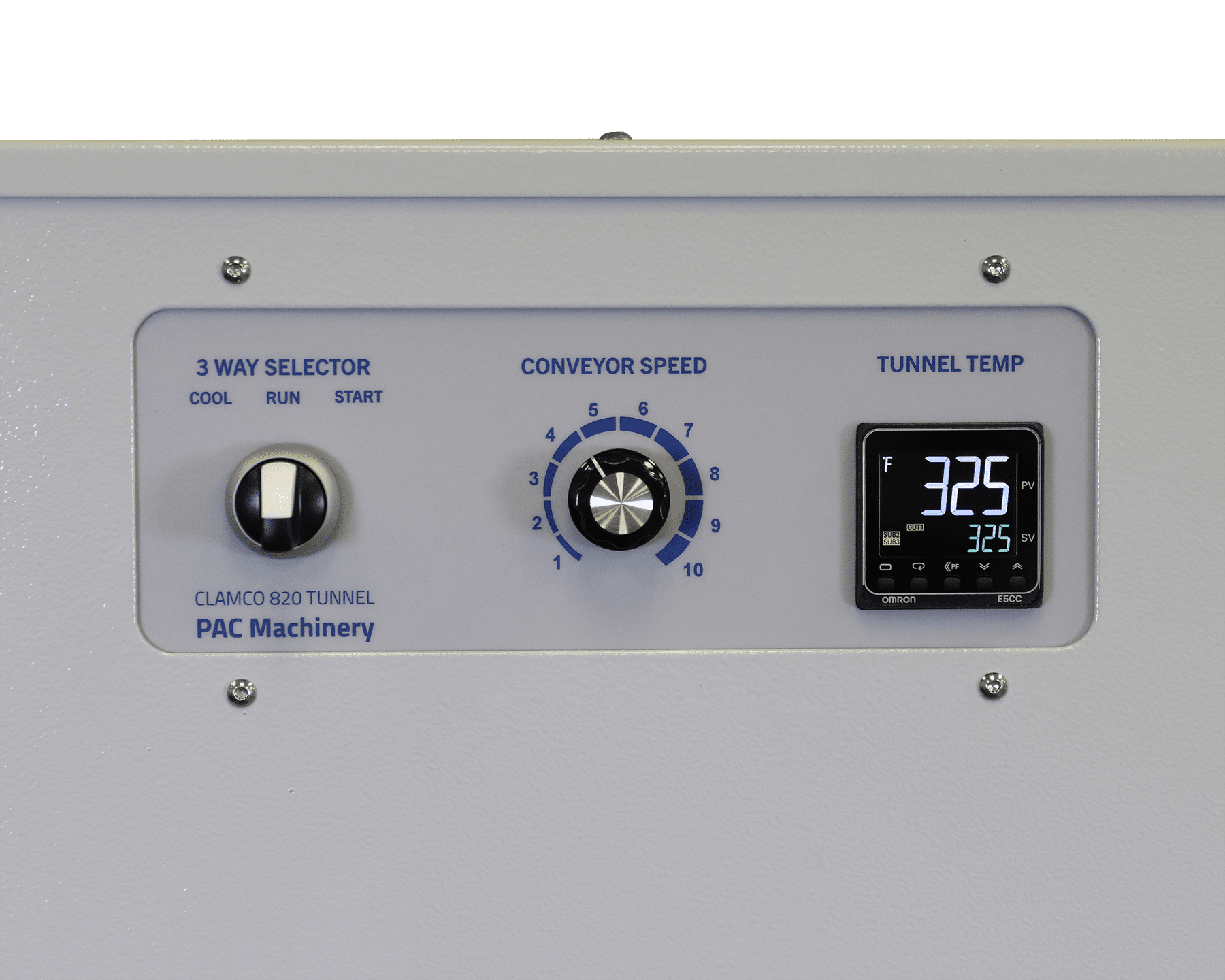

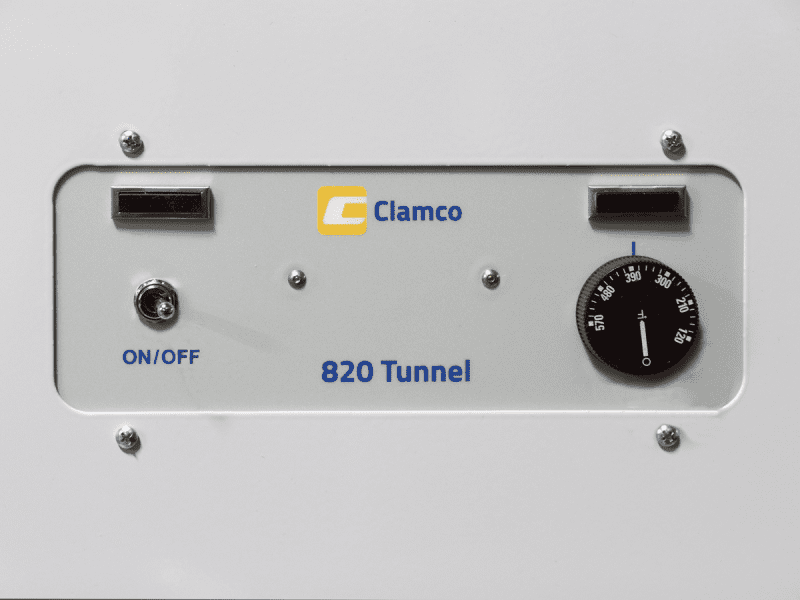

Easy to use tunnel temperature control with a temperature sensing thermocouple
Convenient 120V, electrical operation, just right for small production environments
Generous 2,100 watts of heating power
Heavy duty blower provides 360° air circulation for optimized performance
Fully insulated to maintain selected temperature inside the tunnel for consistent shrink wrapping
Tunnel curtain design minimizes heat loss and maintains tunnel temperature consistency

Shrink Benefits

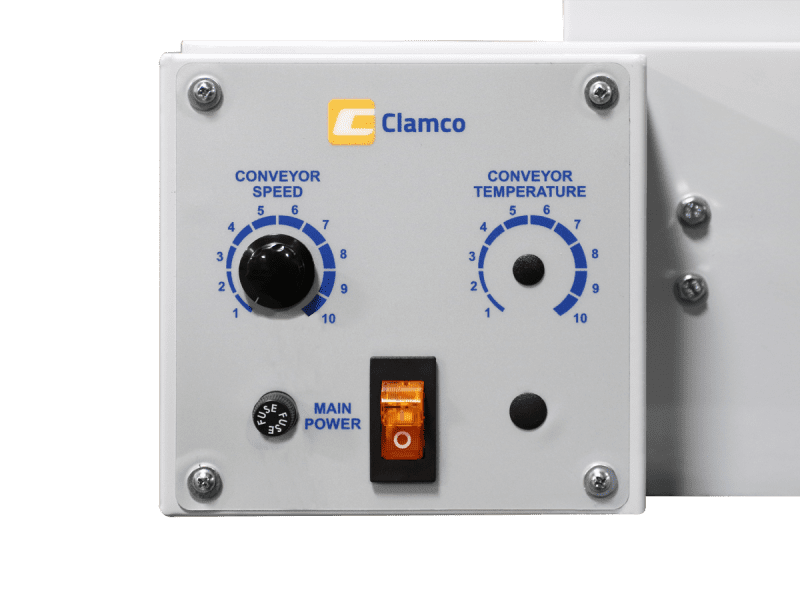

Variable speed tunnel conveyor control is used to maximize shrink appearance

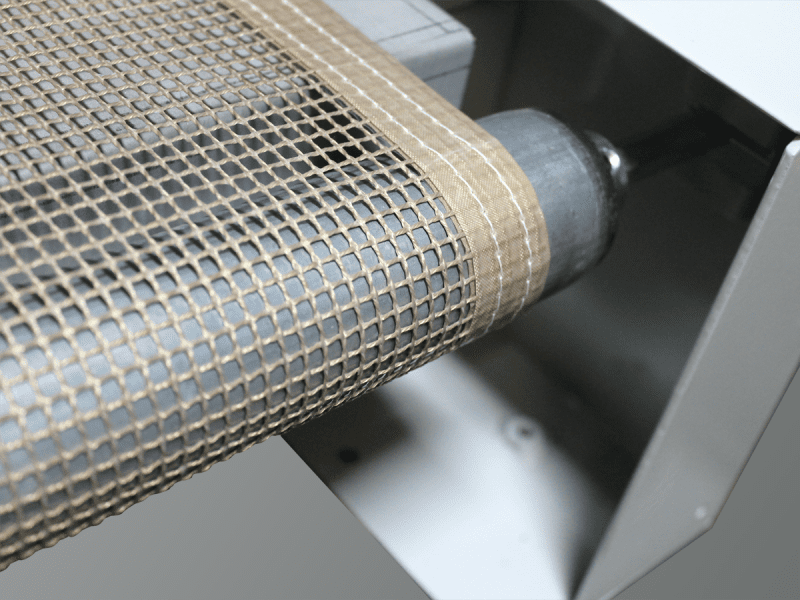

PTFE coated mesh belt allows ultimate airflow from the bottom of the chamber to offer full shrink on the bottom of the package
Bottom airflow is channeled to provide full air circulation for exceptional shrink in a tabletop unit
Riser bar under mesh belt lifts product momentarily to allow more airflow from bottom of tunnel

Safety Benefits

Automatic cool down timer and shut off for maximum component reliability

Options

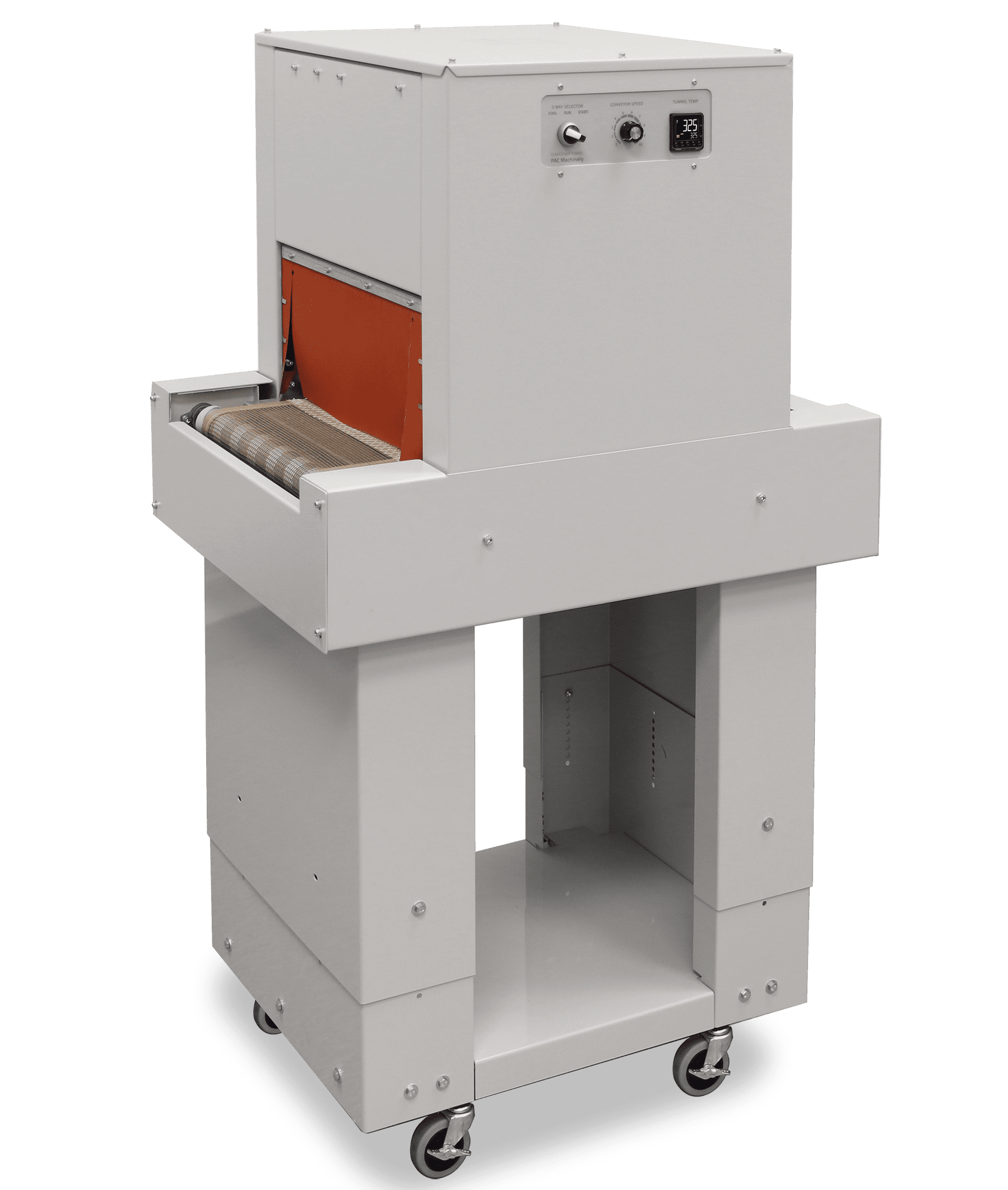

Console Leg Kit w/ Casters and Levelers
