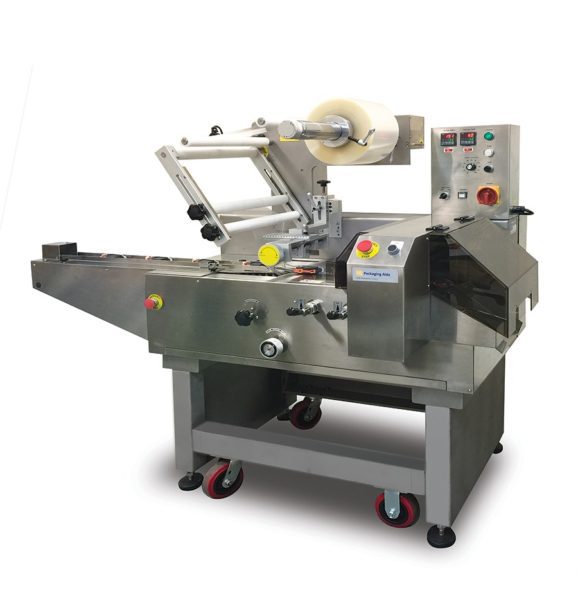

PAC FW 350T Flow Wrapper

Horizontal Flow Wrapper

The FW 350T is a horizontal flow wrapper that is ideal for suppliers of products that must be packaged individually. This may include candies, bakery items, electronics, hardware, and medical products.

This entry-level machine is a high performance packaging system in a small footprint (7 square feet), and is small enough to fit on a tabletop. The FW 350T flow wrapper is the perfect choice for new applications, or for increasing your capacity.

The product is fed into the flow wrapper either manually or automatically. This versatile machine can achieve speeds up to 60 packages/minute in single jaw configuration or 100 packages/minute with twin jaw configuration. Settings can be easily changed to accommodate various package sizes—up to 9 ¾” long, 2 ¼ ” high, and 4 ½” wide.

The integrated product conveyor indexes items forward and encloses them into a formed tube of film. This web of material is then sealed using a “fin seal”. The enfolded product is then further indexed to be end sealed and cut off in a continuous process. The result is a neatly wrapped finished product.

The optional machine stand positions the machine at an ergonomic loading height for operators. Installed swivel casters allow for easily relocating the machine around your facility.

The FW 350T flow wrapper features fast set-up, changeover flexibility, and ease of use.

The FW 350T Flow Wrapper includes a 2-year limited warranty.

Financing options from $400/month

Videos

Specifications

Technical Specs350T Flow Wrapper
SpeedUp to 60 packages/min
Bag Length3″ to 9″
Max Product Height2″
Max Product Width4.5″
Infeed Conveyor Length36″
Max Film Size12.5″ wide x 12.5″ OD
Machine Dimensions (L x D x H)53″ x 31.5″ x 35.5″
Machine Footprint (L x D)40″ x 25″
Electrical220V, 1-ph, 15A

Features

  • For use with unprinted or random repeat printed film
  • Stainless steel frame and product contact areas
  • User friendly control panel
  • Dual Fin Seal Wheels
  • End seal jaw height adjustment for various product heights
  • Easy bag length adjustment
  • Quick centering for film roll holder

Options

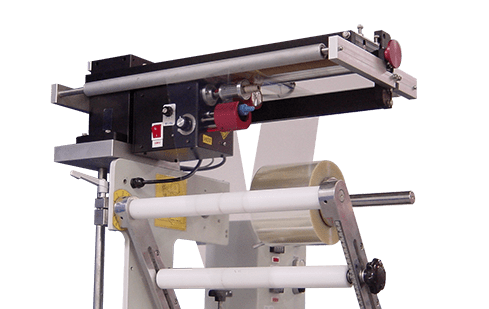

Hot Stamp Printer
For date/ lot coding.
Straight Cut end Seal Knife with Tear Notch
Machine Stand with Casters

Additional Options

Gas Flush
Modified atmosphere packaging, extending product shelf-life.

Delicate Product Conveyor

Water Cool Ready Transfer Plates
For ice cream bars.

Water Chiller
For water cool transfer plates.
