PAC PI Impulse Sealer

Products > Heat Sealers > PAC PI Impulse Sealer

Pneumatic Impulse Sealer

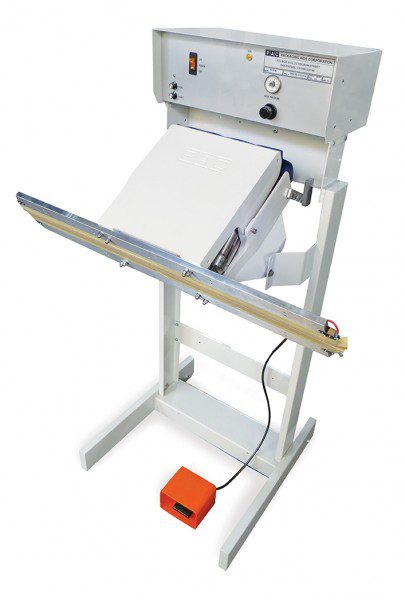

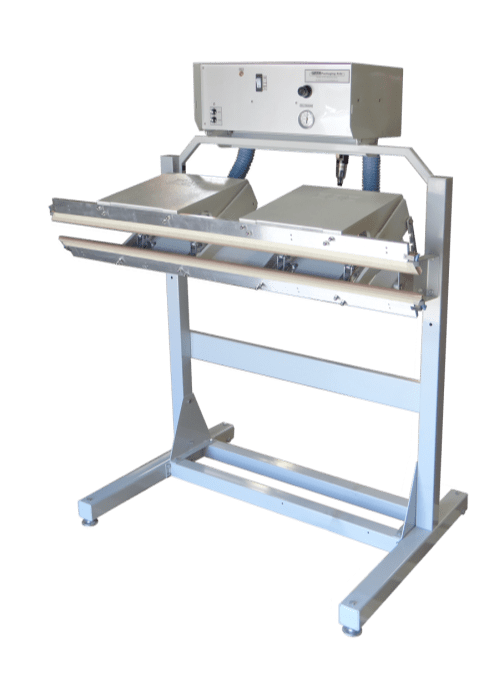

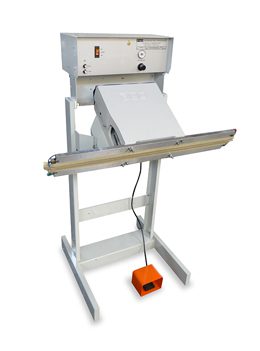

The PAC PI is a heavy-duty pneumatic impulse sealer that is built to provide years of trouble-free service. With two heated seal jaws that create a 5/16″ wide seal, the PI impulse sealer can seal thick poly bags and films. The PI’s seal head pivots from horizontal to vertical, to meet a wide variety of packaging line configurations for bags up to 36” wide. The PAC PI Twin version has two seal head castings to provide the necessary pressure for longer seal lengths (36″ – 54″)

The PI impulse sealer is available with a number of options to better tailor the sealer to the requirements of the packaging application. The optional bag stretcher is comprised of two fingers that slip into the bag before sealing and automatically extend the edges of the bag, pulling it tight to minimize wrinkles in the seal. The optional stainless steel work shelf and bag support simplifies bag positioning by supporting the product during sealing.

The PAC PI Impulse Sealer is made in the USA and includes a 3 year limited warranty.

Videos

Packaging Aids PI Sealer Bag Sealer: Tray Packaging Demo

PAC PI Impulse Sealer - Packaging Auto Parts

Specifications

Model	PI Impulse Sealer
Seal Lengths	12", 18", 24", 30", 36", 36" - 54" with twin head
Seal Width	5/16″ in top and bottom seal jaws
Sealing system	Thermal impulse
Air requirement (min)	100 psi
Electrical requirement	120V
Dimensions	26" - 39" W x 32" D x 58" H
Warranty	3 year limited
Country of Manufacture	USA

Features

Operating Features

Adjustable seal head angle to accommodate product orientation
Convenient footswitch cycle activation
Rugged frame for stable, long-lasting performance
Straightforward user controls help assure excellent results
3 year limited warranty

Sealing Features

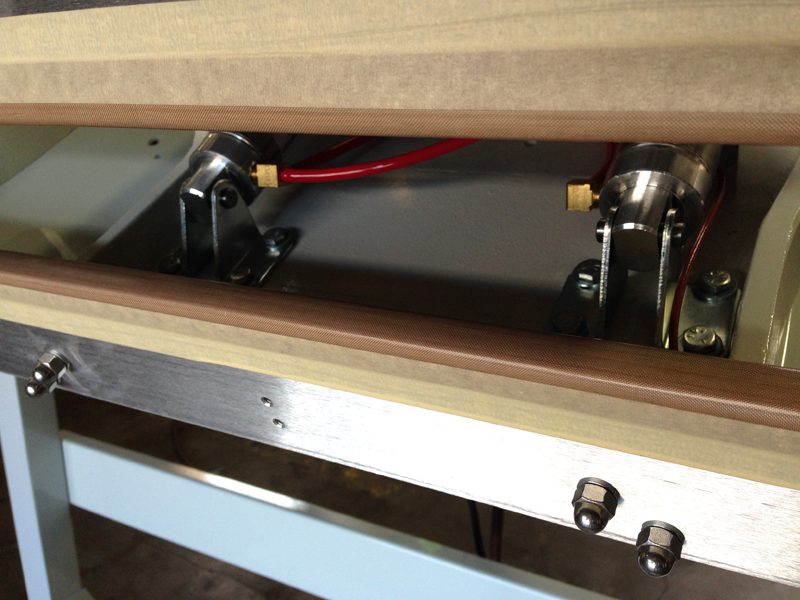

Bi-active (top and bottom heat) pneumatically activated jaws for seal reliability
Thermal impulse time control system does not require any warm-up time
SureTemp temperature controller ensures seal quality by maintaining seal temperature to a precise setting (optional)
Bag stretcher minimize wrinkles in the seal (optional)

Safety Features

Spring closing safety system with release if obstruction is detected
Jaw close timeout with release when delay is detected
High heat only present when seal jaws are closed and under pressure
Heavy duty seal transformer with thermal overload protection

Options

Sealing Options

Bag Stretcher: Fingers fit inside edges of the bag to minimizes wrinkles in the seal area
Work Shelf & Bag Support: Supports the product during the packaging cycle
SureTemp Temperature Controller: Ensures consistent seal quality (up to 350°F)
High Pressure Seal: Increases seal pressure for heavy materials
Extra Power: Additional seal transformers for production at high rates
Seal Jaw Selector Switch: Allows bottom seal jaw to be turned off
Bag Stop: Allows bag to always be sealed in the same location
Trim Seal: Trims off the area of the bag above the seal

Safety Options

Emergency Stop Button
Two Stage Cycle Engagement: Jaws close by footswitch, cycle initiated by dual palm buttons
Locking Control Box Cover: Cover on control cabinet to prevent unauthorized setting changes
Dual Palm Buttons: Prevents operator contact with seal jaws during closure
Motorized Crank Adjustable Frame: Adjust the operating height of the machine for improved ergonomics (12” travel)
Locking Control Box Cover
Palm Switch Cycle Activation

Other Options

SureSeal Digital Interface: Includes 9 program job storage
Stainless Steel Frame: For wet or corrosive environments
Work shelf & Bag Support: Supports the product during the packaging cycle
Ported Exhaust: For plumbing exhaust air out of a cleanroom
Hot Embosser: Up to 8 brass characters above the seal
Hot Stamp Printer: Hot embosser above the seal
Embosser/Printer
220 Volt Wiring
CE Compliant Design

DOWNLOADS

PAC PI Impulse Sealer datasheet

Packaging Equipment Overview Brochure

Industries

Food, Industrial, Medical, Fruits, Nuts, Vegetables, Meat, Cheese, Poultry, Fish, Pet, Automotive Parts, Fabric and Textile, Pharmaceutical, Medical Devices, Healthcare Item, Chemical, Hazardous Location, Cannabis, Toy and Game, Printing, Paper, Forms, Electronics, Corrosive Materials
