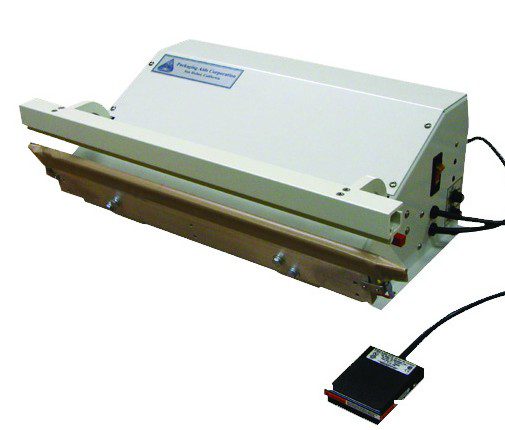

PAC PT Impulse Sealer

Tabletop Impulse Sealer

A proven industry standard, the pneumatically-operated PAC PT is a tabletop impulse sealer that features a highly functional design and attention to detail. As a result, the sealer will produce secure, consistent seals you can trust. The PT impulse sealer can seal a wide range of material thicknesses with its powerful sealing system. The PT impulse sealer can be configured with a variety of options to best tailor the machine to the packaging application, including bi-active seal for thick materials and temperature controller for accurate and consistent seals. The PAC PT sealer features sturdy construction for years of dependable use—yet it is portable enough to move about the production environment as needed. The PAC PT Impulse Sealer is made in the USA and includes a 2-year limited warranty.

Videos

Specifications

ModelPT Impulse Sealer
Seal Lengths20″, 25″, 30″
Seal Width (standard)5/16″
ActivationFootswitch
Air requirement (min)100 psi
Electrical requirement120V
Dimensions 23″ – 33″ W x 15″ D x 8″ H
Shipping Dimensions33″ W x 19″ D x 14″ H
Shipping Weight (approx)60 lbs.
Warranty2 year limited
Country of ManufactureUSA

Features

Sealing Benefits

  • Single side impulse heater bar with opposing pressure bar (bottom jaw heated) for seal reliability
  • Pneumatically operated sealing jaw for high pressure hermetic seal through most materials
  • Independent digital seal and cool timers ensure accurate settings of machine parameters
  • Optional SureTemp™ temperature

Safety Benefits

  • Spring close jaw safety system with release if obstruction is detected
  • Jaw close timeout with release when delay is detected
  • Heavy duty seal transformer(s) with thermal overload protection

Options

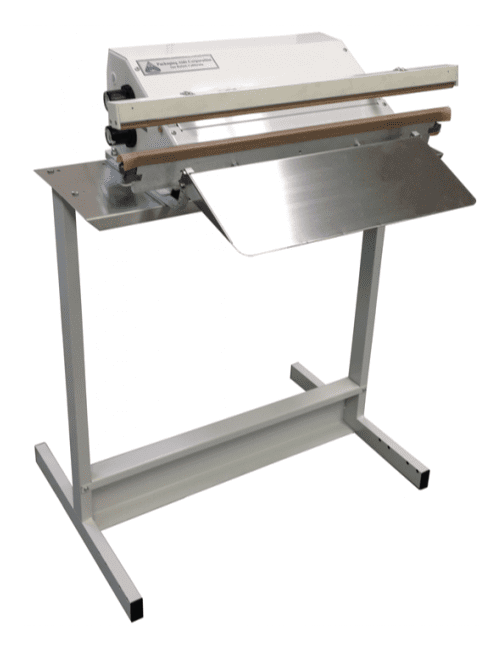

Floor Stand
Facilitates use on the floor instead of on a table.
220V Operation
Work Shelf
20″ wide x 8″ deep shelf supports the product during the packaging cycle.

Additional Options

Suretemp™ Temperature Controller
Ensures consistent seal quality (up to 350°F) by accurately controlling temperature via a thermocouple.

Bi-Active Seal
Top and bottom heated seal bars for thick materials or reducing seal time.

SureSeal Digital Interface
Includes 9 program job storage.

Stainless Steel Construction
Ideal for wet or corrosive environments.

Locking Swivel Casters

CE Compliant Design

Spare Parts Kit
