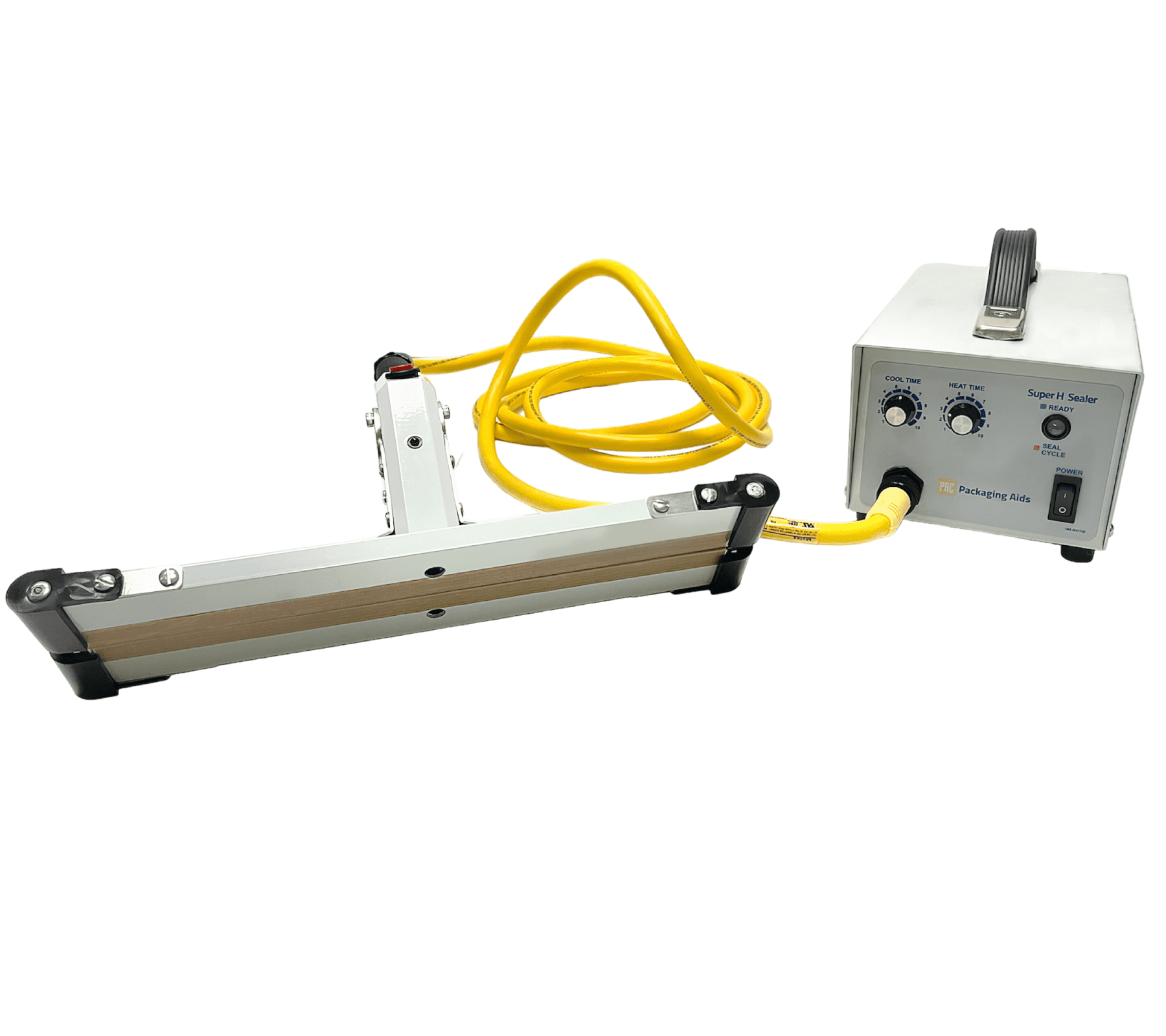

PAC Super H

Portable Heat Sealer

The PAC Super H is a heavy-duty portable heat sealer for applications that require a sealer that can be used at the location of the packaging. This impulse heat sealer has bi-active sealing jaws, top and bottom heated jaws, for sealing thick material and to reduce overall cycle time by heating from both sides of the material. The Super H portable heat sealer features a high pressure spring loaded handle for consistent sealing pressure while providing the ability to seal thicker materials than our other hand sealers. Additionally, the ends of this hand held impulse sealer are covered, providing better protection to the seal elements. The PAC Super H portable impulse hand sealer has independently adjustable seal and cool timers to seal a wide variety of materials including polyethylene, polypropylene, foils and laminates.

The Super H portable heat sealing jaws can be interchanged with a single power supply for more versatility. The super H power supply and sealing jaw handsets are sold as a complete unit or individually as needed.

The PAC Super H Portable Heat Sealer is made in the USA and includes a 2 year limited warranty.

Specifications

Technical SpecsPac Super H
Seal Length12″, 18″, or 24″
Seal Width3/16″
Electrical Requirement115V

Features

Sealing Features

  • Seal Lengths: 12″, 18″, or 24″
  • Seal Width: 3/16″
  • Bi-active Sealing (Both jaws heated) to accommodate thick or high temperature materials
  • Independent adjustable seal and cool timers 0-3.75 seconds (.25 sec increments)
  • High Pressure spring jaw closure for consistent pressure along sealing length
  • Handset mounted cycle button allows for positioning prior to initiating seal

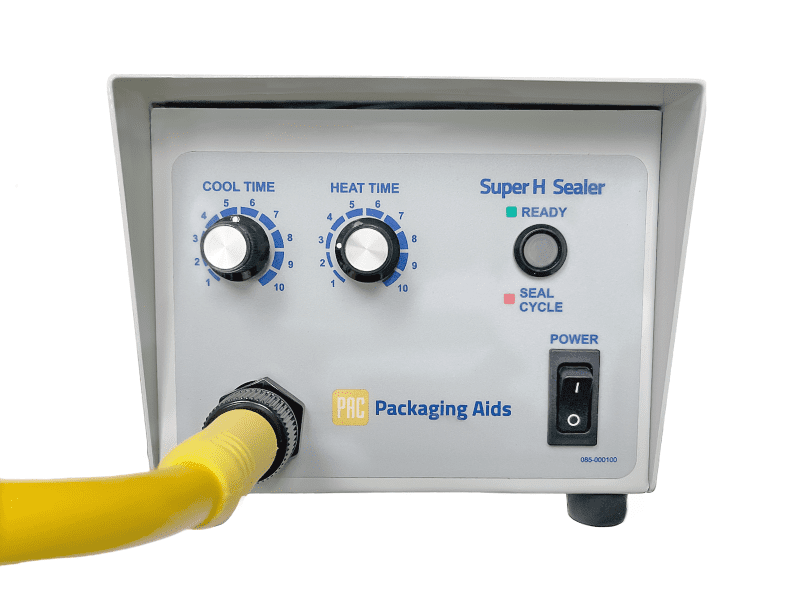

  • LED light mounted on both the handset and power supply to indicate sealer is ready (green) or sealing cycle (red)

Portable Features

  • Lightweight handset for ease of use and to prevent operator fatigue
  • 15′ power cord with bayonet connection from handset to power supply
  • Handsets are interchangeable with single power supply

Additional Features

  • Electrical Requirement: 115V
  • No compressed air required
  • 2 year limited warranty
  • Made in USA

Options

Spare Parts Kit

Additional Options

Service Tool Kit
