Rollbag® Kit Conveyor

Infeed Counting Device

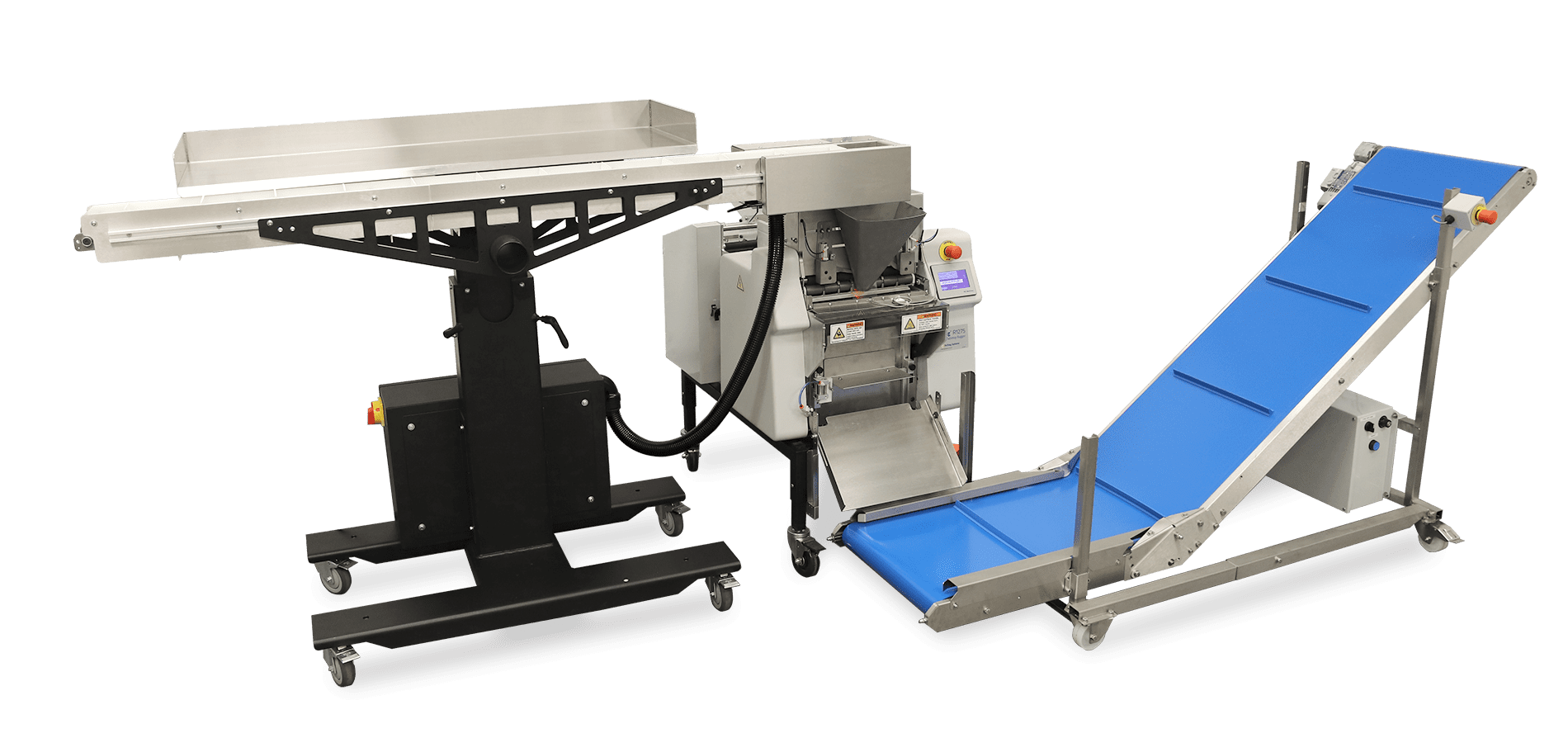

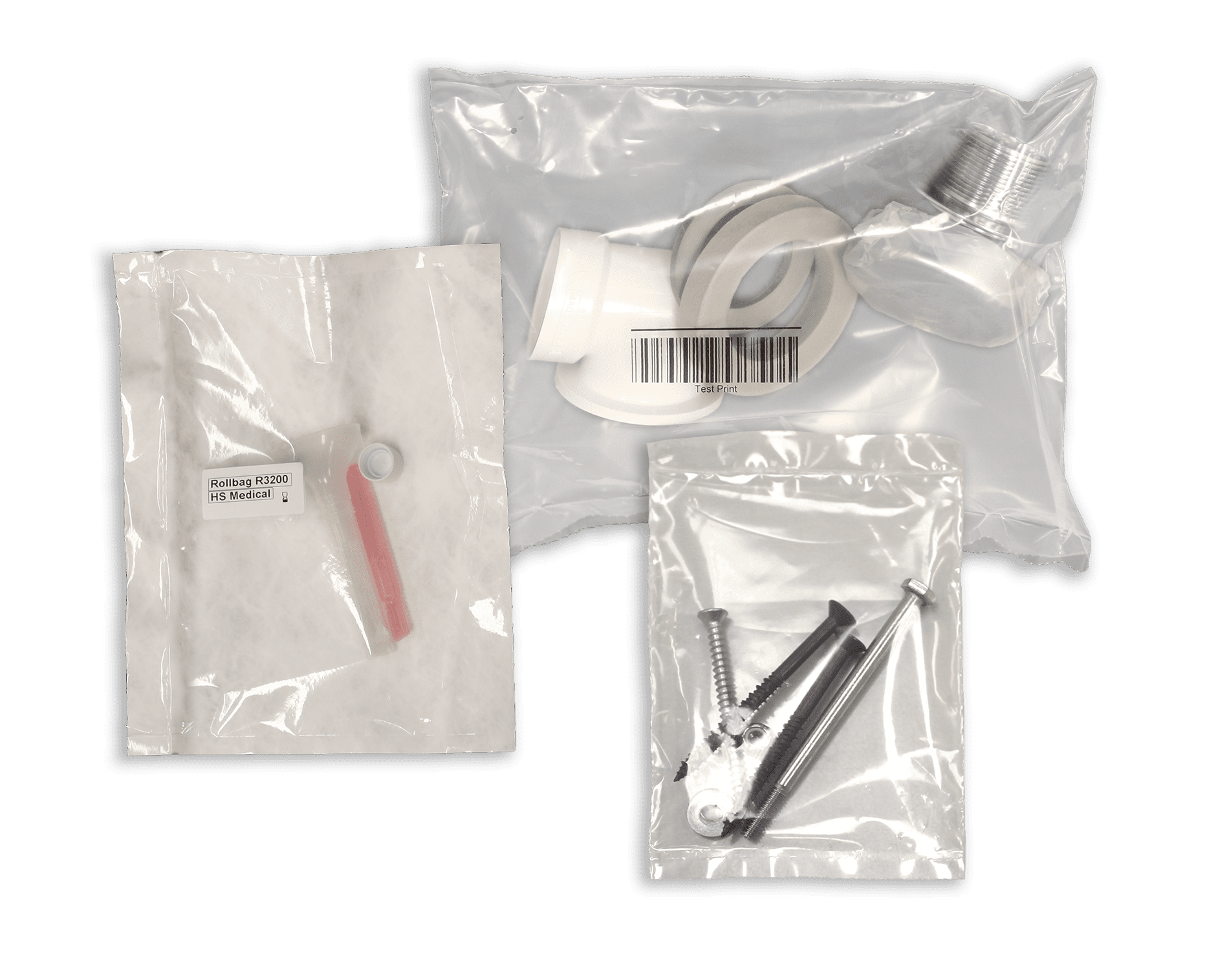

The Rollbag Kit Conveyor is designed for guaranteed packaging rates or pace rate for operators. Use this conveyor to increase production rates, allowing for packaging to be faster, easier, and safer. This equipment allows you to package hardware kits, appliance kits, craft kits, and various parts directly into Rollbag brand pre-opened bag-on-a-roll.

The Rollbag Kit Conveyor has three operating modes: manual, paced, and counting. Manual mode works with a simple to use footswitch. Paced mode is for continuous feeding of the product. When operating in counting mode, the bagger cycles when a photo eye detects the product count. This kit conveyor is designed to be part of a heavy-duty packaging system and is electronically interfaced to work with Rollbag brand automatic baggers.

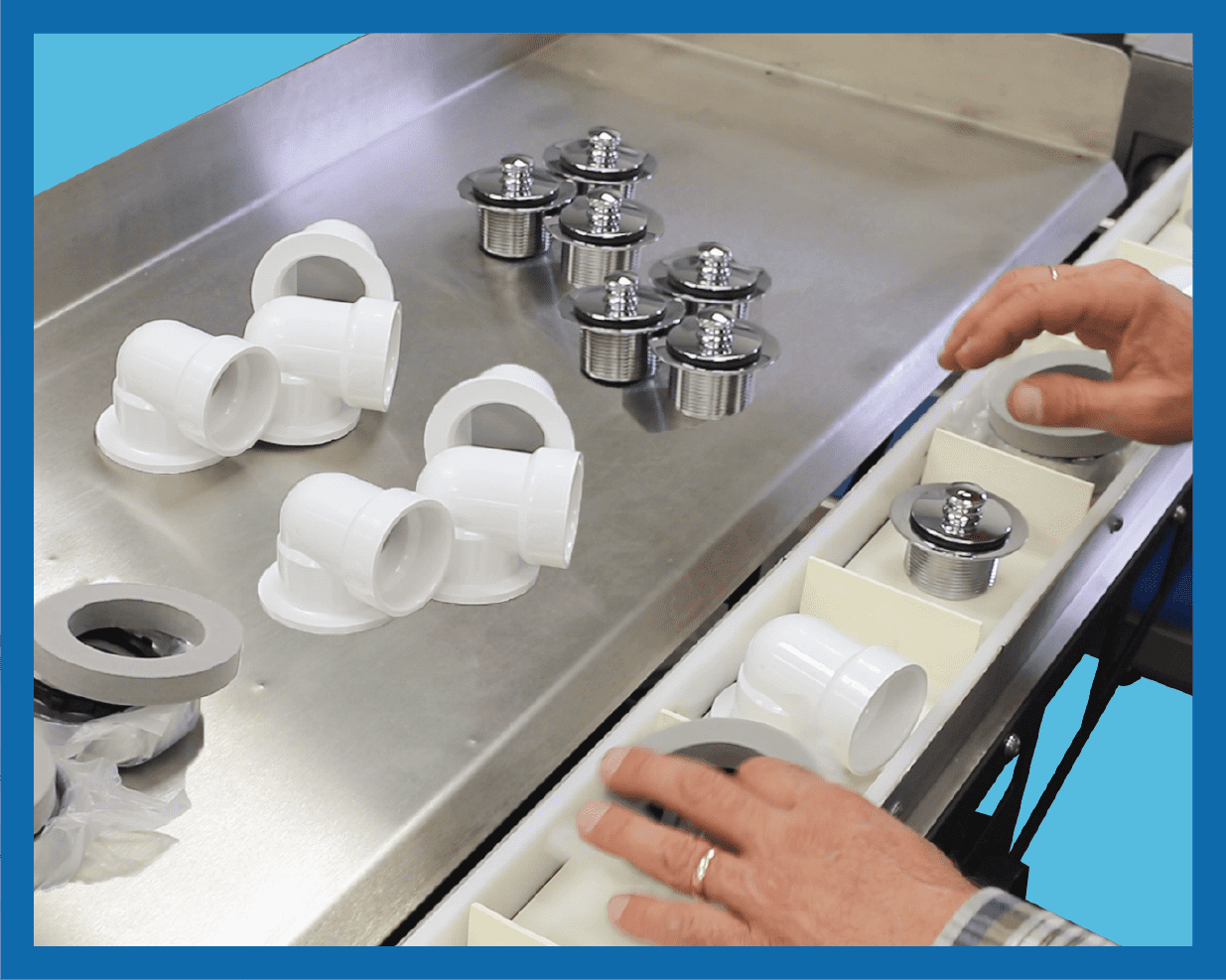

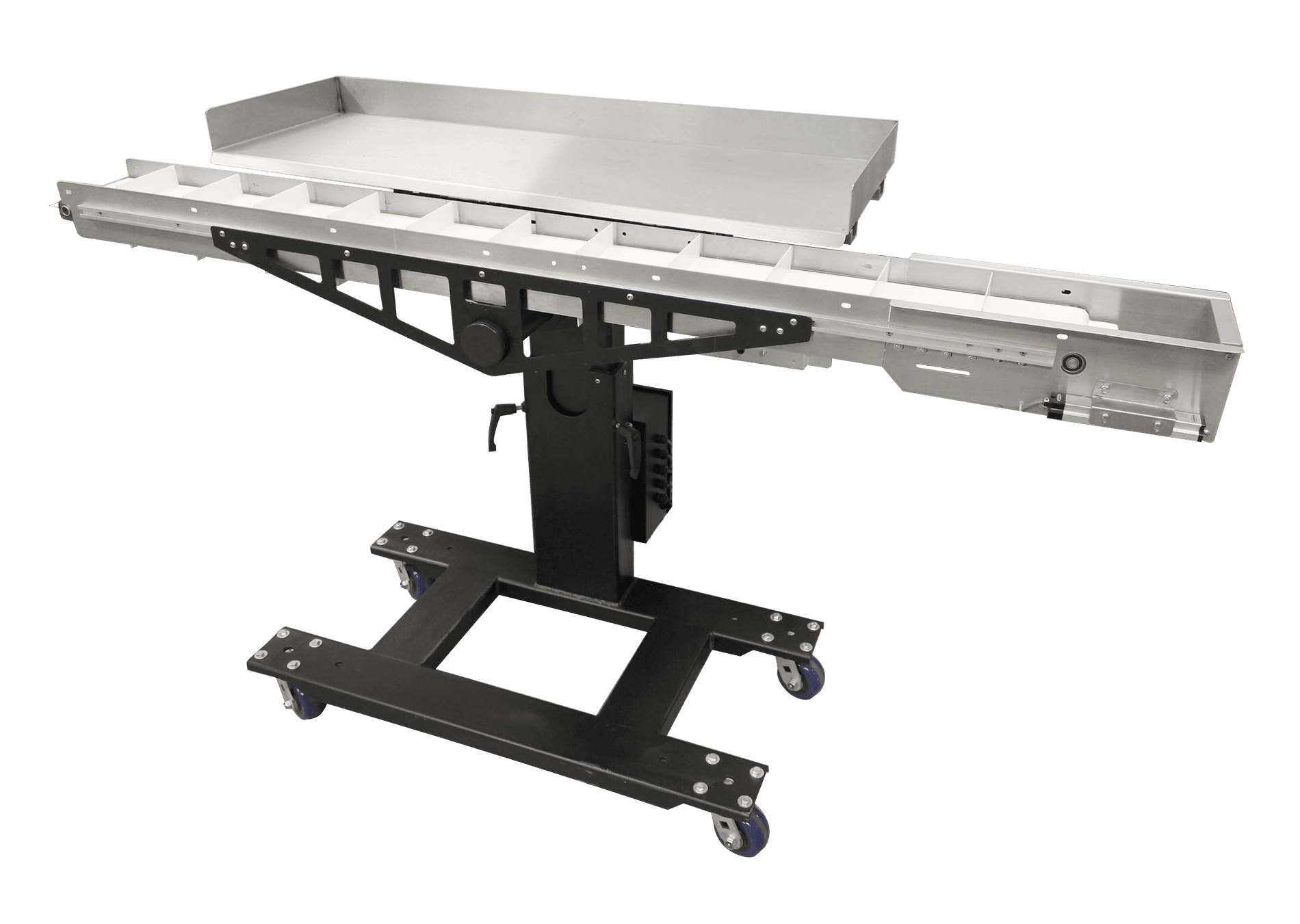

The Rollbag Kit Conveyor is made with a stainless steel work table that can be equipped with optional dividers. The heavy-duty stand features casters for mobility and is height adjustable.

This unit comes with a six-foot cleated infeed conveyor. Custom conveyor sizes are available, contact us for more details.

The Rollbag Kit Conveyor features a 1-year limited warranty which can be extended up to 5-years when exclusively using Rollbag brand materials.

Specifications

ModelRollbag Kit Conveyor
ConstructionAdjustable height with stainless steel work table
Length6'
Spacing4” x 6”
Cleat Height1"
Dimensions (W x D x H)77” x 30” x 36”
Electrical Requirement120V @ 15A
Warranty1 year limited warranty,
extendable up to 5 years

Features

  • 3 operating modes (manual, paced, counting)
    • Manual: Cycle the conveyor using a footswitch
    • Paced: Set up continuous feeding of the product
    • Counting: Bagger cycles when the photo eye detects the pre-set product count
  • Electronically interfaced to work with Clamco Rollbag automatic baggers
  • 6 foot in length
  • Includes a standard funnel designed to work with an 8” x 10” size bag
  • 4” x 6” spacing with 1” tall cleats
  • Stainless steel work table (dividers optional)
  • Heavy-duty stand with casters for mobility around the plant
  • Height adjustable
  • Custom conveyor sizes available

Options

Custom Fixed Funnels
For various bag sizes.

Additional Options

Dividers
For the stainless steel work table.
