Rollbag® Magnum Horizontal

Products > Rollbag® Auto Baggers > Automatic Baggers > Rollbag® Magnum Horizontal

Innovative Automatic Bagger

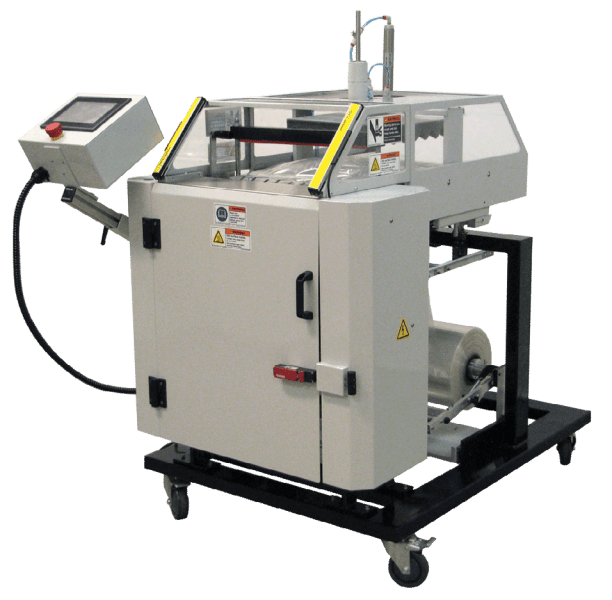

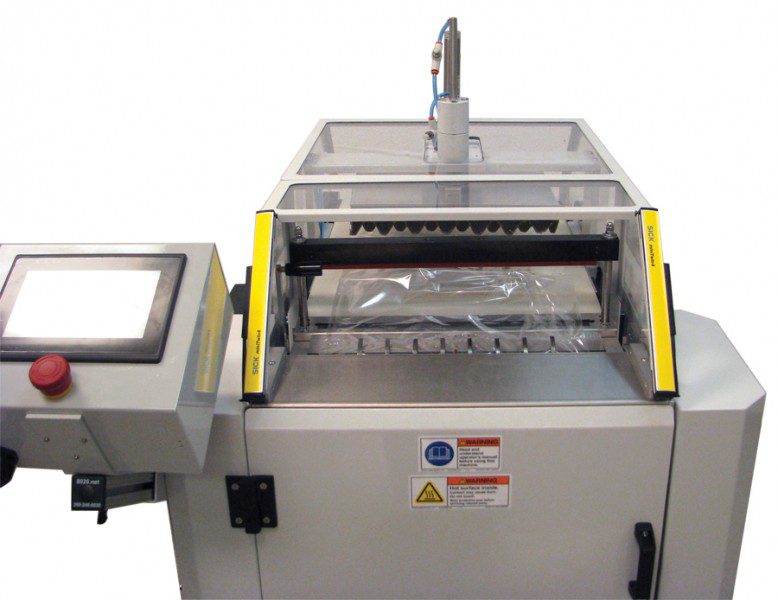

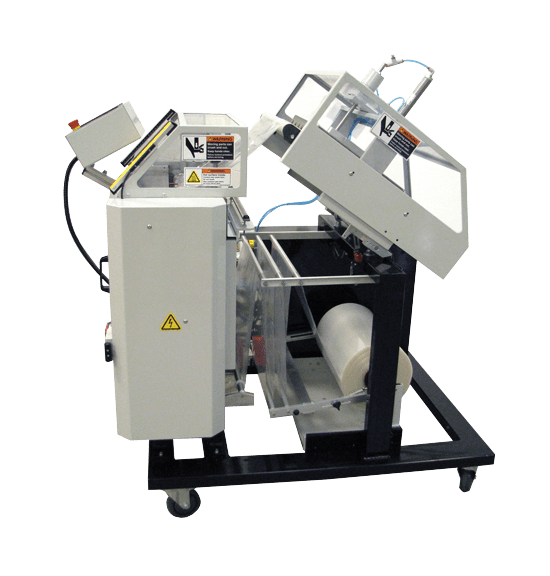

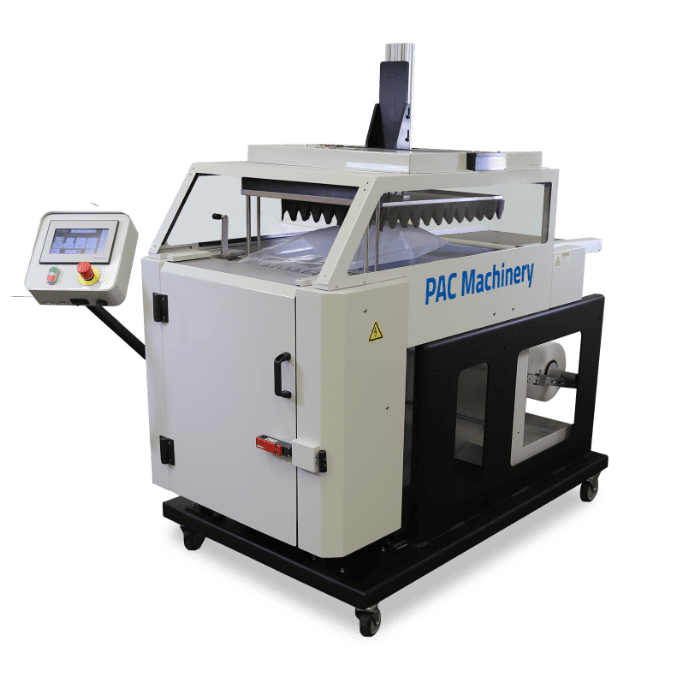

The Rollbag Magnum Horizontal Automatic Bagger is designed to meet the unique requirements of large bag packaging with a horizontal loading configuration. The Magnum Horizontal is ideal for long or bulky products or applications requiring special handling or orientation.

Custom Bag Sizes at the Push of a Button

The Rollbag Magnum Horizontal Automatic Bagger works with poly tubing as well as pre-opened bags on a roll. Using poly tubing can provide significant material cost savings, as well as reduced material inventory costs. Poly tubing also allows bag length to be changed at the push of a button, right-sizing the bag for the product.

This automatic bagger can package products at speeds up to 70 bags per minute using pre-opened bags on a roll, and up to 40 bags per minute using poly tubing.

Rollbag Magnum Horizontal Pneumatic Air Expeller

Magnum Horizontal - Auto Bagger for Order Fulfillment Bagging

Rollbag Magnum Horizontal Auto Bagger - Packaging Filters

CLAMCO Magnum Horizontal Rollbagger: Automatic Bagging System

NEW CLAMCO Magnum Horizontal Automatic Bagging System: Golf Club and Wrapping Paper Demo Video

PAC Earth Day 2022

Magnum Horizontal Showing Many Applications

Plastic Containers Magnum Horizontal

Packaging banners and signage at a printer with the Rollbag® Magnum Horizontal

Kits Magnum Horizontal

Door sweeps Magnum Horizontal

Mini blinds Magnum Horizontal

Craft brooms Magnum Horizontal

Patient Gowns Magnum Horizontal

Medical gowns Magnum Horizontal

Specifications

Model	Magnum Horizontal Automatic Bagger
Speed	Up to 40 bags per minute with poly tubing, 70 bags per minute with bags on a roll (dry cycle)
Bag Width	2" - 13" (51mm - 331mm)
Bag Length	4" - 96" (102mm x 2440mm)
Bag Thickness	1mil - 5mil
Seal Width	1/8"
Electrical Requirement	120v, 16a, 50/60hz
Air Requirement	80psi @ 5 CFM
Dimensions	38"W x 45"D x 45"H (965mm x 1143mm x 1143mm)
Weight	520lbs (236kg)
Warranty	1 year limited warranty, extendable up to 5 years when exclusively using Rollbag brand material
Origin	Made in the USA

Features

Machine Features

Works with poly tubing as well as pre-opened bags on a roll
Lower material cost when using poly tubing by making bags in-line before they are filled and sealed
Wide color touchscreen is operator friendly and has clear readable prompts and alarms
Two foot long discharge conveyor
Quick roll change feature to increase productivity
Large diameter rolls and variable bag length enables machine to package products of practically any length
On board memory stores multiple job data to recall at a later date
Stand with casters and compact design provides portability

Maintenance Benefits

Designed to minimize preventive maintenance costs
Self diagnostics ensure quick problem solving
Off the shelf components

Safety Features

Low pressure closing with obstruction detection system for improved operator safety
Unobtrusive guards
Prominent emergency stop button
Safety light curtains for added operator safety during manual loading (optional)
220V designed to meet CE requirements

Options

Label Printer Applicator

Ideal for order fulfillment. Print and apply shipping and other labels directly on the bag with label printer applicator.

Magnum Horizontal Pneumatic Air Expeller

Reduces package size by compressing air out of the bag with the top-mounted foam air expeller.

Light Curtain

A light curtain prevents the operation of the bagger when the optical detection field is obstructed.

220V Wiring

For facilities with 220V requirement.

Additional Options

Printing Options

Thermal transfer printer for text, graphics, and barcodes printed right on the bag
Print Registration for use with pre-printed poly tubing that uses registered print
NiceLabel Pro Software for a thermal printer or label printer applicator

Sealing Options

15″ Bag width for sealing bags up to 15″ wide
1/4″ Wide seal for increased seal integrity
Header bag with hang hole punch to create a header seal with a hang hole on the bag
Articulating guide arms assist in product loading
Extended length of the exit conveyor or product load area

Product Loading Options

Easy Load Bag Opener squares the bag open for loading and pulls the seal flat prior to sealing
Increase the Seal Bar pass through to 6.25” for bulky products

Safety Options

When the PLC detects an error an Audible Warning System alarm sounds and the machine stops
Dual Palm Buttons must be pressed simultaneously in order for the machine to cycle

Other Options

A pneumatic Adjustable Hole Punch puts a small hole in the bag, allowing for excess air to escape
The End of Roll Detector monitors when bags are in position and when the end of a roll has been reached
The Bag Open Sensor assures that when a bag is in the load position it is open and ready to accept product
Clean Room Ported Exhaust is used inside of cleanroom
Separate Air Entry uses a different air stream to blow the bag open
Spare Parts Kit
