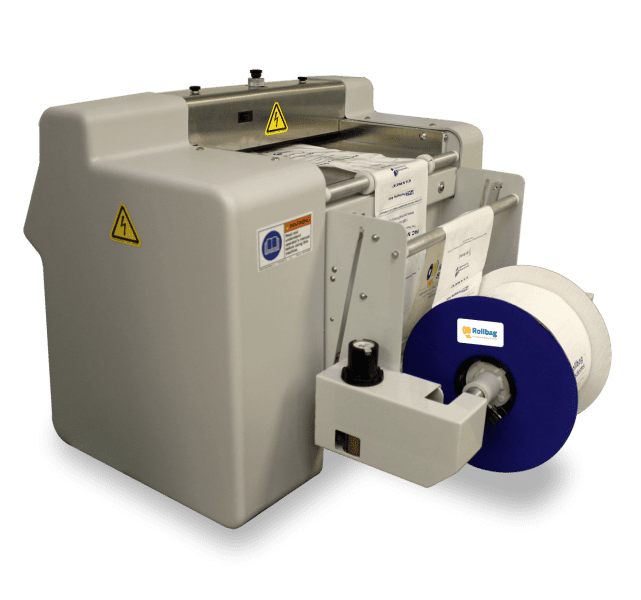

Rollbag® R1275 Auto Bagger

Products > Rollbag® Auto Baggers > Automatic Baggers > Rollbag® R1275 Auto Bagger

High Speed and Low Cost of Ownership

Operating at speeds up to 60 bags per minute, the Rollbag R1275 Automatic Bagger is the fastest automatic bagger in its class. This exceptionally rugged and versatile automatic bagger is designed for multi-shift production and matches the performance of automatic baggers which cost thousands more. The high performance of this automatic bagger is accomplished through continuous development of its time tested platform, a powerful PLC, and a unique stepper motor drive. Perfect for cramped work areas, the Rollbag R1275 is compact and has a small footprint.

Videos

Rollbag R1275 Automatic Bagger with Thermal Transfer Printer - Packaging Medical Devices

R1275 w Kit Counting Conveyor

Rollbag R1275 Automatic Bagger for Injection Molded Parts - Packing Pacifiers

Rollbag R1275 Auto Bagger with Thermal Printer

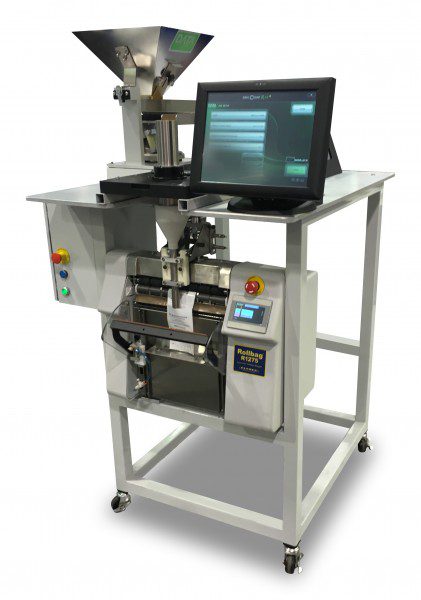

Rollbag R1275 Vision - Automatic Bulk Vision Counting and Bagging System

Rollbag R1275 Automatic Bagger - Packaging 3-Ply Face Masks

Rollbag R1275 Automatic Bagger with Scale - Bagging Nuts

Rollbag R1275 Bagger integrated with Baxter Robot

Medical Tubing R1275

Metal & plastic parts R1275

Rollbag R1275 Automatic Bagger with Auger Filler

Rollbag R1275 automatic bagger with label printer applicator

Rollbag R1275 Auto Bagger - Packing Molded Products

Medical Packaging Overview Video

New bagger accessories & resources for tabletop automatic baggers

Specifications

Model	Rollbag R1275 Automatic Bagger
Speed	Up to 60 bags per minute (dry cycle)
Bag Width	2" - 10" (50mm - 304mm)
Bag Length	3" - 20" (76mm - 508mm)
Bag Thickness	1mil - 5mil
Seal Width	1/8"
Electrical Requirement	120v, 7a, 50/60hz
Air Requirement	80psi @ 2 - 5 cfm (5.5bar @ 140 l/m)

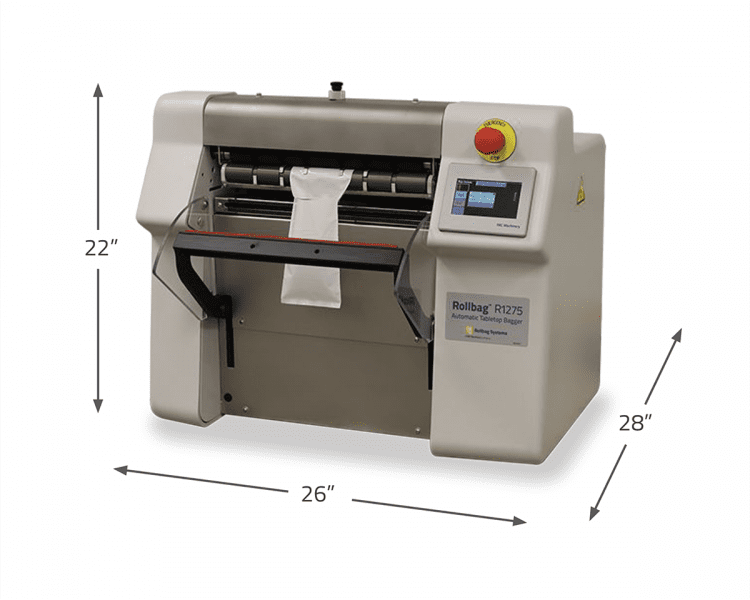

Dimensions	26"W x 28"D x 22"H (661mm x 711mm x 559mm)
Weight	75lbs (35kg)
Warranty	1 year limited warranty, extendable to 3 years when exclusively using Rollbag brand bags on a roll
Origin	Made in the USA

Features

Machine Features

High throughput packaging (up to 60 bags/min) in a compact tabletop design
Designed for multi-shift production

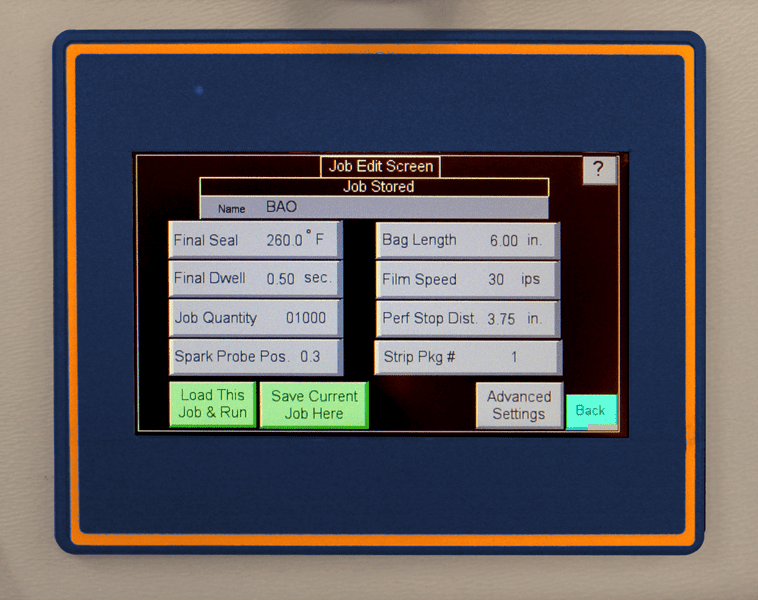

Operator friendly color touch screen stores sealing parameters for 20 jobs
Simplicity of the interface makes the R1275 very user friendly and simplifies operator training
Integrated dancing roller system designed for consistent film feeding
Interface port integrates counters, scales, robotics and other automatic feeding devices
Programmable time delay for operator pace control or automatic feeding
Foot pedal, control panel, or optional photo-eye available to trigger the bagger

Maintenance Benefits

Designed to minimize preventative maintenance costs
Self diagnostics ensure quick problem solving
Off the shelf components

Safety Features

Low-pressure closing with obstruction detection system for improved operator safety
Unobtrusive guards
Prominent emergency stop button
220 Volt version designed to meet CE requirements

Options

Air Expeller/ Bag Deflator

This option mounts to the pressure bar to compresses the air out of the bag as it travels inward toward the machine just prior to the sealing process.

Sorting Table with Dividers

Stainless Steel table mounted above the machine that allows for sorting, storing and kitting of product before manually pushing the product into the adjustable funnel, which guides the product into the bag.

Additional Parts Funnels

Wide variety of standard and custom funnels to assist product handling.

Articulating Bag Support

Pneumatically operated shelf that is used to support the bottom and back of the bag during the loading process. The shelf then tips down and out of the way after the bag has been sealed.

Bag Spreader / Seal Flatteners

Pneumatically operated opposing fingers that pull each side of the bag taught above the seal area to flatten the bag seal area; thus, decreasing the possibility of wrinkles in the seal area and increasing seal integrity.

Bag Support

Fixed shelf to support the bags during loading of heavy products.

Dual Start Buttons (Anti-Tie Down)

Two optical no touch” buttons must be passed through simultaneously to initiate the cycle operation of the bagger. If the two sensors are not passed through at the same time, the bagger will not cycle ensuring that fingers or hands cannot be in the seal area. Recommended for hand load applications where no funnel is used.

Ergonomic Start Switch

A pass through switch used in place of a foot pedal to cycle the machine.

Hot Stamp Printer

For printing date and lot codes.

Kit/ Counting Conveyors

To help with kit packaging and/or product counting operations.

Label Printer & Applicator

Print and apply labels to your package before inserting the product. This high-resolution industrial thermal transfer printer with label applicator is great for type, graphics, and barcodes, 300 dpi (dots per inch) and a 4″ print width. Enjoy speedy label printing and output up to 300mm/s. Compatible with a wide range of peripherals and software for customized solutions.

Thermal Transfer Printer

203 dpi (dots per inch) 4.09 inches wide, speeds up to 10 inches per second. The printer can print barcodes, several text formats and alphanumeric symbols and special characters. It has a built-in ribbon saving feature standard, thus reducing wasted thermal transfer ribbon between imprints. USB, Parallel and Serial ports available.

Tabletop Console Stand

Mechanically adjustable stand for all of the tabletop machines.

220 Volt Option

Is available 220V, 50/60 Hz.

Motorized Adjustable Height Stand

Mount the auto bagger to this optional motorized height adjustable stand. Includes enough space to place rolls of bags. The stand is adjustable in height at the push of a button, making it comfortable for all operators, in a sitting or standing position. It features casters to easily move the machine around a production facility or warehouse. Stand goes from 22" to 34" high.

INCLINE OUTFEED CONVEYOR

Using the new motorized adjustable height stand, allows the user to also add PAC’s Motorized Conveyor (see options section). Bags drop down from the bagger onto the stainless conveyor that gets placed in front of the bagger. Products travel up the adjustable incline section which has a height of approximately 35”. Conveyor is available in 10″ & 16″ widths.
