Rollbag® Vision Counting System

This automatic bulk counting and bagging system combines speed and accuracy for packaging small products.

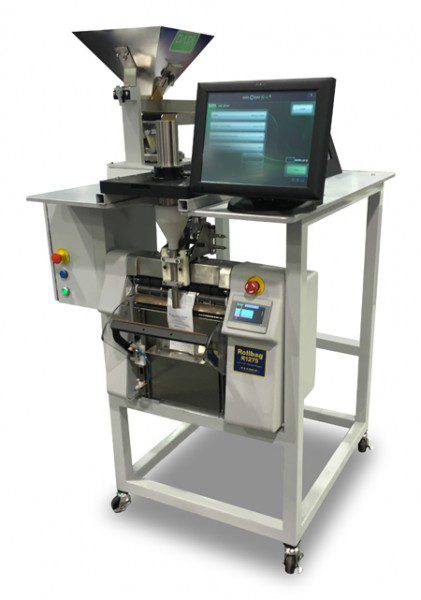

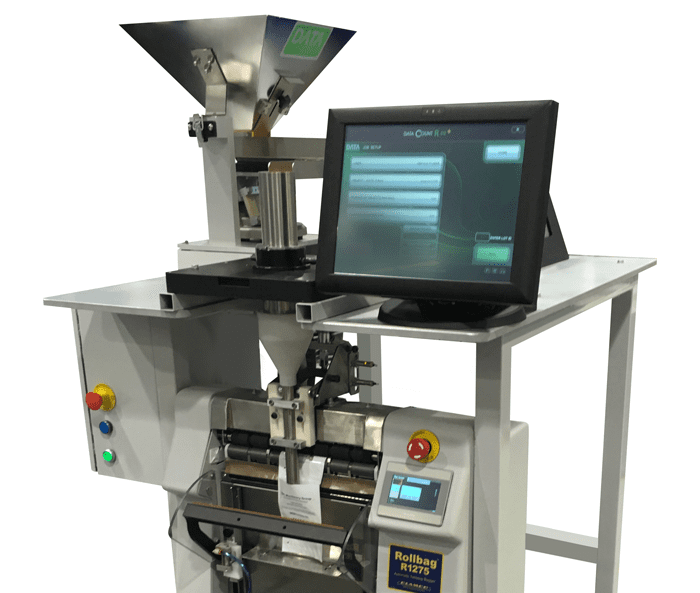

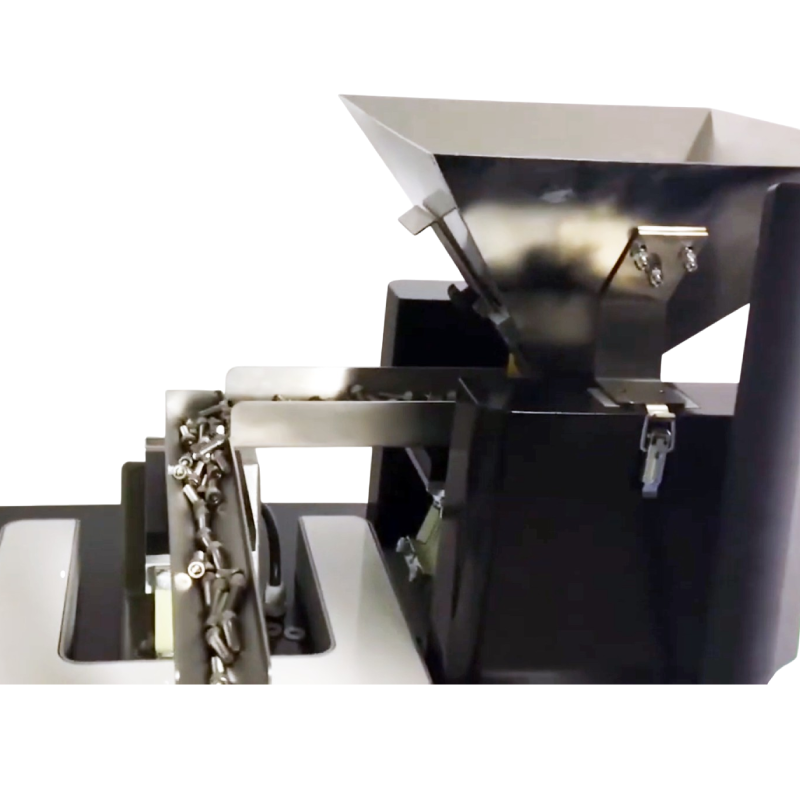

The Rollbag Vision Counting System is an extremely accurate automatic bulk counting and bagging system for packaging small parts. The compact system combines an industry proven automatic bagger with an advanced vision system. When used together the system can count and bag large quantities of small parts quickly.

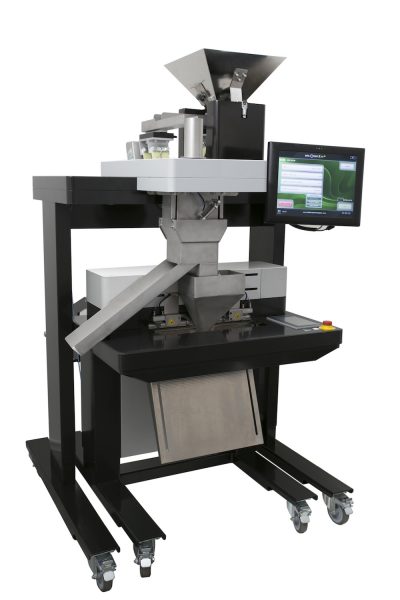

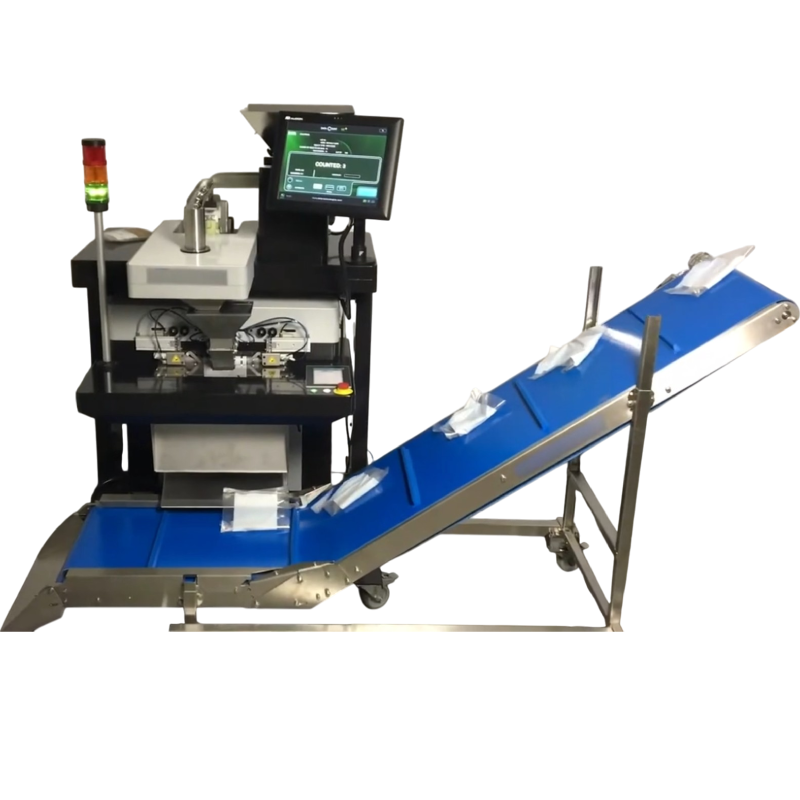

The super accurate vision system relies on advanced mathematical algorithms to count bulk parts ranging in size from 0.25″ to 1″ at up to 99.9% accuracy. Vision Counting System can be paired with the Rollbag R1275 as well as the Rollbag R3200 Automatic Bagger. With the use of Rollbag brand pre-opened bags on a roll, fast packaging speeds may be achieved and bag size changeover can be accomplished quickly.

The Rollbag Vision Counting System includes a 1-year limited warranty, which is extended up to 5 years when exclusively using Rollbag brand pre-opened bags on a roll.

Videos

Specifications

ModelVision Counter
Object Size0.25"–1"
Counting RateUp to 25,000 objects per minute
AccuracyUp to 99.9%

Features

Operating Benefits

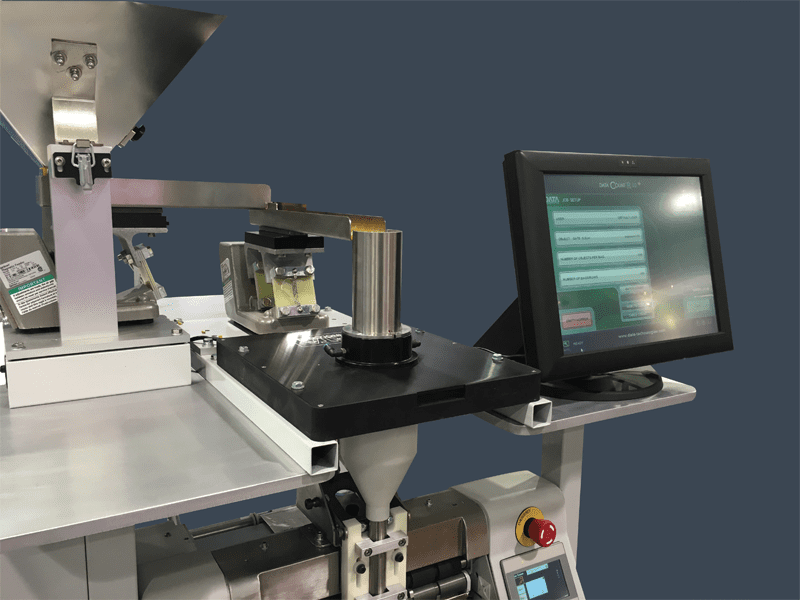

  • Touchscreen interface with clear readable prompts and alarms
  • 3D imaging for 99.9% accuracy on parts that are 0.25″–1″ in size

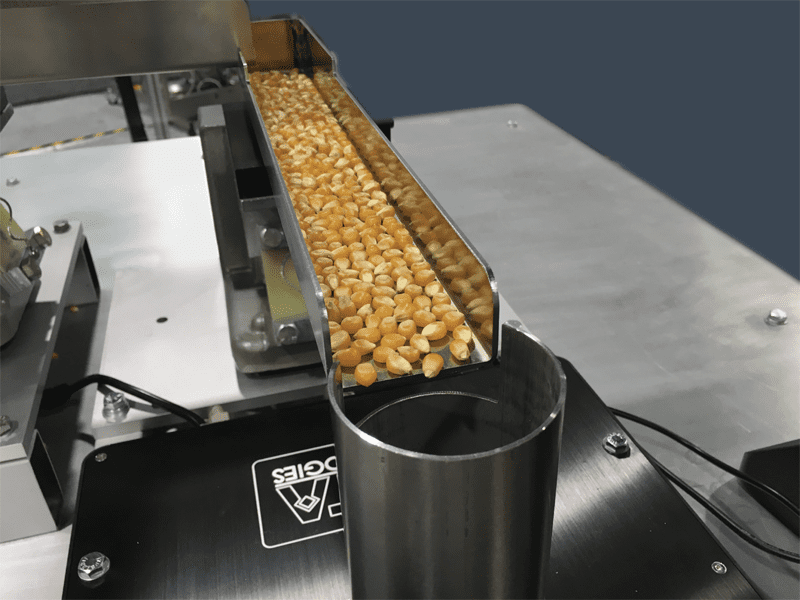

  • Double track feeding for product separation prior to counting
  • Articulating funnel ensures product drops directly in the bag

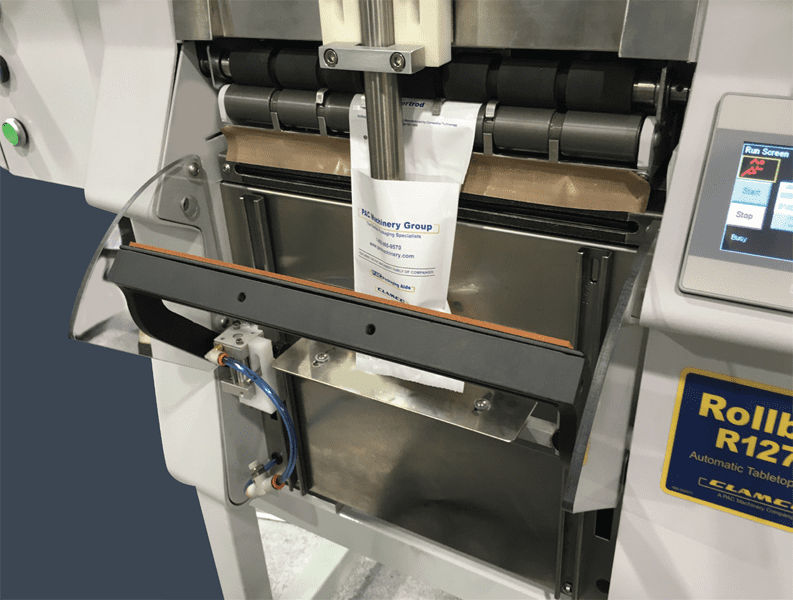

  • Bag support stabilizes bag during loading and removes it
    from packaging area at end of cycle
  • Bag sensor ensures every bag is open before filling the product
  • Print directly on each bag via thermal transfer printer (optional)
  • Product overfill reject system (optional)

Maintenance Benefits

  • Off the shelf modular components for easy replacement
  • Remote network access for improved troubleshooting
  • Self-diagnostics ensure quick problem-solving
  • Reliable components designed for multi-shift production

Set Up Features

  • Easy changeover for different sizes – no special tools required
  • PLC with multiple job storage
  • Batch counters, packaging statistics & process parameters
  • Uses Rollbag pre-opened bags for fast bag size changeover
  • Integrated frame with casters for added mobility

Safety Features

  • Unobtrusive guards
  • Prominent emergency stop button
  • Designed to meet CE requirements
