Vertrod DSL & Bagmaster™

Heavy-Duty Drop Sealer

The Vertrod DSL is a heavy-duty drop sealer with a seven-inch jaw opening to allow for pass-through product loading. This model is can be equipped with an air expeller assembly for compressing flexible packages, eliminating excess air, and reducing overall package volume. The direct drive jaw motion provides high sealing pressure and is capable of making hermetic seals with temperatures ranging from 200°F to 650°F. The Vertrod DSL employs PAC’s state of the art solid-state control circuitry along with an improved safety system.

Vertrod drop sealers are built for the most demanding requirements to decrease overall packaging time. This model is often used in conjunction with a bag opener to speed up the bag loading process. The filled bag is fed through the sealing jaws to an angled outfeed table where the bottom of the bag is supported. A photocell detects when the product is in position, activating the air expeller assembly to compress and force air out of the package. An adjustable timer allows for delaying the jaw closure, independent of the air expeller, to ensure maximum compression and evacuation of air prior to initiating the sealing cycle. Once the sealing cycle has ended, the support fingers retract, allowing the sealed bag to slide from the out-feed table. Simultaneously, the jaws open allowing the next filled bag to be fed. The DSL is adjustable for manual cycling by use of foot pedal or optional palm button.

Read More

Videos

Specifications

Technical SpecsVertrod DSL & Bagmaster
Seal Width1/4″
Seal Lengths14″, 20″, 24″ or 30″
Air Requirement (min)100 psi
Electrical Requirement115V

Features

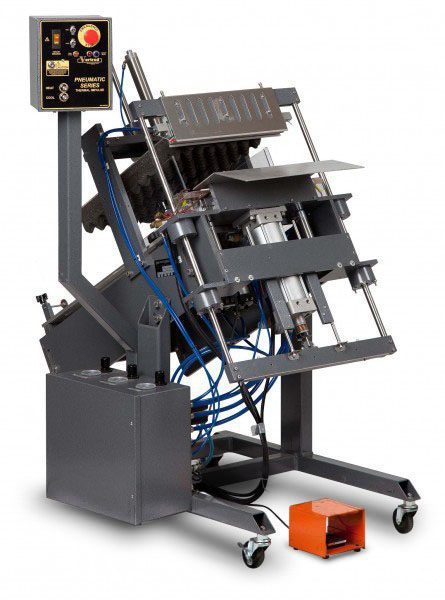

Vertrod DSL Heavy Duty Drop Sealer

  • Single side heater bar with opposing pressure bar (bottom jaw heated)
  • Time-based thermal impulse sealing system
  • Independent Seal and Cool timers from 0 to 3.75 seconds (.25 second increments)
  • Direct drive jaw motion for increased sealing pressure
  • Jaw motion delay timer for precise activation after full compression/air evacuation
  • Adjustable bag support/release fingers to accommodate various package lengths
  • Outfeed table is height and angle adjustable.
  • Heavy-duty welded steel frame
  • Lower cylinder structure to allow for 7″ jaw opening and product clearance.
  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected.
  • Photo eye cycle activation in automatic mode and foot pedal activation in manual mode

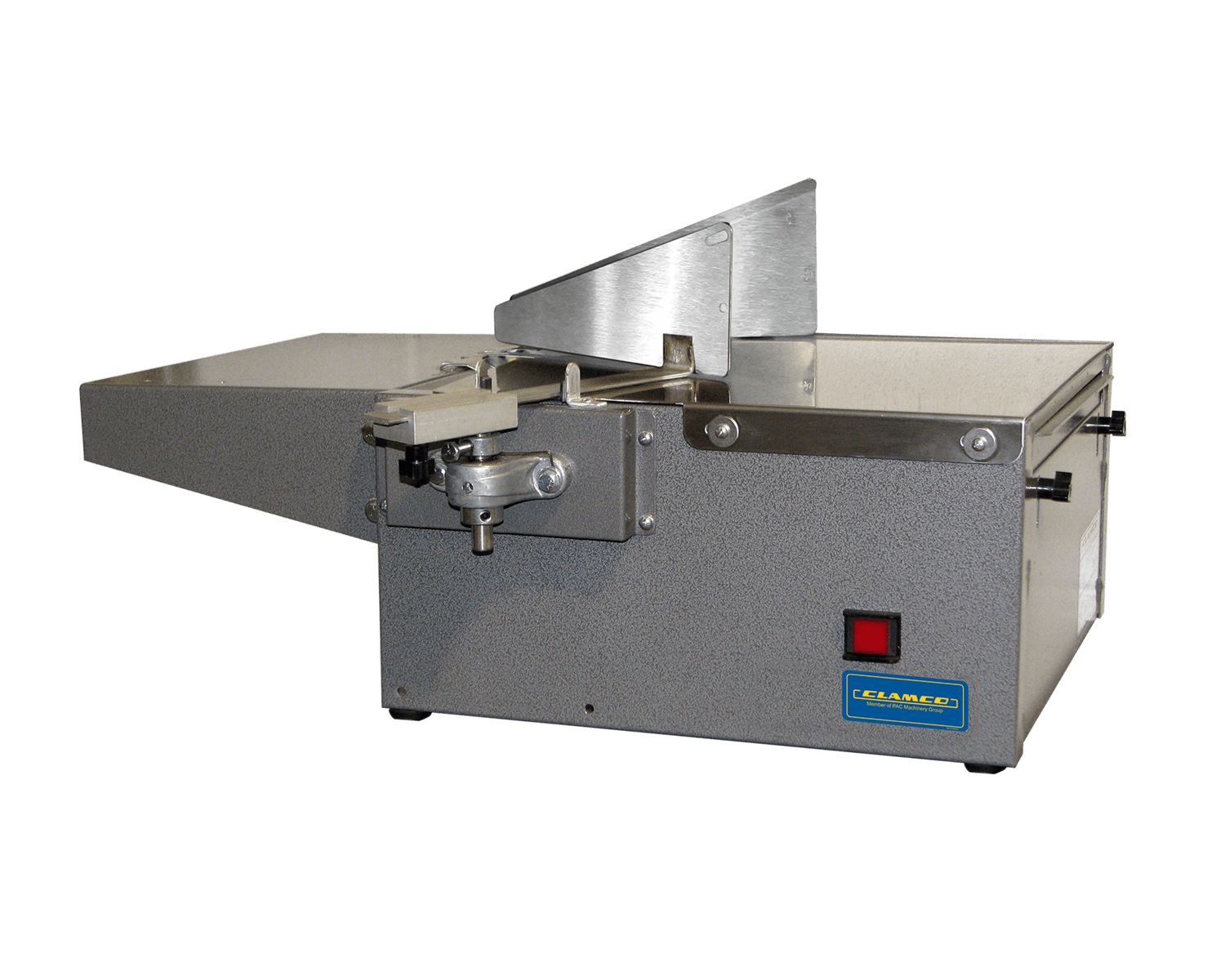

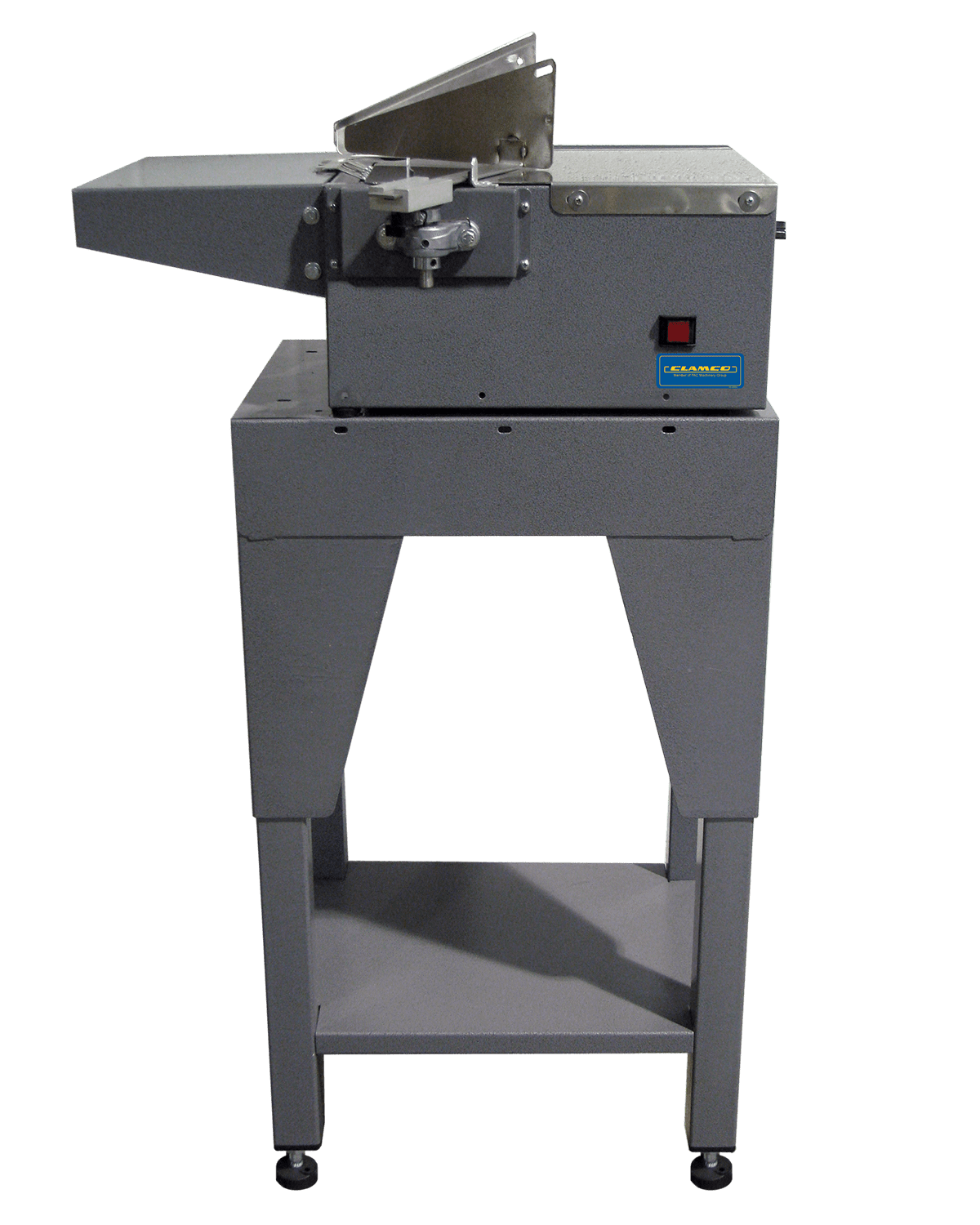

Bagmaster Bag Opening and Feeding Machine

  • 400 Series (up to 15″ wide)
  • 400 Series (up to 25″ wide)
  • 500 Series
  • FSR (for food processing applications)

Options

  • Air Expeller assembly for compression of product and evacuation of air
  • Wider seal widths: 3/8″, 1/2″
  • Dual Seals (parallel): 2 x 1/8″, 2 x 1/4″
  • Bi-active jaws (top and bottom heated bars)
  • Hot Wire Trim (beaded trim seal)
  • Cold Cut Wire Trim
  • Suretemp™ temperature controller with digital readout (up to 350°F)
  • High Temperature Package (350°- 650°F)
  • Dual palm controls, anti tie down
  • Scrap blow-off (with cold wire trim seal ONLY)
  • Water re-circulating package
  • Water Chiller
  • Heavy-duty locking swivel casters
