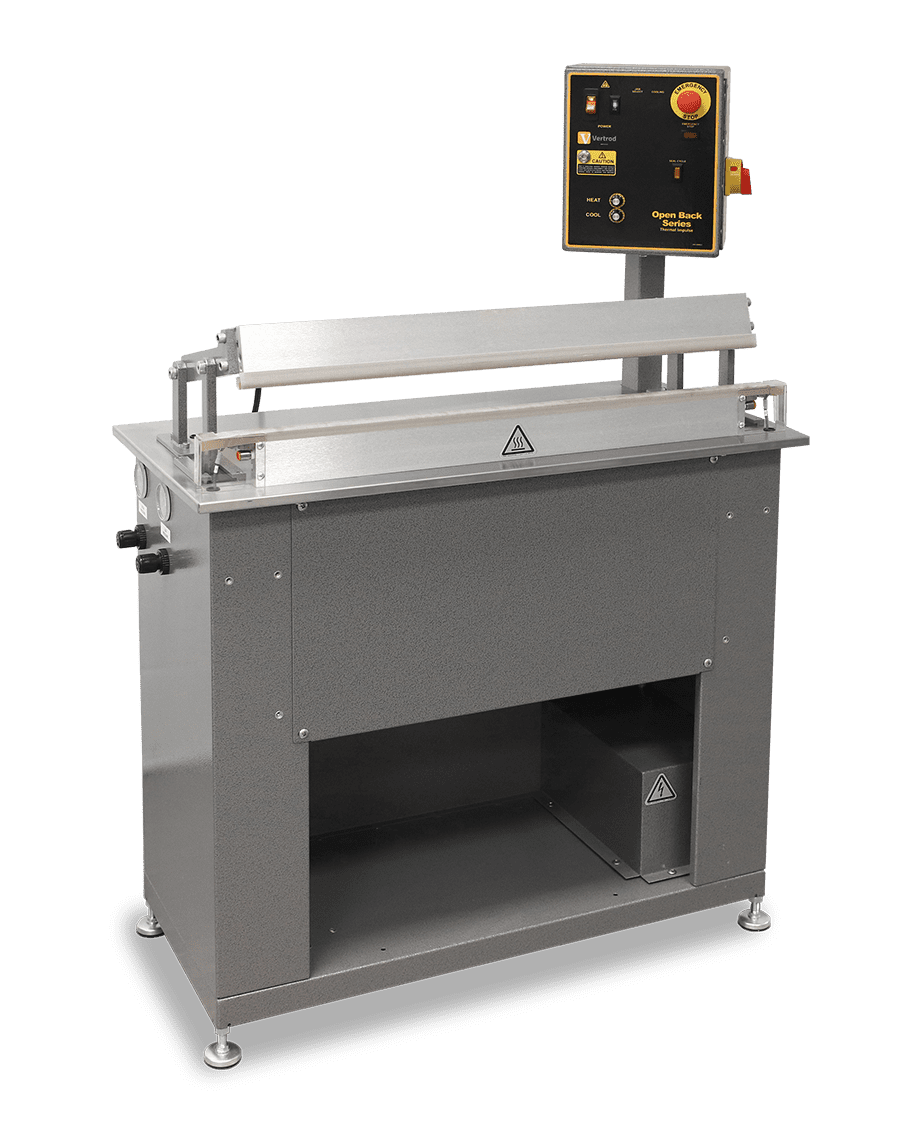

Vertrod OB

Industrial Impulse Sealer

Industrial pneumatic sealer for front and back operation
or for sealing an uninterrupted flow of film

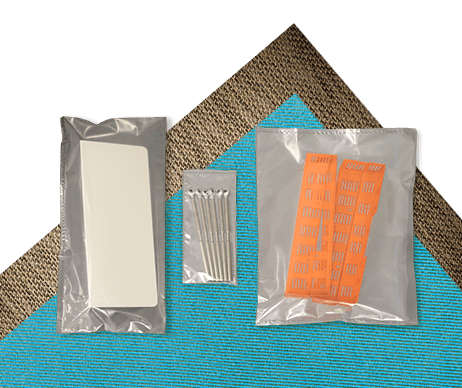

his industrial line of pneumatically-operated thermal impulse sealers and trim sealers are designed for demanding sealing applications of thick or high temperature materials. Generally used in manually fed packaging or fabricating applications but can also be utilized in conjunction with more automated machinery. The Vertrod OB impulse bar sealer is capable of making hermetic seals with temperatures ranging from 200°F to 650°F available. Open back construction allows the user to operate the machine from the front or rear of the sealer as well as providing pass-through ability for an uninterrupted flow of film. The Vertrod OB employs PAC’s state of the art solid-state control circuitry along with an improved safety system.

The Vertrod OB impulse bar sealer is available in four seal lengths ranging from 14″ to 30″ with a variety of options for flat seals, trim seals, or a combination of both. Contact us for more information and details on custom applications.

The Vertrod OB thermal impulse sealer is made in the USA and includes a 3-year limited warranty.



Technical SpecsVertrod OB
Seal Lengths14″, 20″, 24″, 30″
Seal Width 1/4″ (1/8″, 3/8″, 1/2″ options)
Air Requirement (min)80 psi
Electrical Requirement115V


Sealing features

  • Seal Lengths: 14″, 20″, 24″, 30″
  • Seal width: 1/4″ standard (other widths optional)
  • Single side heater bar with opposing pressure bar
    (bottom jaw heated)
  • Time-based thermal impulse sealing system

    Safety features

  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected
  • Foot switch cycle activation

Operating features

  • Thermal impulse time control system
  • Independent seal and cool timers from 0 to 3.75 seconds (.25 second increments)
  • Open-back feed through style with 3″ jaw opening
  • Adjustable pressure regulators for setting for jaw pressure while sealing and jaw opening
  • Product support table with height and angle adjustment

Construction features

  • Heavy-duty floor standing cabinet with leveling feet
  • Stainless steel table top surface


Cold wire trim
The material is trimmed along the seal during the sealing process.

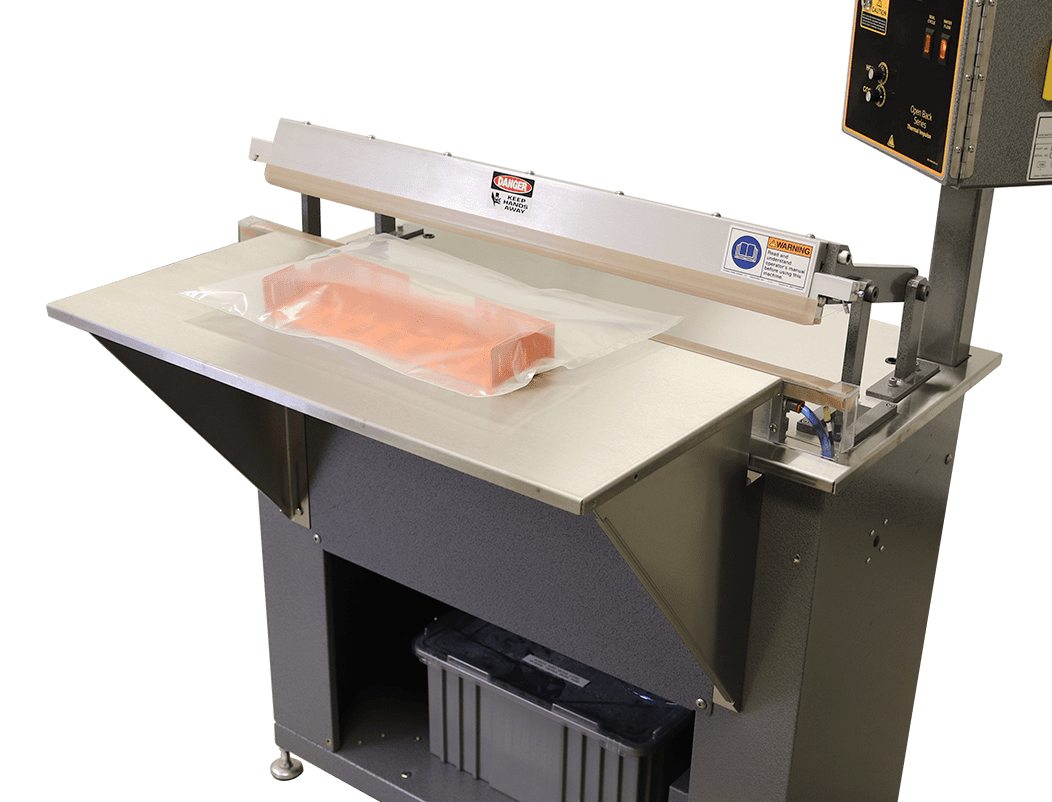

The stainless steel workshelf is used to support the package during sealing. The workshelf is the width of the seal bar, 14” deep, and can be lowered 2” from the seal bar.
Bi-active Seal Bars
Seal bars are top and bottom heated for sealing thick or complex materials.
Dual Seals
Two parallel seal bars to create one or two seals. Available seal sizes 2 x 1/8″, or 2 x 3/8″

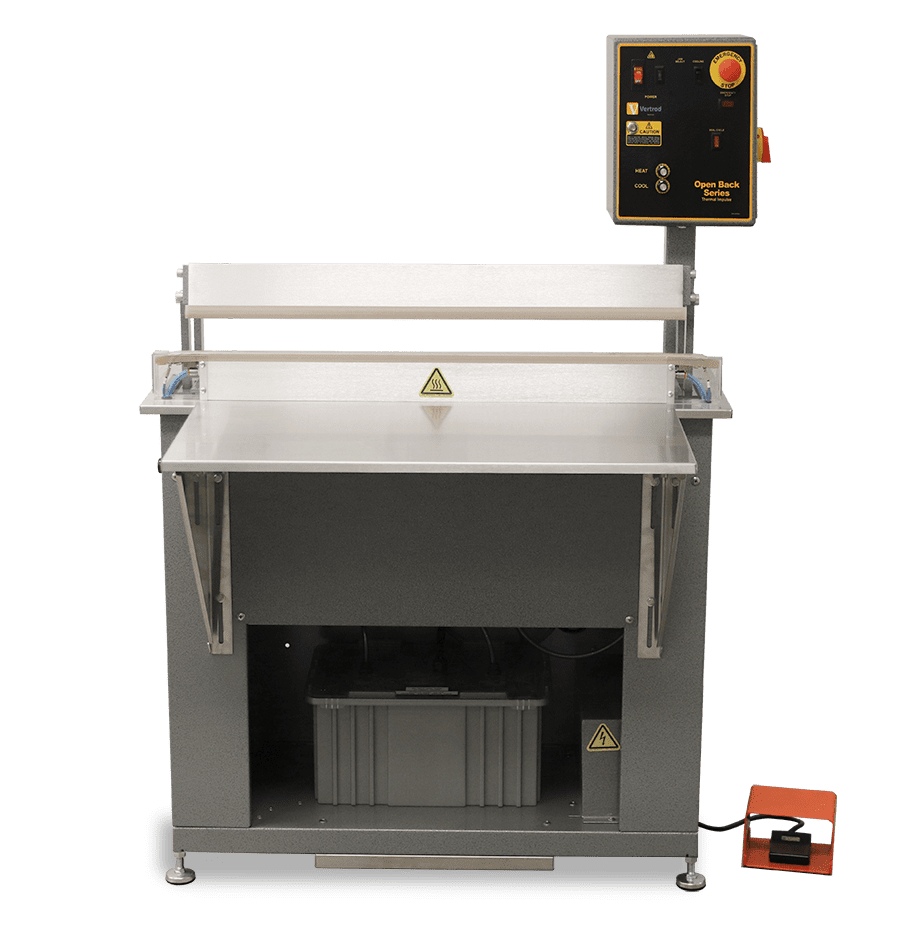

Water Chiller
Cools the seal bar quickly for intense or high-rate sealing operations
Water Re-circulation Package
Works in conjunction with the water chiller. Easy setup and safety shutoff.
Dual palm controls
Anti-tie down. This sensor detects the presence of the operator’s hand on the buttons and activates the seal bar.
Suretemp™ temperature controller
Easy to use controller with digital readout (up to 350°F). Set and monitor the temperature of the seal bar.

Additional Options

Seal Widths
1/8″,  3/8″, 1/2″

Hot Wire Trim Seal
(Beaded trim seal).

Water Cool Ready Heater Bar

Nozzle-Style Vacuum System

High Temperature Package
(350°- 650°F).

Scrap Blow-Off
(with cold wire trim seal only).

Heavy-Duty Locking Swivel Casters
