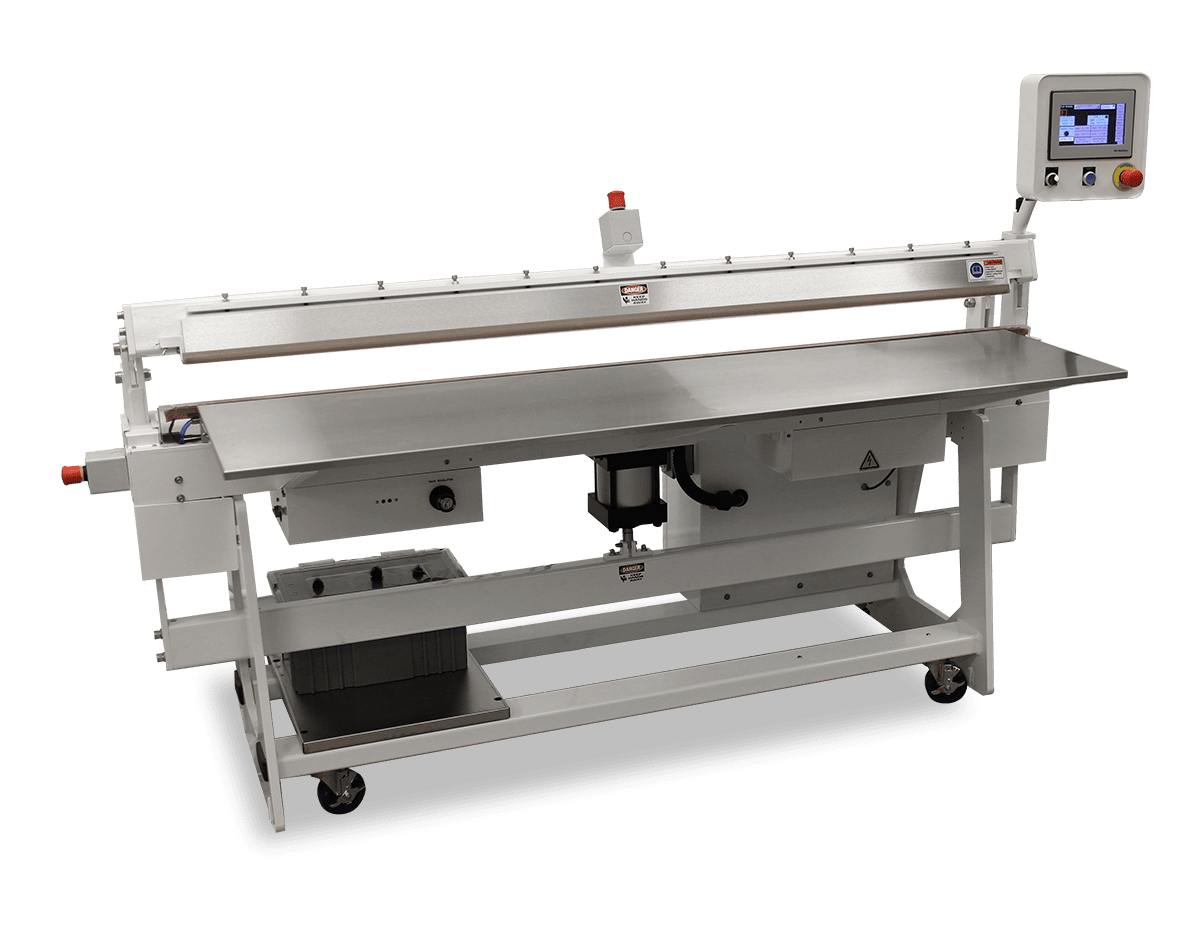

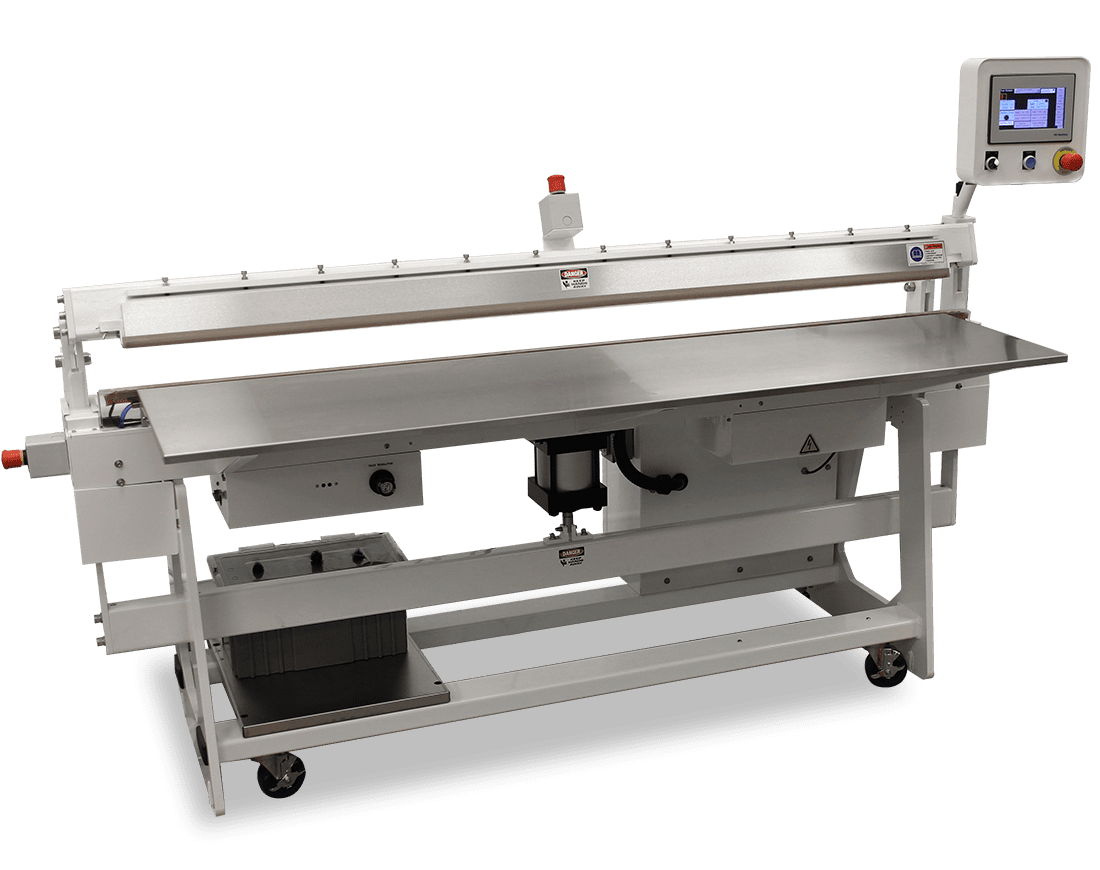

Vertrod PS Med

Medical Impulse Sealer for wide materials

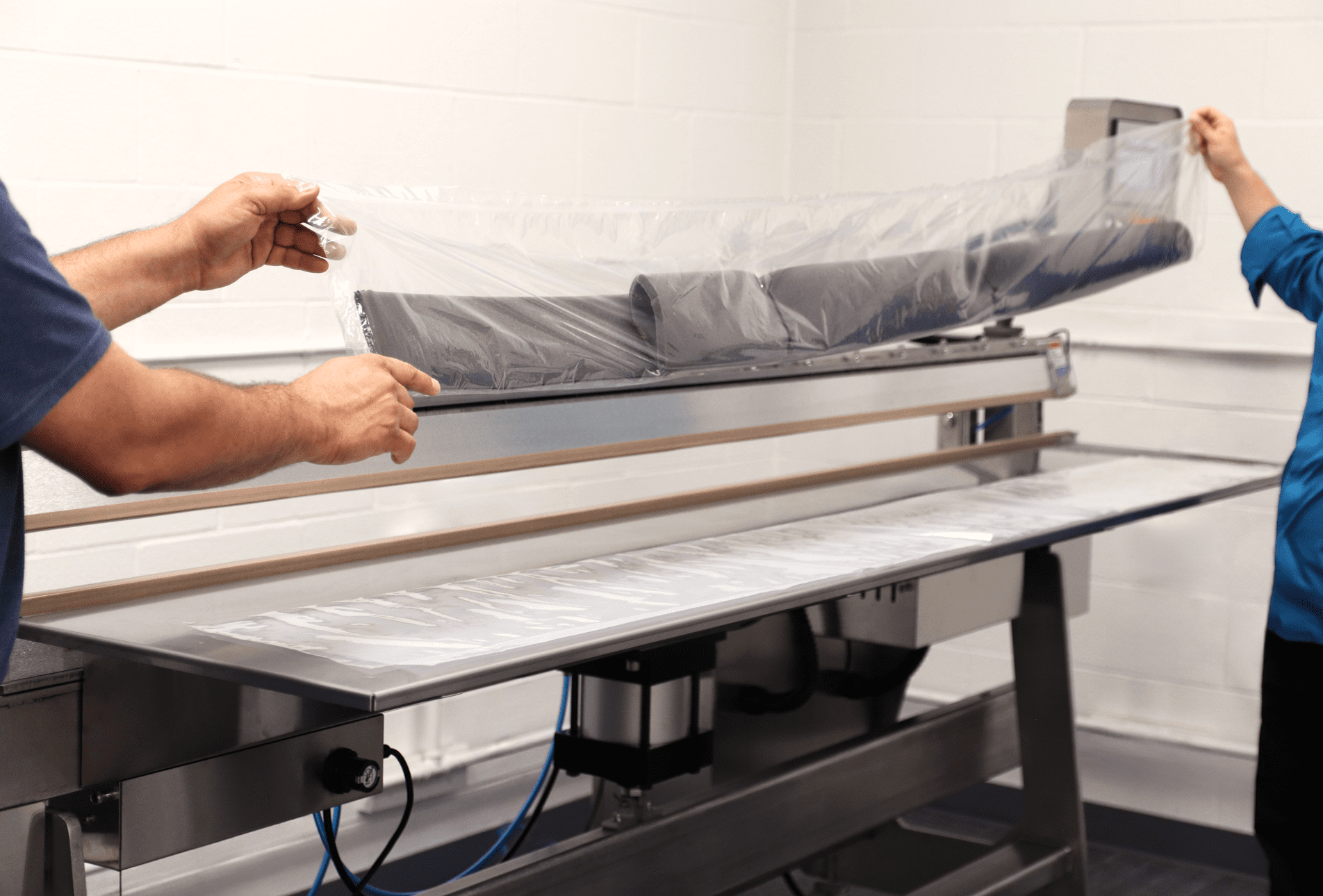

The Vertrod PS Med impulse sealer is designed for medical applications requiring heavy-duty sealing of wide materials that require validation. These sealers are generally used in manual packaging or fabricating applications but can also be utilized in conjunction with more automated machinery. The PS Med pouch sealer is capable of making hermetic seals with temperatures ranging from 200°F to 650°F. The welded structural steel tubular frame provides the stability necessary to make seals up to 120″ long and seal widths up to 3/4 inches wide. Open-back construction allows the user to operate the machine from the front or rear of the sealer, as well as providing pass-through ability for an un-interrupted flow of film. This machine is equipped with the PAC’s medical control system. It is a precise temperature-based system with real-time monitoring of all sealing parameters for applications requiring seal validation. Built-in alarm functions prevent operation when outside of validated settings. External verification ports provide for calibration of controllers.

Read More



Technical SpecsVertrod PS Med
Seal Lengths 36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″
Seal Width5/16″
Air Requirement (min)100 psi
Electrical Requirement115V/230V


  • Single heater jaw with opposing pressure jaw (top jaw heated)
  • Incrementally adjustable top jaw for precise pressure alignment along sealing length
  • High flow water cool ready heater bar
  • PAC medical control system for applications requiring seal validation
  • Seal parameter monitoring with alarm lockout function
  • Calibratable controllers with external verification ports
  • Suretemp™ temperature controller with digital readout to 350°F
  • Independent seal and cool timers (.1 sec. increments to 9.9 sec.)
  • Open-back feed-through style with 3″ jaw opening
  • Welded structural steel frame construction with leveling pads that allow for anchoring machine
  • FDA compliant white powder coat finish
  • Ported exhaust
  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected
  • Foot pedal cycle activation


  • MedLogic Controller: With touchscreen interface
  • Wider Seal Widths: 3/8″, 1/2″
  • Dual Seals (parallel): 2 x 1/8″, 2 x 1/4″
  • Bi-active Jaws: (top and bottom heated seal bars)
  • Jaw Selector Switch: (Bi-Active or Top Heat)
  • Hot Wire Trim Seal: (Beaded trim seal)
  • Cold Cut Wire Trim
  • High Temperature Package: (350°- 650°F)
  • Stainless Steel Adjustable Work Shelf
  • Dual Palm Controls: Anti tie down
  • Water Re-Circulating Package
  • Water Chiller
  • Pneumatic Flying Knife Cut Off
  • Motorized Roll Holder Assembly and Polylock
  • Hot Embossing Tool
  • Stainless Steel Frame
  • Heavy-Duty Locking Swivel Casters
