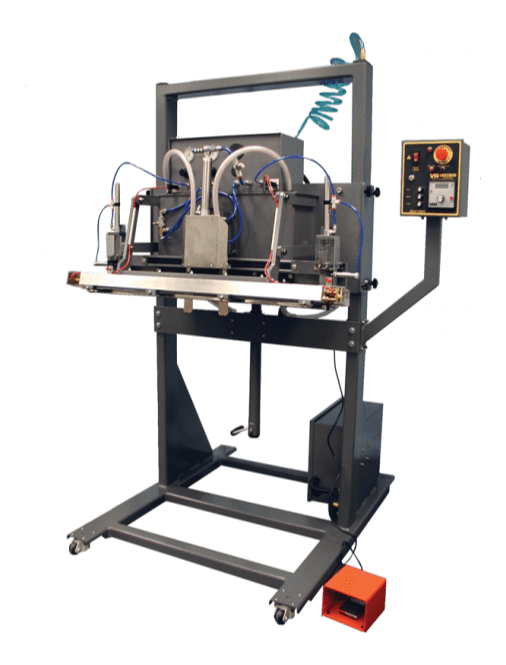

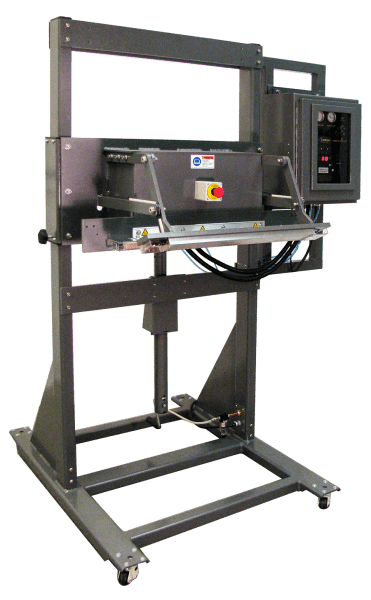

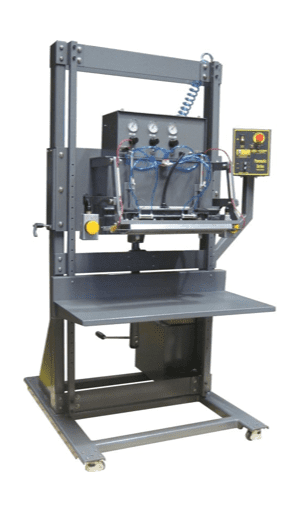

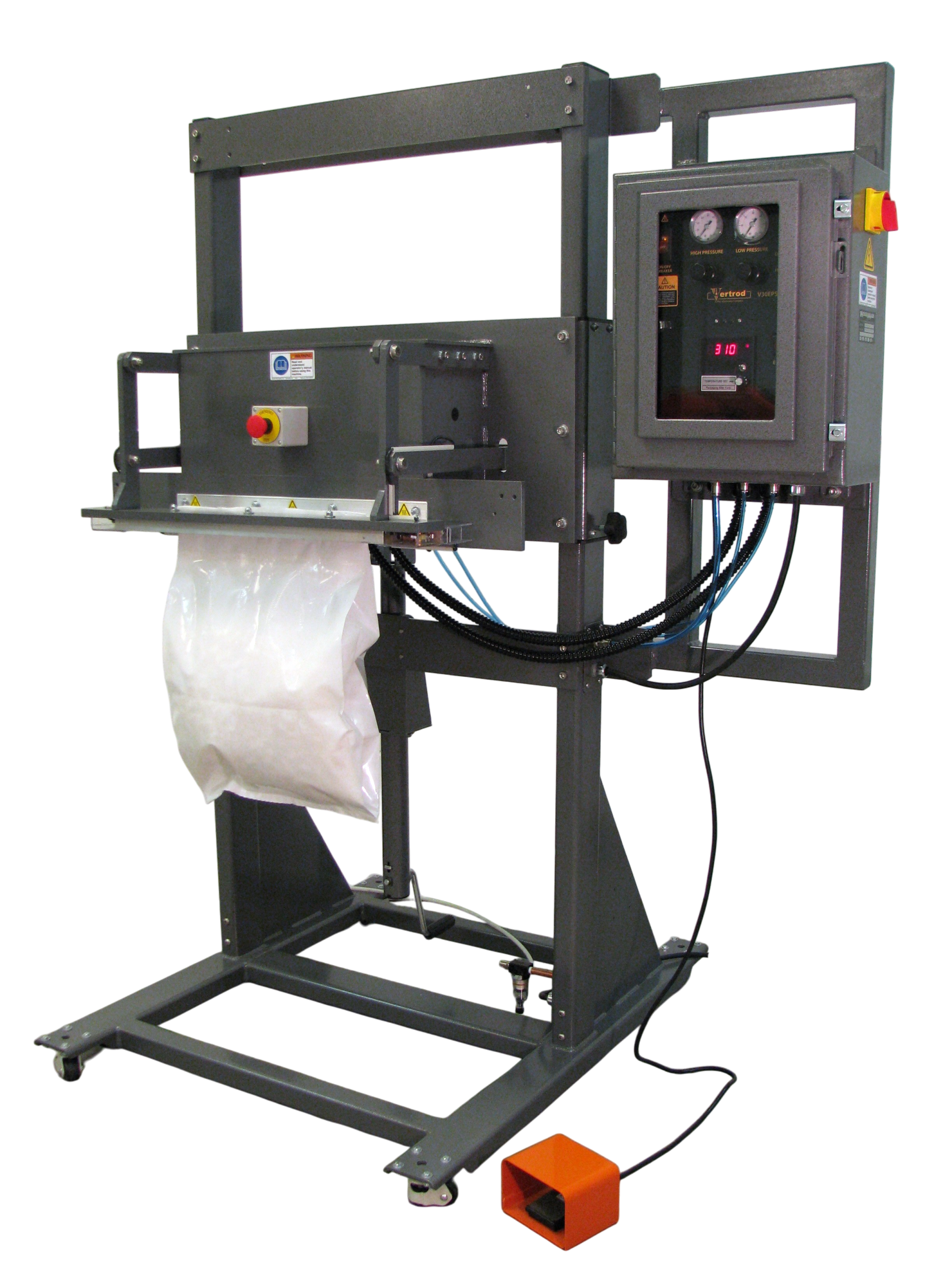

Vertrod PS Vertical

Impulse Heat Sealer

The Vertrod PS Vertical impulse sealer is designed for demanding applications requiring high temperatures or thick materials that need to be sealed upright. Vertrod sealers are capable of producing quality hermetic seals in all materials ranging from seal temperatures of 200° F to 650° F (different materials seal at different time cycles).

This series of heat sealers are available in a variety of different working lengths to fit your packaging needs. The PS Vertical comes with a variety of features and options, including vacuum nozzles to evacuate the air out of the bag.

The Vertrod PS Vertical impulse sealer is made in the USA and includes a 3-year limited warranty.

Financing options from $190/month


Technical SpecsVertrod PS Vertical Impulse Sealer
Seal Width1/4″
Seal Lengths20″, 30″, 42″, 48″, 54″
Air Requirement (min)100 psi
Electrical Requirement115V/230V (dependent on model and options)


  • Vertical Frame style
  • Adjustable seal height
  • 4″ jaw opening
  • Single heater bar with opposing pressure bar
  • Welded frame construction
  • Pneumatic low-pressure jaw close safety system with release if obstruction is detected
  • Time-based thermal impulse sealing system
  • Independent seal and cool timers
  • Foot pedal activation


  • Vacuum Nozzles (to evacuate the air in the bag prior to sealing)
  • Gas Flush System (for modified atmosphere packaging)
  • Wider seal widths: 3/8″, 1/2″
  • Bi-active jaws (top and bottom heated seal bars)
  • Suretemp™ temperature controller with digital readout (up to 350°F)
  • High Temperature Package (350°- 650°F)
  • Cold cut wire trim seal
  • Adjustable bag support
  • Pneumatic bag stretcher to prevent wrinkles
  • Anti-tie down dual palm controls
  • Two stage seal cycle engagement
  • Water cool ready heater bar (Faster operation)
  • Water re-circulation package
  • Water Chiller
