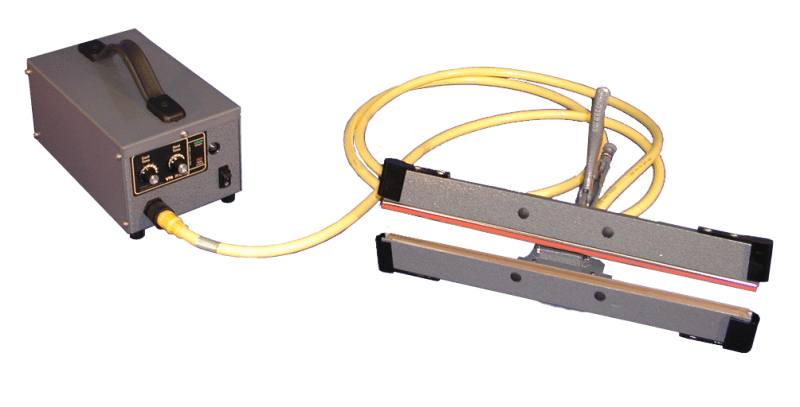

Vertrod VH Hand Sealer

Portable Hand Held Sealer

The Vertrod VH is a ruggedly constructed manual portable hand held sealer designed for packaging and fabricating applications where the sealing jaws must be brought to the work area. The sealing jaws are built with a positive locking vise grip for strong holding pressure during the sealing cycle.

For convenience and versatility, the model VH is used at the location of the item that needs to be sealed and comes with the cord connected to the control box. This series of heat sealers are available in a variety of different working lengths to fit your packaging needs. The features for the standard sealer configuration include a 1/8″ seal width and an adjustable seal timer for a variety of materials. The unit has a spring jaw closure and handle mounted cycle button for easy and convenient operation. The VH is available in 8″, 12″, 18″,  and 24″ seal lengths with a time-based thermal impulse control system, and seal cycle / cool cycle indicator light. Optional features include a trim sealing pressure bar and wider seal widths. Contact us for more information and details on custom applications.

The Vertrod VH portable hand sealer is made in the USA and includes a 2-year limited warranty.

Specifications

Technical SpecsVertrod VH Hand Sealer
Seal Length8″, 12″, 18″, 24″
Seal Width1/8″
Electrical Requirement115V

Features

  • Single sided heater bar with opposing pressure bar
  • Locking vise grip style jaws
  • Time-based thermal impulse sealing system
  • Independent Seal and Cool timers from 0–3.75 seconds
  • Automatically activates when the jaws are closed

Options

  • Wider seal widths: 1/4″, 3/8″
  • Dual Seals (parallel): 2 x 1/8″
  • Bi-active jaws (top and bottom heated seal bars)
  • Jaw Selector Switch (Bi-Active or Top Heat)
  • Cold Cut Wire Trim
