Rollbag® Magnum Horizontal Fulfillment

Automatic Bagger for Unique Applications

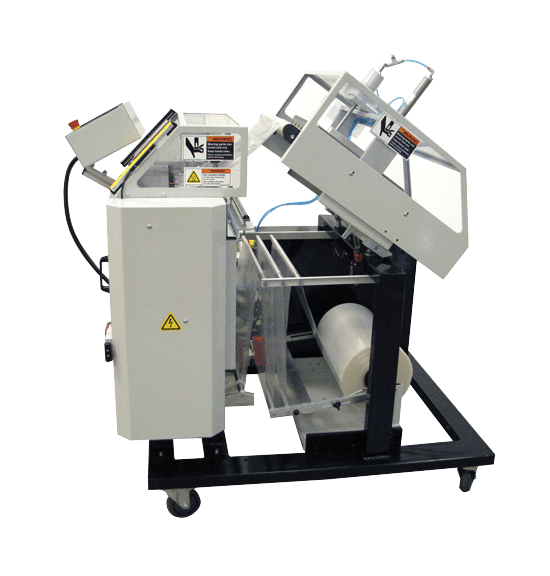

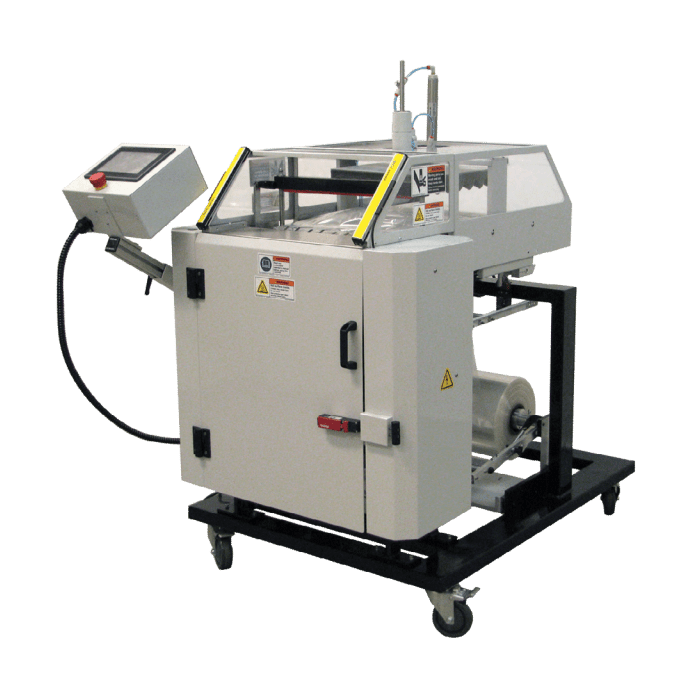

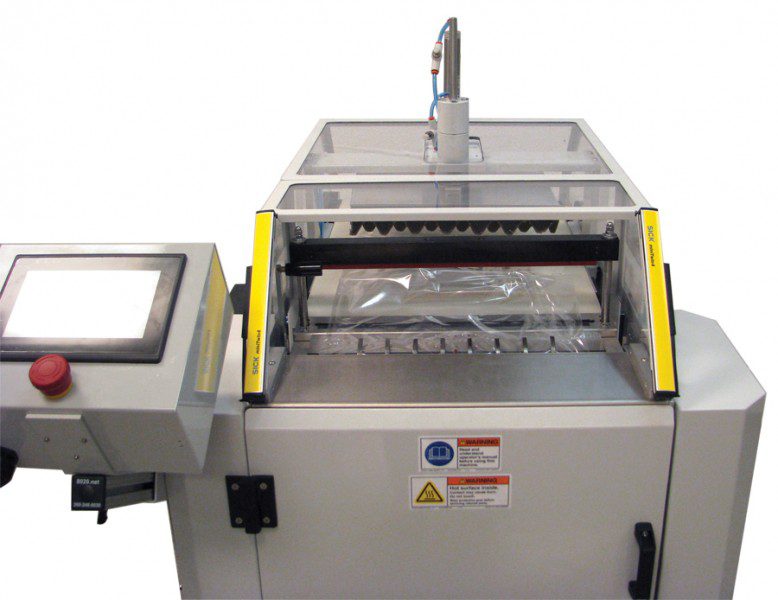

The Rollbag Magnum Horizontal Automatic Bagger is designed to meet the unique requirements of large bag packaging with a horizontal loading configuration. The Magnum Horizontal is ideal for long or bulky products or applications requiring special handling or orientation.

Custom Bag Sizes at the Push of a Button

  • The Rollbag Magnum Horizontal Automatic Bagger works with poly tubing as well as pre-opened bags on a roll.
  • Using poly tubing can provide significant material cost savings, as well as reduced material inventory costs.
  • Poly tubing also allows bag length to be changed at the push of a button, right-sizing the bag for the product.
  • This automatic bagger can package products at speeds up to 70 bags/min using pre-opened bags on a roll, and up to 40 bags/min using poly tubing.

Read More

Videos

Specifications

ModelMagnum Horizontal Mail Order Fulfillment Bagger
Speed (bags)up to 40/min
Speed (poly tubing)up to 20/min
Feed rateup to 40"/sec
Bag width2 - 13" (15" optional)
Bag length2-96"
Bag thickness1 - 5 mil
Electrical120V @ 20A
Air80 psi @ 5 CFM
OriginMade in USA
Warranty 1 year, extendable up to 5 years

Features

Operating Benefits

  • Works with poly tubing as well as pre-made poly mailers on a roll for maximum flexibility
  • Horizontal load configuration for improved packing ergonomics
  • Lower material and shipping costs when using poly tubing by making bags inline before they are filled and sealed
  • Wide color touchscreen is operator friendly and has clear readable prompts and alarms
  • Two foot long outfeed conveyor for conveying product to the next step in the fulfillment process
  • Large diameter rolls and variable bag length enables machine to package products of practically any length
  • Integrated label printer applicator ties into warehouse management system to print the shipping label directly on the outside of the bag

Set-Up Benefits

  • Store different bag length settings for quick job set-up
  • Stand with casters and a compact design provides portability
  • Quick roll change feature to facilitate easy and fast changeover

Maintenance Benefits

  • Designed to minimize preventative maintenance costs by using off-the-shelf components
  • Self-diagnostics ensure quick problem solving
  • Warranty extendable up to 5 years when exclusively using Rollbag brand material and labels

Safety Benefits

  • Low pressure closing with obstruction detection system for improved operator safety
  • Safety light curtains for added safety during loading (optional)
  • Designed to meet CE requirements

Options

Printing Options

  • TwinPrint dual sided label printer applicator to include the shipping information and packing slip on a single label

Product Loading Options

  • Easy Load Bag Opener – squares the bag open for loading as well as pulls the seal flat prior to sealing
  • 6.25″ Seal Bar Pass Through – 2.25″ wider pass through than the standard 4″

Sealing Options

  • 15″ Bag Width – for sealing bags up to 15″ wide
  • Articulating guide arms – assist in product loading
  • Longer exit conveyor – extend the take-away conveyor from the standard 2′ length
  • Extended loading area – extend the loading area to a custom length

Safety Options

  • Audible Warning System – when the PLC detects an error an audible alarms sounds and the machine stops
  • Dual Palm Buttons – two buttons that must be pressed simultaneously in order for the machine to cycle
  • Light Curtain – prevents the operation of the bagger when the optical detection field is obstructed

Other Options

  • Adjustable Hole Punch – pneumatic punch that puts a small hole in the bag, allowing for excess air to escape
  • End of Roll Detector – used to monitor when bags are in position and when the end of a roll has been reached
  • Bag Open Sensor – assures that when a bag is in the load position it is open and ready to accept product
