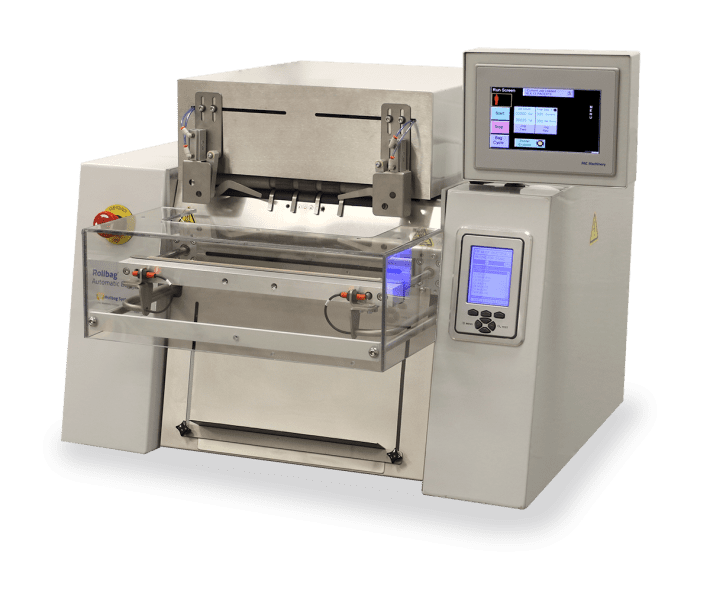

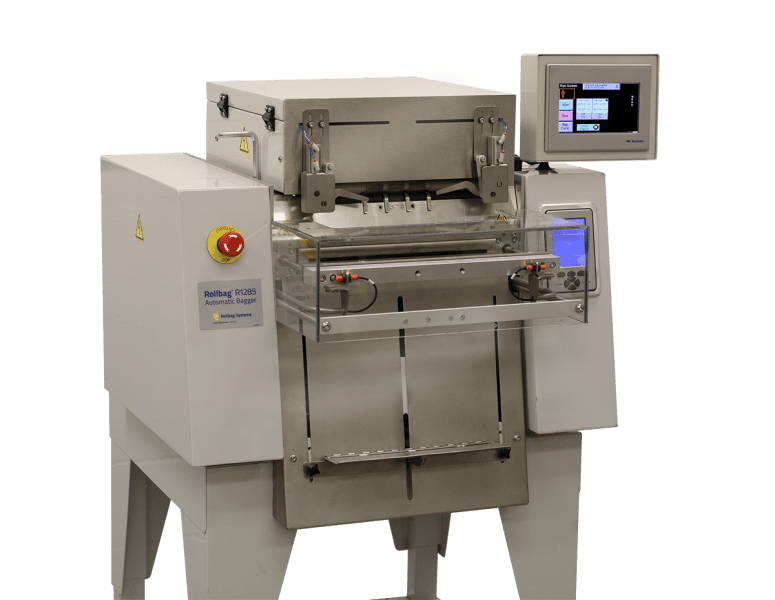

Rollbag® R1285 Auto Bagger

Order Fulfillment High Speed Printing and Automatic Packaging System

The Rollbag R1285 automatic bagger is the fastest tabletop poly mailer packaging system on the market for mail order fulfillment packaging.

Equipped with a reliable 4″ thermal transfer printer (203 dpi), the R1285 Velocity bagger is designed for “first-bag-out” printing—perfect for efficient mail order fulfillment packaging using poly mailers. The first-bag-out printing feature enables the packer to scan a packing list and print the corresponding shipping label on the next bag that is disbursed from the bagger. The thermal printer provides a broad range of connectivity to meet diverse application requirements and easily integrates into any warehouse management system.

High performance in a small footprint
The R1285 Velocity automatic bagger is designed to work with plain or custom printed pre-opened bags on a roll as well as coex poly mailers up to 12″ wide. Because the R1285 Velocity bagger uses compressed air, you get the same performance as larger floor standing mail order fulfillment bagging systems in a much smaller package. This results in an automatic bagger that is ideal for multi-shift use in industrial environments.

Read More

Videos

Specifications

ModelRollbag R1285 Velocity Bagger
SpeedUp to 60 bags per minute (dry cycle, no print)
Bag Width2" - 12"
Bag Length4" - 20"
Bag Thickness1 - 5mil
Seal Width1/8"
Printer4" integrated thermal transfer @ 203 dpi
Electrical Requirement120V, 7A, 50/60Hz
Air Requirement80psi @ 2 - 5CFM
Dimensions30"W x 30"D x 24"H
Weight85 lbs
Warranty1 year, extendable to 5 years when exclusively using Rollbag brand material
OriginMade in the USA

Features

Operating Benefits

  • 7” color touchscreen with clear readable prompts and alarms
  • Electric foot switch, photo-eye (optional), or fully automatic cycle start
  • Includes load shelf with bag support (up to 13” bag length)

Printing Benefits

  • High-resolution reliable printing performance for 24/7 operation
  • Large graphic display for quick navigation and printer notifications
  • Broad range of connectivity for use with applications and networks

Maintenance Benefits

  • Off the shelf modular components for easy replacement
  • Self-diagnostics ensure quick problem solving
  • Reliable components designed for multi-shift production

Set-Up Benefits

  • Utilizes Rollbag pre-opened bags-on-a-roll for quick bag size changes and easy set-up
  • PLC with 20 job storage, batch counters, packaging statistics & temperature control
  • Built-in interface ports integrate counters, scales, and robotics

Safety Benefits

  • Low-pressure seal bar closing with obstruction detection
  • Dual palm buttons for added operator safety (optional)

Options

Air Expeller/ Bag Deflator
This option mounts to the pressure bar and compresses air out of the bag as it travels inward toward the machine just prior to the sealing process.
Additional Parts Funnels
Wide variety of standard and custom funnels to assist product handling.
Articulating Bag Support
A pneumatically operated shelf that is used to support the bottom and back of the bag during the loading process. The shelf then tips down and out of the way once the bag has been sealed.
Bag Spreader/ Seal Flatteners
Pneumatically operated opposing fingers that pull each side of the bag taught above the seal area to flatten the bag seal area; thus, decreasing the possibility of wrinkles in the seal area and increasing seal integrity.
Bag Support
Fixed shelf to support bag during the loading of heavy products.
Dual Start Buttons (Anti-Tie Down)
Two optical no touch” buttons must be passed through simultaneously to initiate the cycle operation of the bagger. If both sensors are not passed through at the same time, the bagger will not cycle ensuring that fingers or hands cannot be in the seal area. Recommended for hand load applications where funnels are not used.
Ergonomic Start Switch
A pass-through switch used in place of a foot pedal to cycle the machine.
Kit/ Counting Conveyors
To help with kit packaging and/or product counting operations.
Tabletop Console Stand
Mechanically adjustable stand for all tabletop machines.
220 Volt Option
Is available in 220V, 50/60 Hz.

Additional Options

Conveyor/ Feeder Ready Cabling
The pre-wired cables allow you to connect to the DC controls of in-feed devices.
