Rollbag® R3200 & R3200XL Fulfillment

Increase Efficiency and Lower Material Costs with this Innovative Auto Bagger

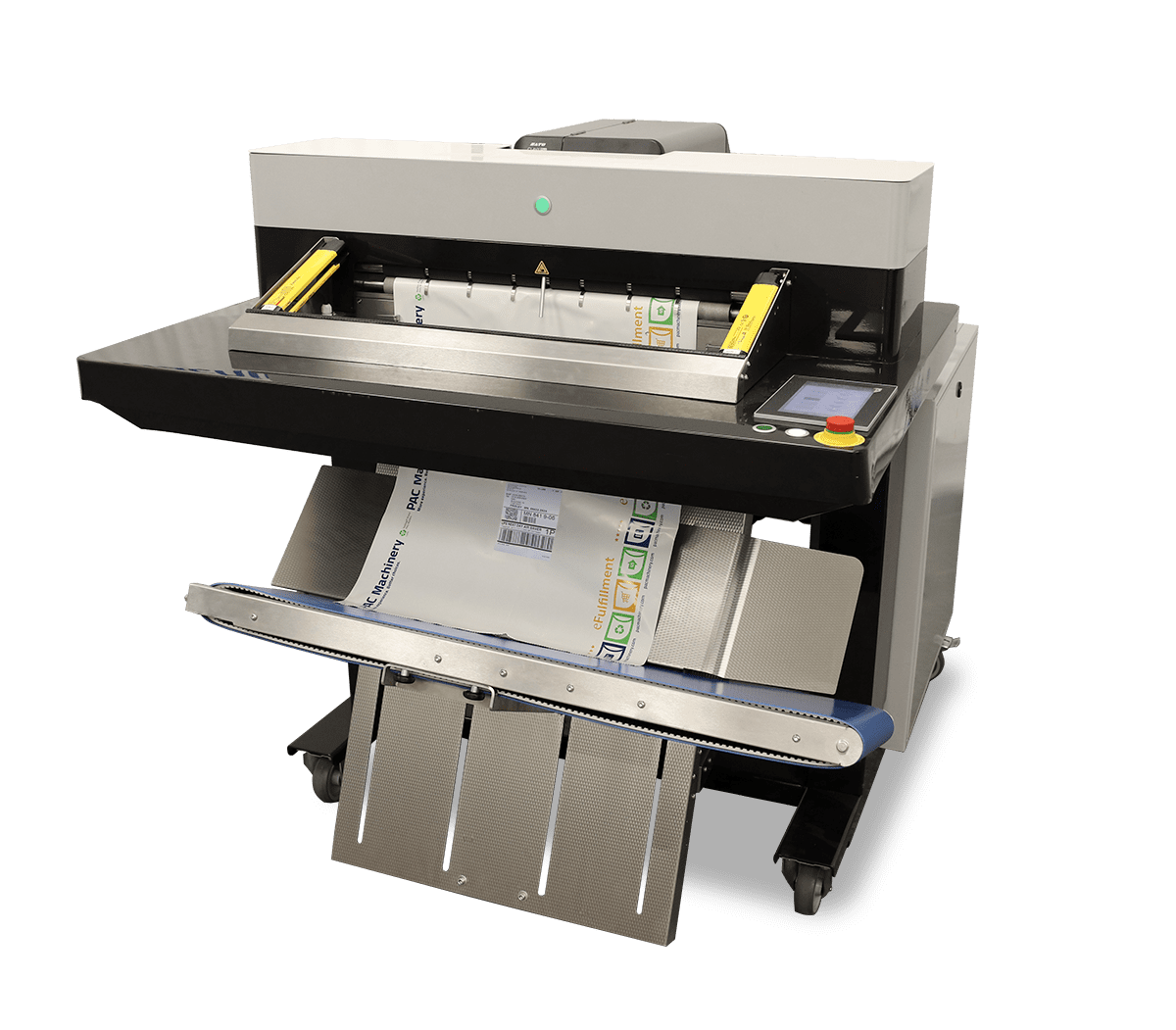

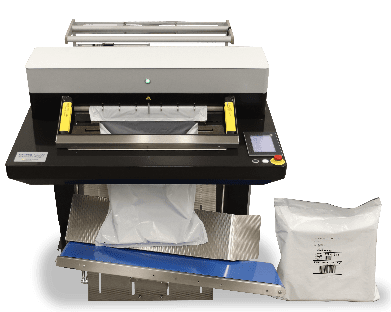

The Rollbag R3200 Fulfillment automatic bagger is an elite mail order fulfillment bagging system. This automatic bagger works with poly tubing as well as bags on a roll. The benefits of poly tubing include lower material costs as well as right-sizing the bag to the product by changing bag length on the fly, lowering shipping costs, and reducing material usage.

The Rollbag R3200 Fulfillment bagger is equipped with a label printer applicator, to create a fully integrated batch-less order fulfillment bagging solution. A thermal transfer printer option is also available, allowing you to print directly on the bag material. Furthermore, this bagger can be equipped with a TwinPrint® dual-sided label printer applicator to include the shipping information and packing slip on a single label.

Read More



ModelRollbag R3200 FulfillmentRollbag R3200XL Fulfillment
Speed (bags)up to 20/minup to 20/min
Speed (poly tubing)up to 10/min
up to 10/min
Feed rateup to 40”/secup to 40”/sec
Max bag width16”22"
Max bag length24" 36"
Bag thickness1–5 mil1–5 mil
Electrical120V @ 20A120V @ 20A
Air80psi @ 5CFM80psi @ 7.5CFM
Warranty1 year,
extendable up to 5 years
1 year,
extendable up to 5 years
(W x D x H)
47” x 44” x 48”56" x 60" x 48"


Operating Benefits

  • Works with poly tubing as well as pre-opened bags on a roll
  • Lower material cost when using poly tubing, by making bags inline before they are filled and sealed
  • Color touchscreen is operator friendly and has clear readable prompts and alarms
  • Integrated package discharge conveyor allowing bags to be transported to the right (standard), left (optional), or back underneath the machine (optional).
  • Large diameter rolls and variable bag length enables machine to package products of practically any length

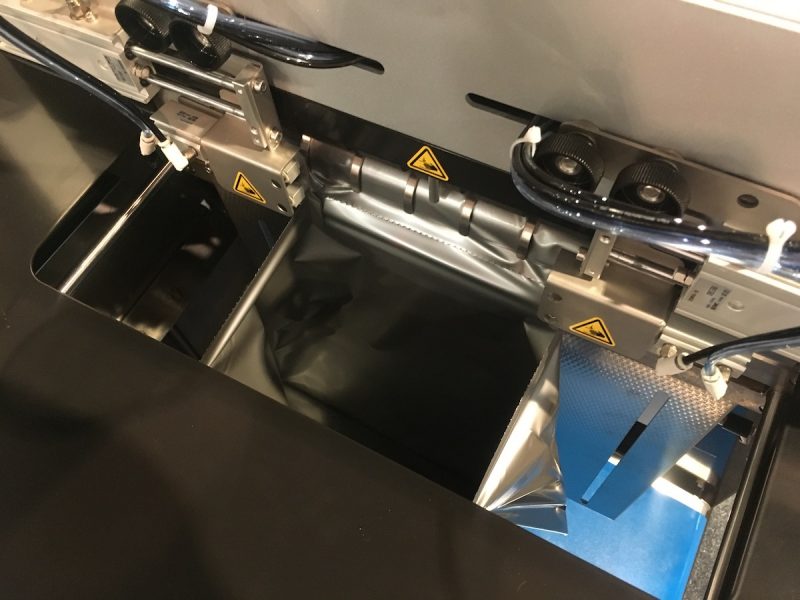

  • Easy load bag opener squares the bag up for ease of loading and supporting heavier products (optional on the R3200 Fulfillment)
  • Bag open sensor detects that the bag is in position and ready to accept product
  • Integrated label printer applicator ties into warehouse management system to print shipping label directly on the outside of the bag

Set-Up Benefits

  • Interface ports to integrate robotics and other feeding systems
  • Poly tubing allows changes to bag length on the fly, manually, or automatically via integration to WMS
  • Store different bag length settings for quick job set-up
  • Stand with casters and a compact design provides portability
  • Quick roll change to facilitate easy and fast changeover

 Maintenance Benefits

  • Designed to minimize preventative maintenance costs by using off-the-shelf components
  • Self-diagnostics ensure quick problem solving
  • Label applicator uses direct thermal printing, eliminating the need for costly thermal transfer printer ribbon
  • Warranty extendable up to 5 years when exclusively using Rollbag brand material and labels

 Safety Benefits

  • Low-pressure closing with obstruction detection system for improved operator safety
  • A Light Curtain prevents the operation of the bagger when the optical detection field is obstructed. Can also be used to trigger the start of the cycle, once the obstruction is no longer detected
  • Designed to meet CE requirements for improved safety and troubleshooting


Print Registration
For use with pre-printed poly tubing that uses registered print film.
Side-Mount Label Printer Applicator
The side-mount label printer applicator prints and applies a label on the bag right before the operator places product into the bag. This configuration allows for a shorter bag length (as small as 10”) to be used with first bag out printing. It also speeds up the packaging process slightly, as the processing and printing of the label and the bag feeding happen simultaneously. This option is only available on systems that have the bag maker assembly.
Dual Touch Start Switches
Two switches that must be touched simultaneously in order for the machine to cycle.
Light Curtain
Prevents the operation of the bagger when the optical detection field is obstructed. (standard on the R3200XL).
Foot Switch
Instead of using start button.
Adjustable Hole Punch
Pneumatic punch that puts a small perforated hole in the bag, allowing for excess air to escape.
End of Roll Detector
Used to monitor when the end of a roll has been reached. Tall Frame – bag lengths over 24”.

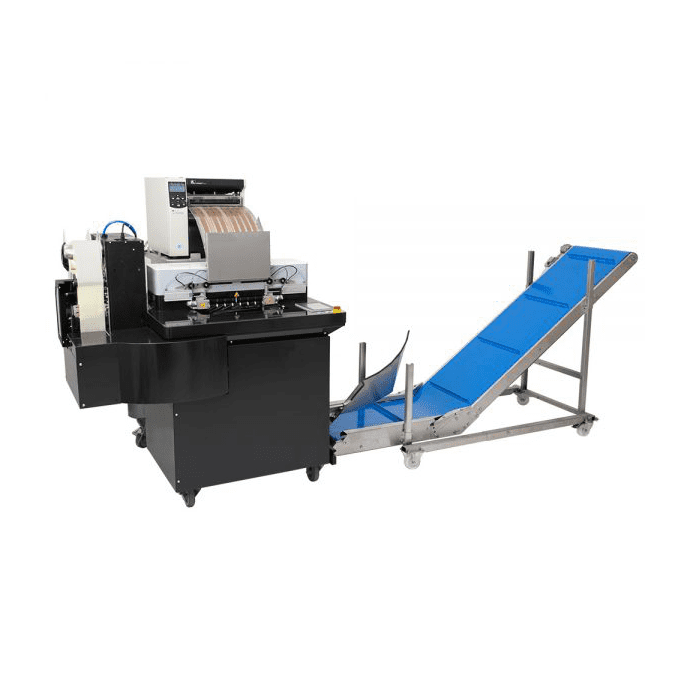

Incline Outfeed Conveyor
Transports bags from the bagger up to table height. Every cycle, the conveyor indexes one step. Consists of a horizontal section where the bag is dropped and an inclined section which has a height of approximately 35”. Height and angle of inclined section are adjustable. Conveyor is stainless, with casters, in 10″ & 16″ widths, place in front of bagger, (pictured) or to side.
Right to Left Package Outfeed
The R3200's Bag Support Outfeed Conveyor can be configured to discharge packages from Right to Left. Standard machine configuration is offered in Left to Right but we can flip it and discharge the other way for your specification. This must be known at the beginning of the order.
Dual-sided label printer applicator allows inclusion of shipping information and packing slip on a single label.
