Rollbag® R3200 HS Med

Products > Validatable Medical Sealers > Rollbag® R3200 HS Med

Medical Automatic Bagger

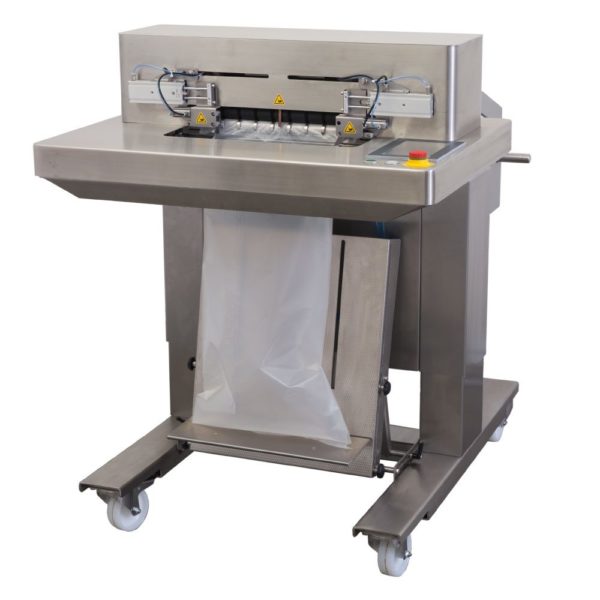

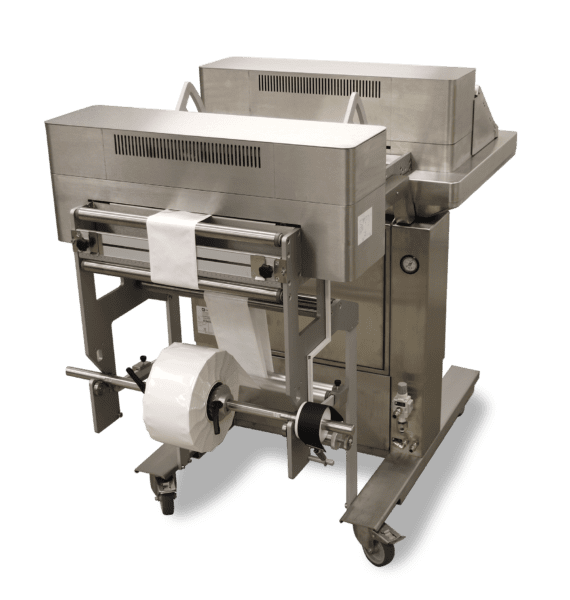

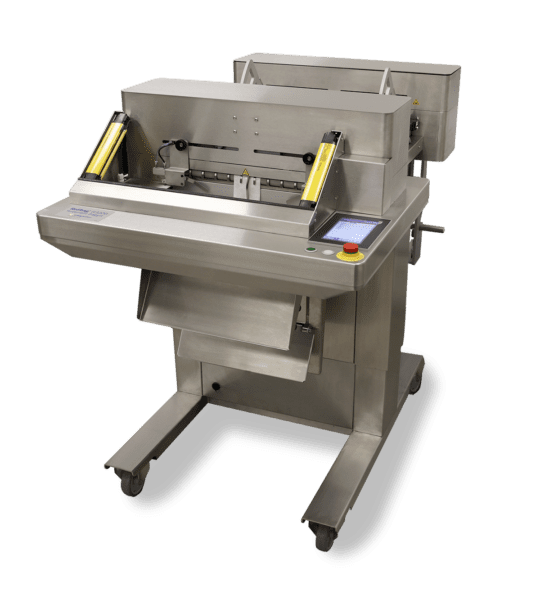

The Rollbag R3200 HS Med is a validatable pouching system for automatic packaging. The Rollbag R3200 HS Med automatic bagger is designed for cleanroom use and can package products at speeds of up to 40 bags per minute using Tyvek^® or medical-grade paper rollstock tubing. The Rollbag R3200 HS Med automates the process of labeling, filling, and sealing medical products that are packaged in Tyvek pouches with a chevron seal and need to be sterilized as well as metalized polyester foil pouches.

The Rollbag R3200 HS Med features a 1-year limited warranty.

_{Tyvek® is a registered trademark of E. I. du Pont de Nemours}

Videos

Rollbag R3200 HS Med High Speed Medical Bagger

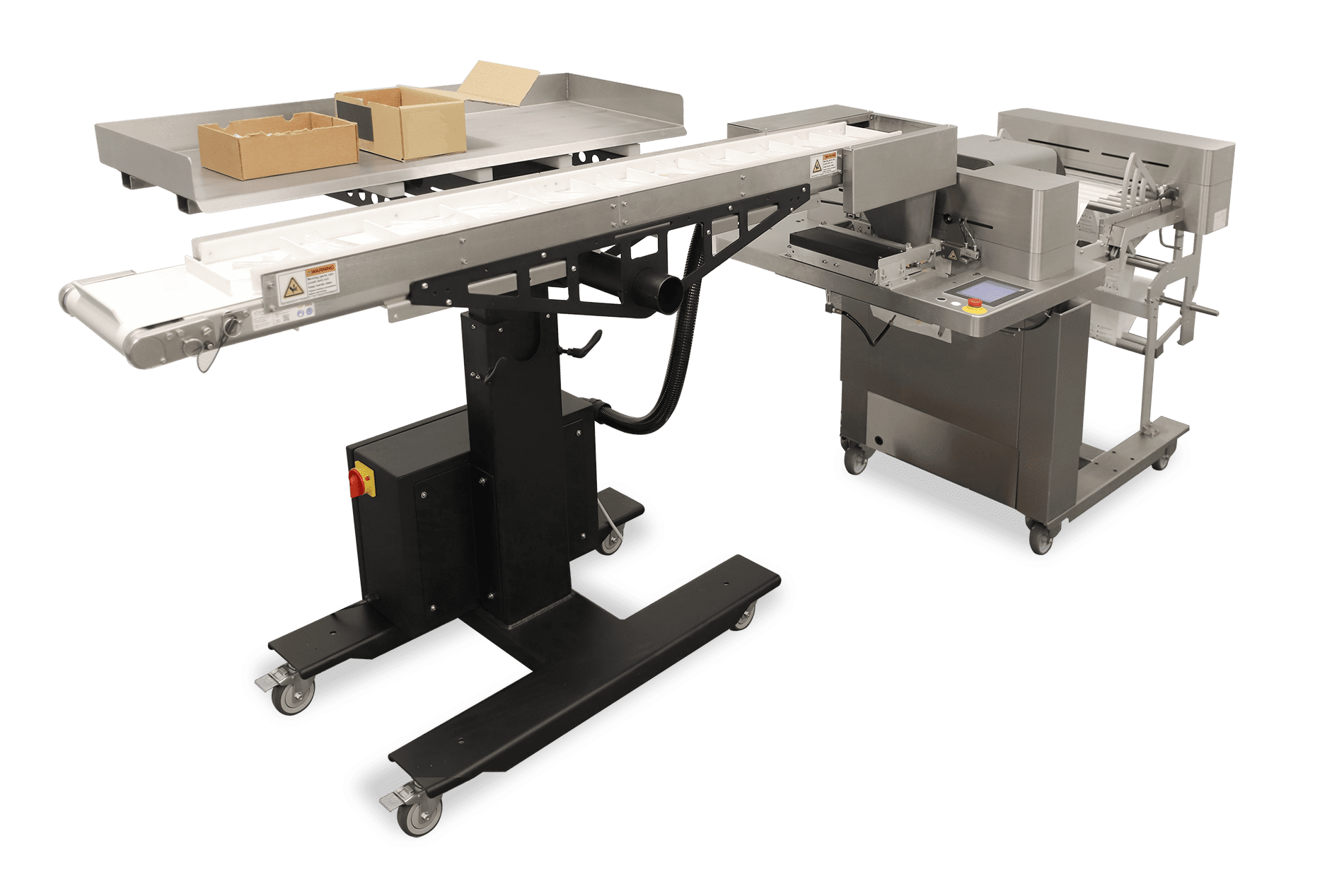

R3200 HS Med with Kit Conveyor

Covid swab tests with R3200 HS Med

R3200 Automatic bagger -medical products bags

COVID-19 Test Swab Packaging - Rollbag R3200 HS Med Automatic Bagger

Specifications

Model	Rollbag R3200 HS Med Automatic Bagger
Speed	Up to 40 bags/min (dependent on bag size, thickness, & product)
Bag Width	2" - 14"
Bag Length	3" - 32"
Bag Thickness	1 - 5mil
Seal Bar Opening	Up to 6"
Electrical Requirement	120V @ 15A
Air Requirement	80psi @ 5CFM
Warranty	1 year limited warranty, extendable up to 5 years
Dimensions (W x D x H)	34" x 52" x 44"

Features

Operating Benefits

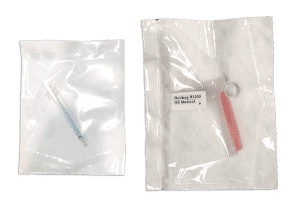

Chevron Bagmaker Assembly—The bagmaker assembly is equipped with a 5/16” wide Chevron seal. With this feature rollstock up to 14″ wide can be used.

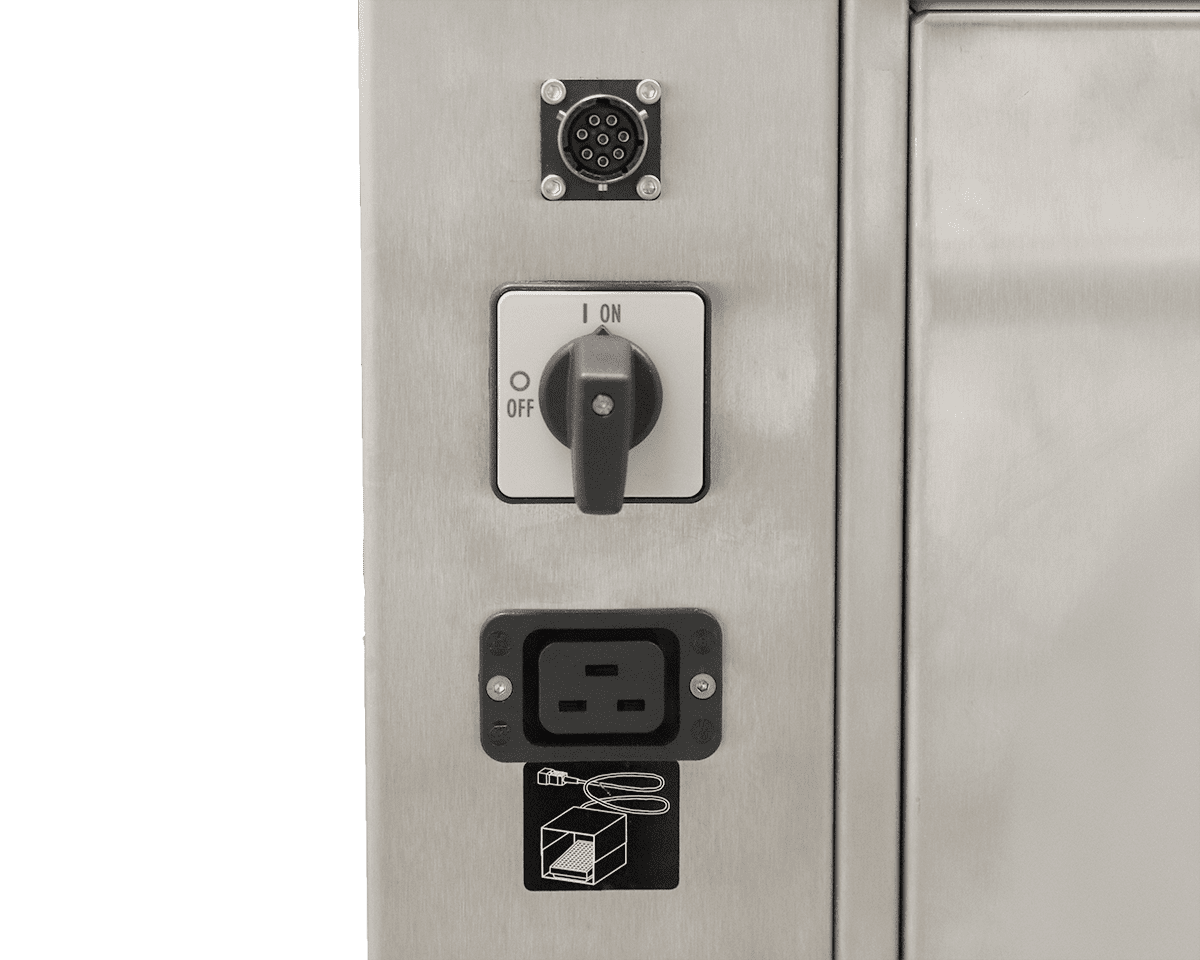

Interface Port—Allows the bagger to communicate to external devices. When integrating the bagger, it can be set to either master or slave mode. This option includes the integration cable.
Seal Flattener Fingers—The seal flattener fingers go into the bag and stretch it taught prior to sealing, to minimize wrinkles in the seal area. This feature is ideal for bags that are filled with heavy products or ones that tend to pull on one size of the bag when it is filled.

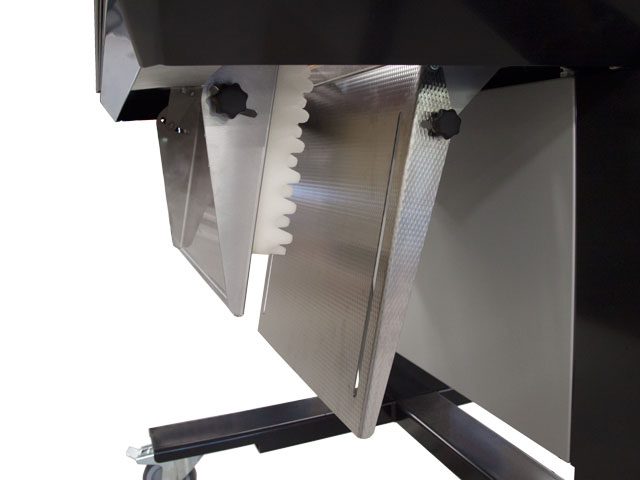

Air Expeller—The air expeller is a plate with a foam pad. This device presses against the bag prior to sealing, removing excess air.

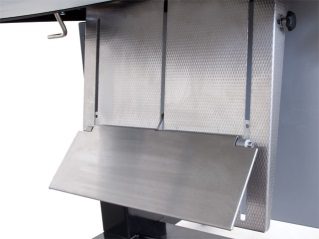

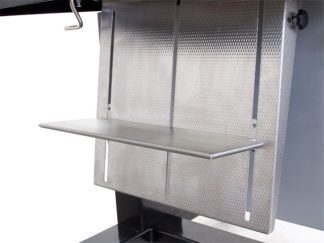

Articulating Bag Support—This option supports the bag during the sealing process. At the end of the cycle the load shelf tilts down at an angle, dispensing the bag to the next step of the packaging operation. The maximum bag length with the standard articulating bag support is 18″.

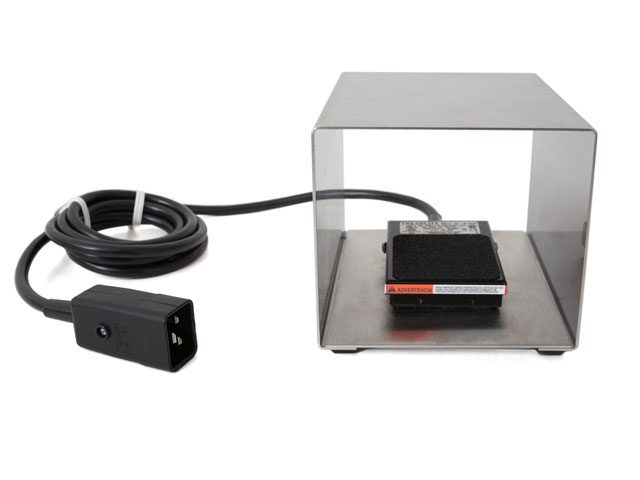

Foot Switch—Instead of using the start button, the cycle is activated via a foot switch. With this option the operator can have both hands free during filling of the bag.

Set-Up Benefits

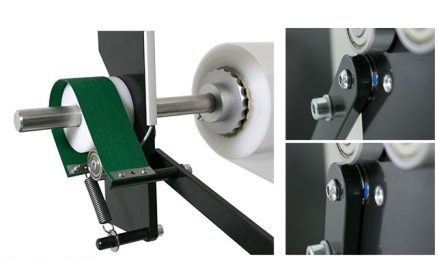

End of Roll Sensor—This sensor detects when the roll of bags is nearly empty and stops the bagger in order to allow changeover to a new roll of film.

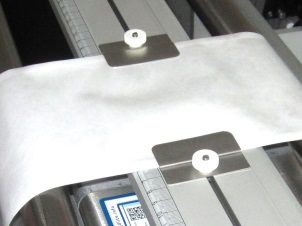

Film Guides—The film guides assure that the packaging material goes straight into the bagger by keeping the film in a fixed position. This option is ideal for narrow bags and poly tubing.

Safety Benefits

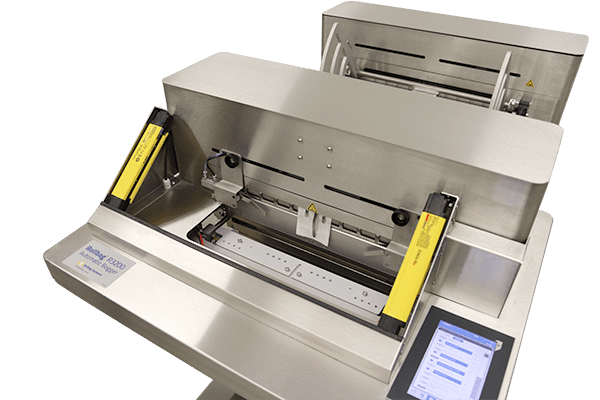

Light Curtain—Prevents the operation of the bagger when the optical detection field is obstructed. Can also be used to trigger the start of the cycle, once the obstruction is no longer detected.

Maintenance Benefits

Stainless Steel Frame—This feature is for medical environments that require a stainless steel frame for cleaning and hygiene purposes.

Options

Thermal Transfer Printer

If you need to print large text, images, or barcodes on your bag, then a thermal transfer printer is the right solution. Our thermal transfer printer is available in a 4″ width.

Label Printer Applicator

Integrated label printer applicator ties into warehouse management system to print and apply a label directly on the outside of the bag.

Bag Support Outfeed Conveyor

Instead of a load shelf to support the bag, it is possible to use a bag support outfeed conveyor. This conveyor supports and lifts the bags during sealing, after which the sealed bags are transported to the left or right side of the bagger. This conveyor allows the operator to comfortably stand or sit in front of the bagger during packaging.

Adjustable Hole Punch

A pneumatic punch that puts a small perforated hole (flutter vent) in the bag, allowing for excess air to escape.

Hang Hole

Pneumatic punch that puts a round hang hole centered in the bag, below the seal area, to hang it on a rack.

Incline Outfeed Conveyor

The incline outfeed conveyor transports bags from the bagger up to table height. With every cycle of the bagger, the conveyor indexes one step. It consists of a horizontal section where the bag is dropped and an inclined section. The height and angle of the inclined section are adjustable. The conveyor is made of stainless steel and equipped with casters. The conveyor can be put in front of the bagger, like in the picture, or to the side of the machine.

ADDITIONAL OPTIONS

Spare Parts Kit
This kit includes basic consumable and replacement parts for the machine. These parts include PTFE seal bar cover, pressure rubber, and perforation knife.

Resources

Rollbag Bags on a Roll Brochure

Rollbag Baggers Brochure

Industries

Industrial, Medical, Beauty Product, Fruits, Nuts, Vegetables, Meat, Cheese, Poultry, Fish, Pet, Automotive Parts, Fabric and Textile, Pharmaceutical, Medical Devices, Healthcare Item, Frozen Foods, Cannabis, Dental Products, Toy and Game, Printing, Paper, Forms, Bakery, Electronics
