Rollbag® R3200 & R3200XL Fulfillment Paper

Products > Rollbag® Baggers > Fulfillment Automatic Baggers > Rollbag® R3200 & R3200XL Fulfillment Paper

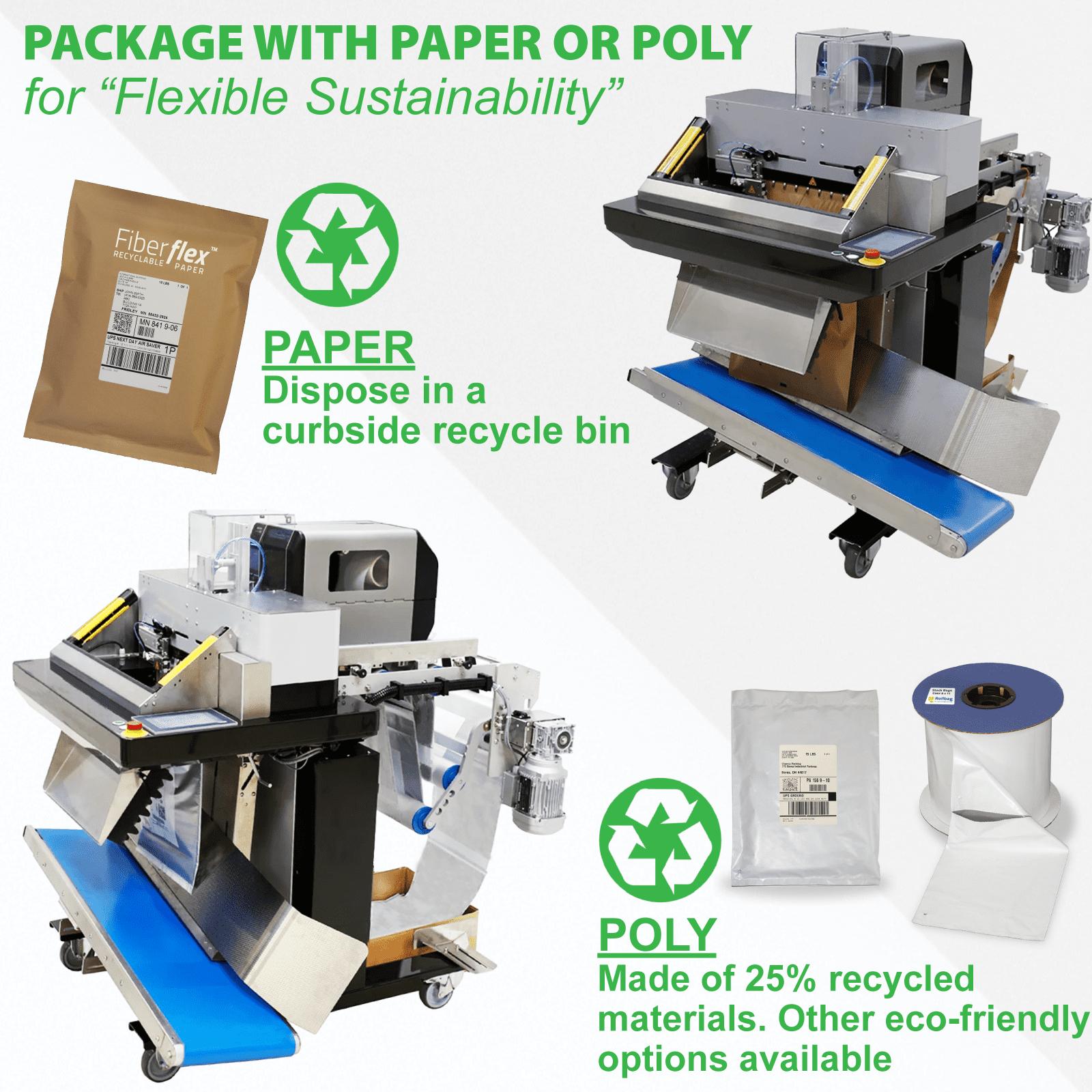

Bag with Paper or Poly Mailers with this Fulfillment Auto Bagger!

Future-proof your packaging equipment investment AND be prepared for potential future regulations on plastic in packaging with a NEW revolutionary automatic bagger for fulfillment from PAC Machinery.

The next level of eco-friendlier packaging is here! Introducing PAC Machinery’s latest innovation – the Rollbag^® R3200 & 3200XL Fulfillment Paper Automatic Bagger. With a focus on the fast-paced shift to sustainable packaging options and helping companies reduce plastic in packaging, the Rollbag R3200 & 3200XL Fulfillment Paper Automatic Baggers offer the flexibility to choose between PAC’s patented Fiberflex® curbside recyclable paper mailers and poly mailers made with 25% recycled material with other options available produced of up to 100% recycled materials.

The user simply needs to select a different recipe in the HMI and make the regular adjustments required when changing over bag sizes.

Rollbag R785 or R3200 Auto Bagger - Storing, and Uploading a Backup Recipe from a USB flash drive

Rollbag R3200XL Fulfillment Paper Auto Bagger - Packaging in Paper Mailers and Poly Mailers

Rollbag R785 or R3200 Auto Bagger - Uploading Recipes from a USB flash drive

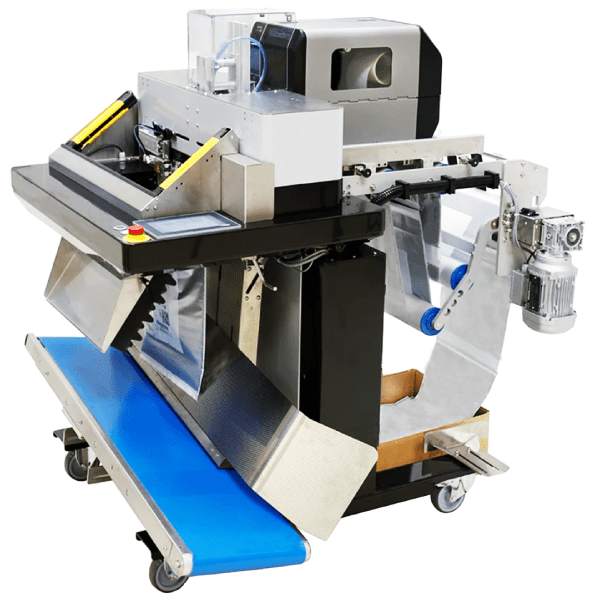

Rollbag R3200 Fulfillment Auto Bagger - Shown Packaging in Paper Mailers and Poly Mailers

Rollbag® R3200 Fulfillment—Fiberflex® paper mailers

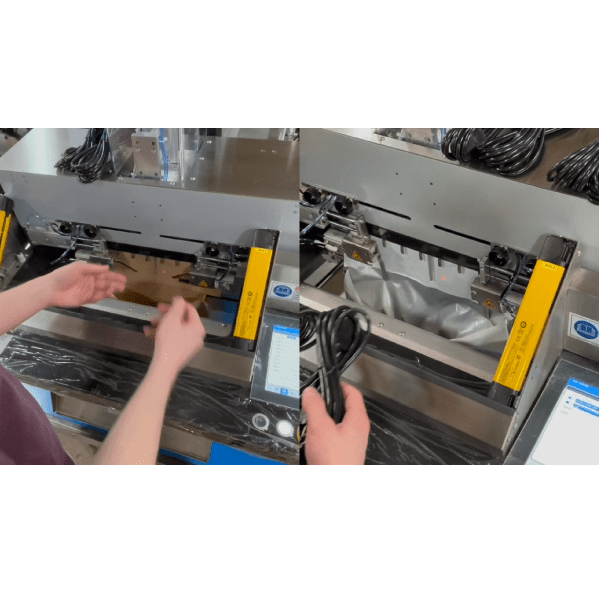

Rollbag R3200 Fulfillment Auto Bagger - Fiberflex Pre-Opened Paper Mailers

Rollbag R3200 Fulfillment - Fiberflex Paper Mailers

Specifications

Model	Rollbag R3200 Fulfillment Paper	Rollbag R3200XL Fulfillment Paper
Speed (mailer bags)	up to 10/min	up to 10/min
Bag Material	Paper or Poly	Paper or Poly
Max bag width	16”	22"
Max bag length	24"	36"
Electrical	120V @ 20A	120V @ 20A
Air	80psi @ 5CFM	80psi @ 7.5CFM
Warranty	1 year, extendable up to 5 years	1 year, extendable up to 5 years
Dimensions (W x D x H)	34” x 44” x 48”	48" x 60" x 48"

Features

Operating Benefits

Works with pre-opened bags on a roll or fan folded in a box
Color touchscreen is operator friendly and has clear readable prompts and alarms
Integrated package discharge conveyor allowing bags to be transported to the right (standard), left (optional), or back underneath the machine (optional).
Easy load bag opener squares the bag up for ease of loading and supporting heavier products (optional on the R3200 Fulfillment)
Bag open sensor detects that the bag is in position and ready to accept product
Integrated label printer applicator ties into warehouse management system to print shipping label directly on the outside of the bag

Set-Up Benefits

Interface ports to integrate robotics and other feeding systems
Store different bag length settings for quick job set-up
Stand with casters and a compact design provides portability
Quick roll change to facilitate easy and fast changeover

Maintenance Benefits

Designed to minimize preventative maintenance costs by using off-the-shelf components
Self-diagnostics ensure quick problem solving
Label applicator uses direct thermal printing, eliminating the need for costly thermal transfer printer ribbon
Warranty extendable up to 5 years when exclusively using Rollbag brand material and labels

Safety Benefits

Low-pressure closing with obstruction detection system for improved operator safety
A Light Curtain prevents the operation of the bagger when the optical detection field is obstructed. Can also be used to trigger the start of the cycle, once the obstruction is no longer detected
Designed to meet CE requirements for improved safety and troubleshooting

Options

Dual Touch Start Switches

Two switches that must be touched simultaneously in order for the machine to cycle.

Light Curtain

Prevents the operation of the bagger when the optical detection field is obstructed. (standard on the R3200XL).

Foot Switch

Instead of using start button.

Adjustable Hole Punch

Pneumatic punch that puts a small perforated hole in the bag, allowing for excess air to escape.

End of Roll Detector

Used to monitor when the end of a roll has been reached. Tall Frame – bag lengths over 24”.

Incline Outfeed Conveyor

Transports bags from the bagger up to table height. Every cycle, the conveyor indexes one step. Consists of a horizontal section where the bag is dropped and an inclined section which has a height of approximately 35”. Height and angle of inclined section are adjustable. Conveyor is stainless, with casters, in 10″ & 16″ widths, place in front of bagger, (pictured) or to side.

Right to Left Package Outfeed

The R3200's Bag Support Outfeed Conveyor can be configured to discharge packages from Right to Left. Standard machine configuration is offered in Left to Right but we can flip it and discharge the other way for your specification. This must be known at the beginning of the order.
